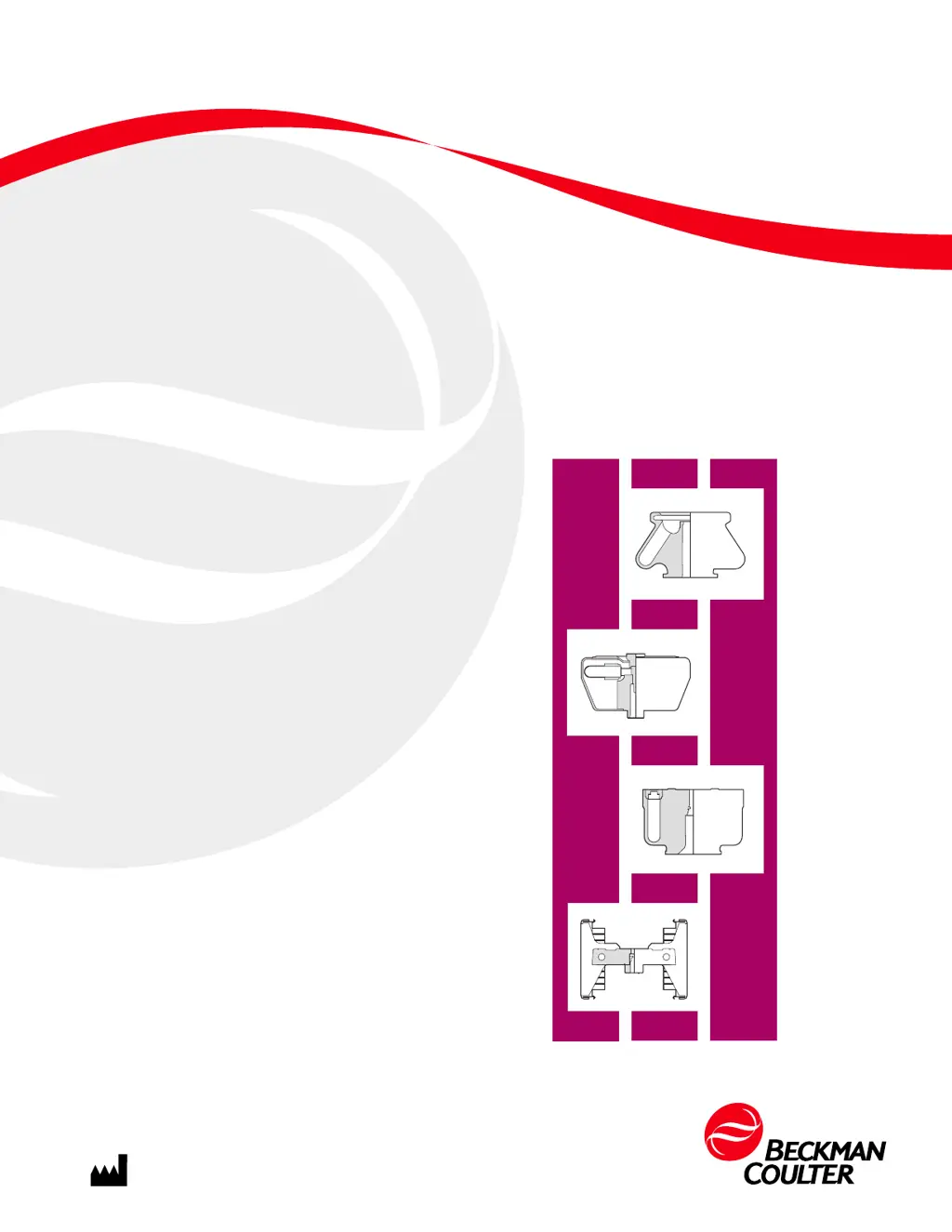

PN JR-IM-10AG

October 2014

Instructions For Use

Rotors and Tubes

For Beckman Coulter

J2, J6, and Avanti J Series Centrifuges

Beckman Coulter, Inc.

250 S. Kraemer Blvd.

Brea, CA 92821 U.S.A.

Table of Contents

Questions and Answers:

M
Matthew HendrixAug 17, 2025
What to do if my Beckman Coulter rotor lid is hard to remove?
- J
  Judy MccannAug 17, 2025
  If you're having trouble removing the rotor lid, canister cover, or bucket cover from your Beckman Coulter equipment after centrifugation, it could be due to a vacuum buildup inside the container. Try lifting the vent plug on buckets or canister covers with vents to relieve the vacuum. Alternatively, the threads may be contaminated with dirt, dried lubricant, or metal particles, or they may be insufficiently lubricated. Routinely clean metal threads with a diluted solution of Solution 555 (10 parts water to 1 part detergent), and then lubricate them with Spinkote.
C
Charles RamirezAug 20, 2025
Why is my Beckman Coulter bottle leaking (bottles with cap assemblies)?
- J
  Jill BlackAug 20, 2025
  Leakage in bottles with cap assemblies in Beckman Coulter equipment can occur due to: * Moisture or lubrication on the cap or sealing surface. Ensure the O-ring, plug, and bottle lip are dry and free of lubrication before use. * A damaged or defective O-ring or gasket. Replace the O-ring or gasket. * Insufficiently tightened cap. Tighten the cap securely. * An uneven sealing surface on the bottle. Replace the bottle. * Overfilled tube. If using threaded caps without inserts or O-rings, keep the meniscus lower to prevent leakage.
T
Timothy ParkerAug 22, 2025
What to do if adapters stick in Beckman Coulter buckets?
- M
  Molly SmithAug 22, 2025
  To prevent adapters from sticking in buckets after centrifugation in your Beckman Coulter equipment, apply a thin film of powder, such as talcum powder, to the tube adapter rubber bases after cleaning or as required.
M
Megan BrownAug 25, 2025
How to prevent Beckman Coulter tube leakage?
- H
  Heidi JonesAug 26, 2025
  To prevent tube leakage in your Beckman Coulter equipment, ensure that caps are properly seated on tubes and fully tightened. Also, make sure all cap components are thoroughly dry before assembly.
K
Kathy Wilson MDAug 27, 2025
What to do if Beckman Coulter Quick-Seal tubes are leaking?
- R
  Rachael HarrisonAug 27, 2025
  If Quick-Seal tubes are leaking in your Beckman Coulter equipment, it's likely due to improper sealing. After heat-sealing, gently squeeze the tube to test the seal for leaks. If the tube leaks, reseal it.
J
Jason KingAug 30, 2025
Why is my Beckman Coulter bottle leaking (uncapped bottles)?
- M
  Megan CoxAug 30, 2025
  If an uncapped bottle is leaking in your Beckman Coulter equipment, it is likely because the bottle is too full. The meniscus must be kept lower to prevent leakage.
M
Mr. Nicholas MartinezSep 1, 2025
What to do if Beckman Coulter tubes with snap-on caps are leaking?
- P
  Penny PalmerSep 1, 2025
  If tubes with snap-on caps are leaking in your Beckman Coulter equipment, ensure the tube is not too full; the meniscus must be kept lower to prevent leakage.
R
Robert HarrisSep 6, 2025
Why are my Beckman Coulter tubes collapsing?
- Q
  qthompsonSep 6, 2025
  Tube collapse in Beckman Coulter equipment can occur due to several reasons: * Insufficient thinwall tube volume: The meniscus should be 2 to 3 mm below the tube top to provide adequate tube wall support. * Moisture: Ensure that tubes and tube cavities or buckets are dry before inserting the tubes, as moisture can cause the tube to float and collapse. * Reagent incompatibility: Refer to Chemical Resistances for chemical compatibilities of the tube material and chemicals used. * Excessive speed: Refer to the applicable rotor manual for maximum speeds to ensure tubes are not run above their rated speed.
H
Holly SalazarSep 9, 2025
Why are my Beckman Coulter tubes cracking?
- S
  sierra72Sep 9, 2025
  Cracking in Beckman Coulter tubes can be attributed to: * Low temperature: Tubes may crack or become brittle if used below their lower temperature limit. Before using tubes at other than stated temperature limits, evaluate them under centrifugation conditions. * Aging: Tubes may become brittle with age and use. Dispose of brittle or cracked tubes.
T
Travis BakerSep 14, 2025
What is the reason for leakage of uncapped tubes in Beckman Coulter equipment?
- R
  Robert CainSep 14, 2025
  If uncapped tubes are leaking in your Beckman Coulter equipment, it's likely because the tube volume exceeds the maximum uncapped volume.

Beckman Coulter J6-MC Specifications

General

Maximum Speed	6, 000 rpm
Type	Centrifuge
Capacity	Up to 6 x 1 L
Temperature Range	-10°C to +40°C
Dimensions	84 cm x 84 cm x 71 cm
Weight	250 kg
Timer	Up to 99 hours and 59 minutes
Refrigeration	CFC-free refrigeration system
Drive	Direct drive
Power Requirements	220V, 50/60 Hz

Summary

Safety Notice

Safety Alerts and Symbols

Explains warning, caution, important, and note symbols, and RoHS notice.

Hazardous Material Safety

Guidelines for chemical, biological, and mechanical safety procedures.

CHAPTER 1 Rotors

Rotor Selection and Applications

Guidance on choosing rotors for specific separation types.

Rotor Operation and Specifications

Covers balance, speed limits, temperature compensation, and general operation.

CHAPTER 2 Labware Selection

Labware Selection Criteria

Factors for choosing appropriate labware.

CHAPTER 3 Labware Usage

Filling, Sealing, and Capping

Instructions for filling, sealing, and capping tubes and plates.

Sample Recovery

CHAPTER 4 Fixed-Angle Rotors

CHAPTER 5 Swinging-Bucket Rotors

Rotor Preparation and Operation

Steps for preparing, loading, and operating swinging-bucket rotors.

Symmetric and Balanced Loading

CHAPTER 6 Vertical-Tube and Rack-Type Rotors

Rotor Preparation and Operation

CHAPTER 7 Care and Maintenance

Rotor Care and Cleaning

Decontamination and Sterilization

APPENDIX A Chemical Resistances

Chemical Resistance Data

J Series Rotor Warranty

Warranty Information
