7.2 Introducton to exhaust hose nstallaton
1
2
3
(clockwise)
(Aligning the bayonet)
(Insert down)
Fig. 9
Temporary nstallaton

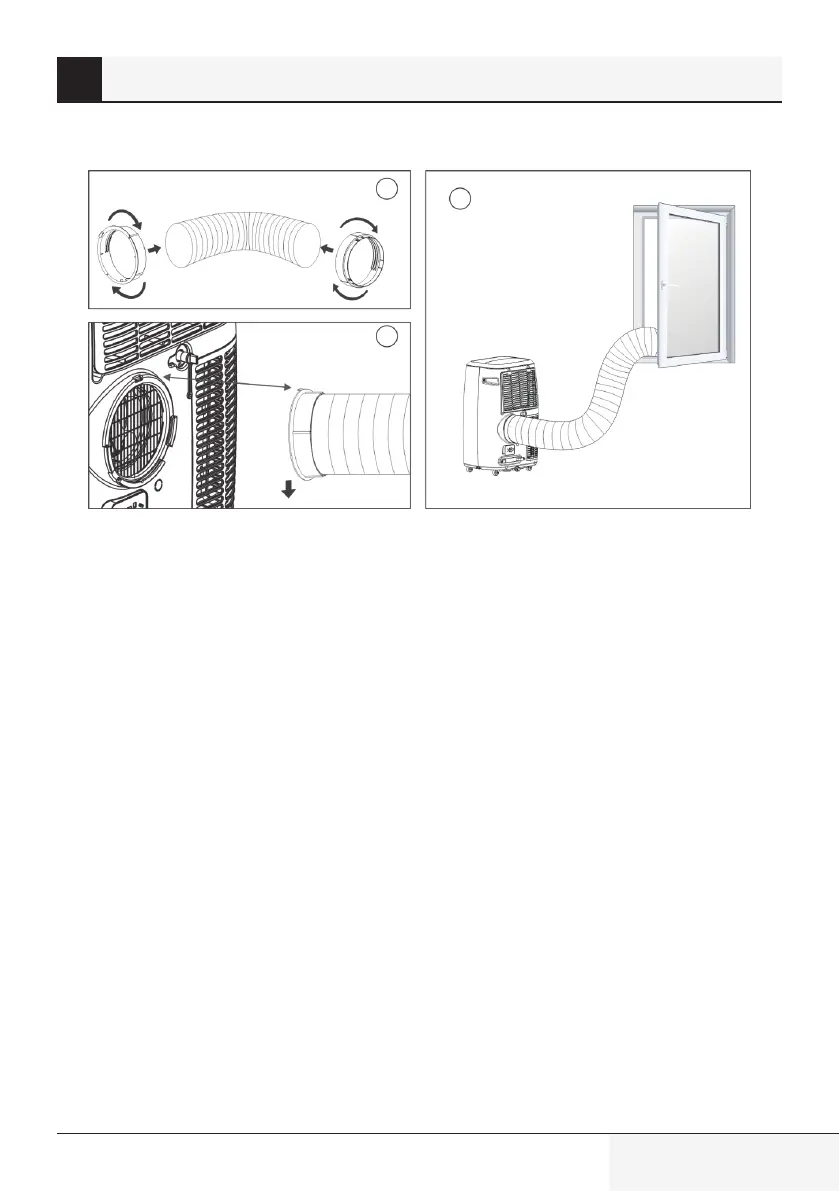

1. Twist both ends of the exhaust hose into the square fixing clip and the flat fixing clip.
2. Insert the square fixing clip into openings at back of the air conditioner (see Fig. 9).
3. Put the other end of the exhaust hose to the near windowsill.
Wndow slder kt nstallaton
The installation manner of window slider kit is mostly in “horizontal” and “vertical”.
AsshownFig. 10and Fig. 10a, check the min. and max. size of the windowbefore the installation.
1. Install the window kit on the window (Fig. 10, Fig. 10a);
2. Adjust the length of the window slider kit according to the window width or height, and fix it with
the dowel;
3. Insert the window connector hose to the hole of the window kit. 
