54
UNITEST Hexagon 330 and
UNITEST Hexagon 340:
❿ Select measurement range
via measurement function
selection switch.
❿ Connect the black test lead to
the COM socket and the red
test lead to the Temp./
/ / socket.
❿ Select the diode test via key
. The diode symbol
appears on the display.
UNITEST Hexagon 310 and
UNITEST Hexagon 320:
❿ Select measurement range
via measurement function
selection switch.
❿ Connect the black test lead to
the COM socket and the red
test lead to the / /
socket.
❿ Connect test leads to UUT.
❿ Read the measurement result
displayed on the screen.

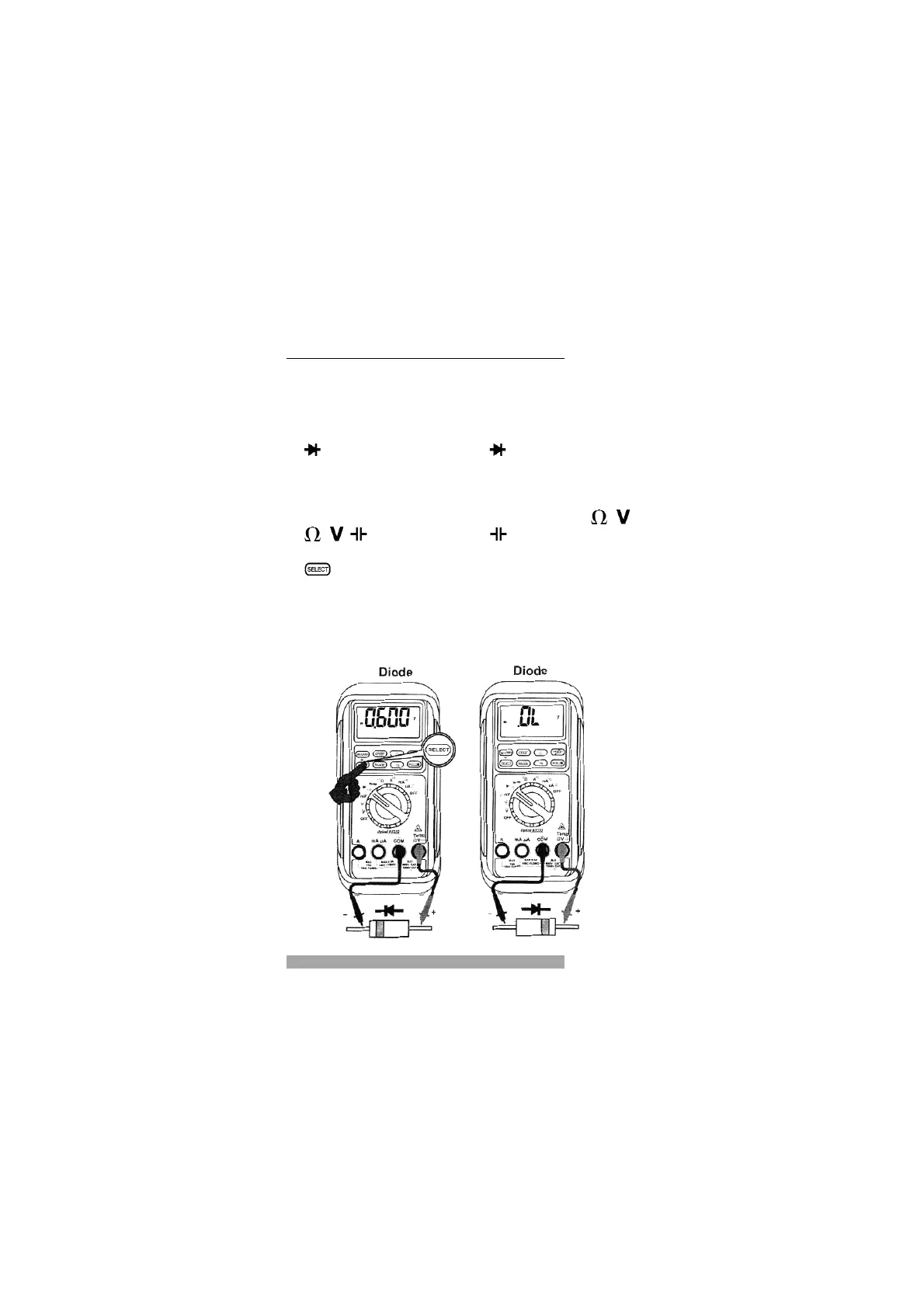

Diode Test
