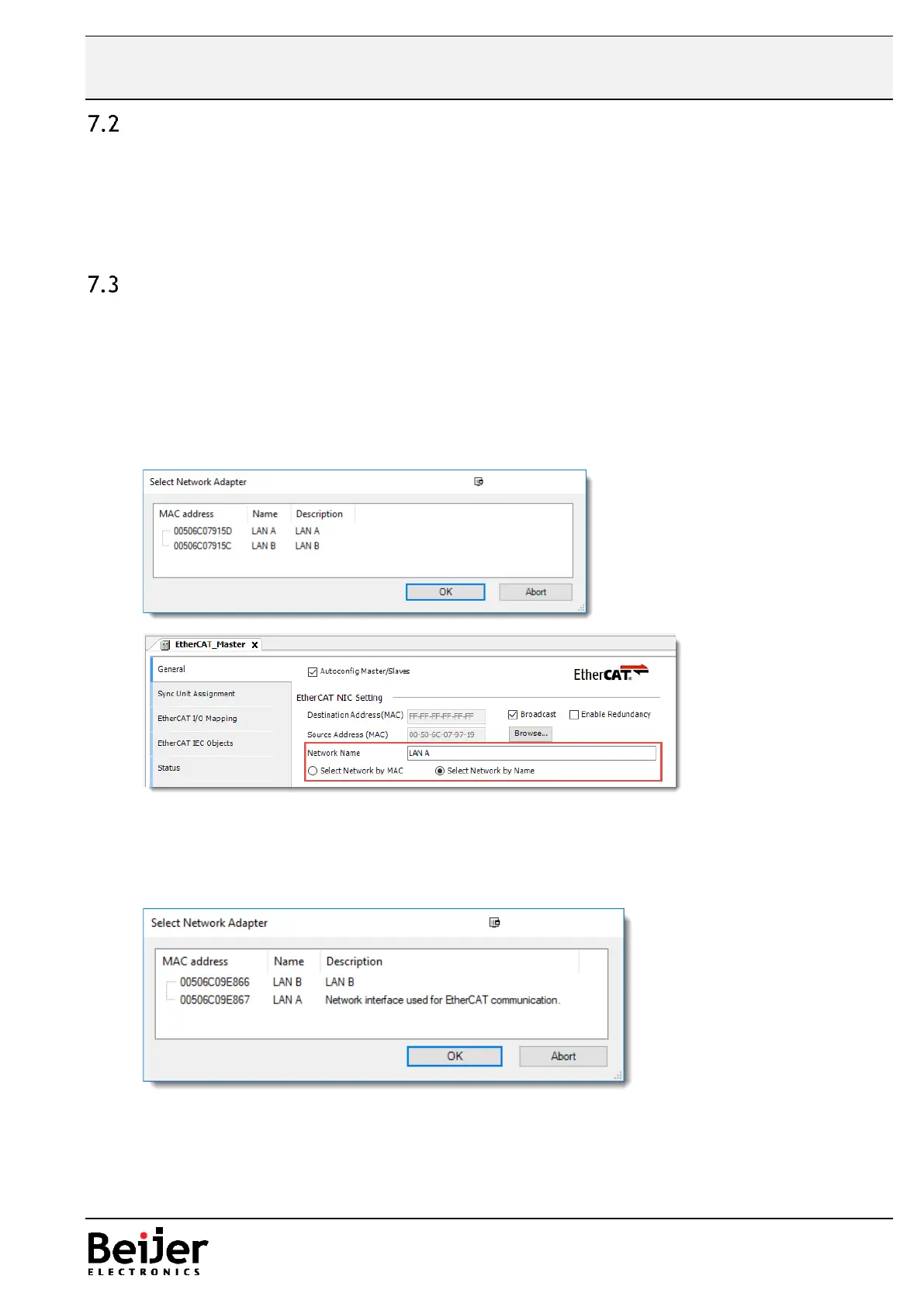

Ethernet port mapping
The EtherCAT driver in CODESYS has to know the reference to the ethernet port to be used.
This reference can be either the Name or the MAC address of the interface. We recommend to
use the name to get a more generic configuration directly reusable for other projects without any
changes.
Image version ≥ 1.5 Build 693 with CODESYS runtime 3.5.13.30.4
or newer
From image version 1.5 B693 the naming of the Ethernet ports was changed to reflect the actual
printing on the hardware. By using the browse function one can select the LAN A interface or
manually type it in the EtherCAT Master settings.
Network name when CODESYS was installed without DC support.
(Recommended and default)
DC = Distributed Clock
Network name when CODESYS was installed with DC support.
(Not recommended and not default)
DC = Distributed Clock
