• IP-Address Setup using BOOTP/DHCP Server
The following is an example of adapter IP-Address setup using BOOTP server.
Download “BootPServerVerxxxx_Beijer” from Beijer hompage.

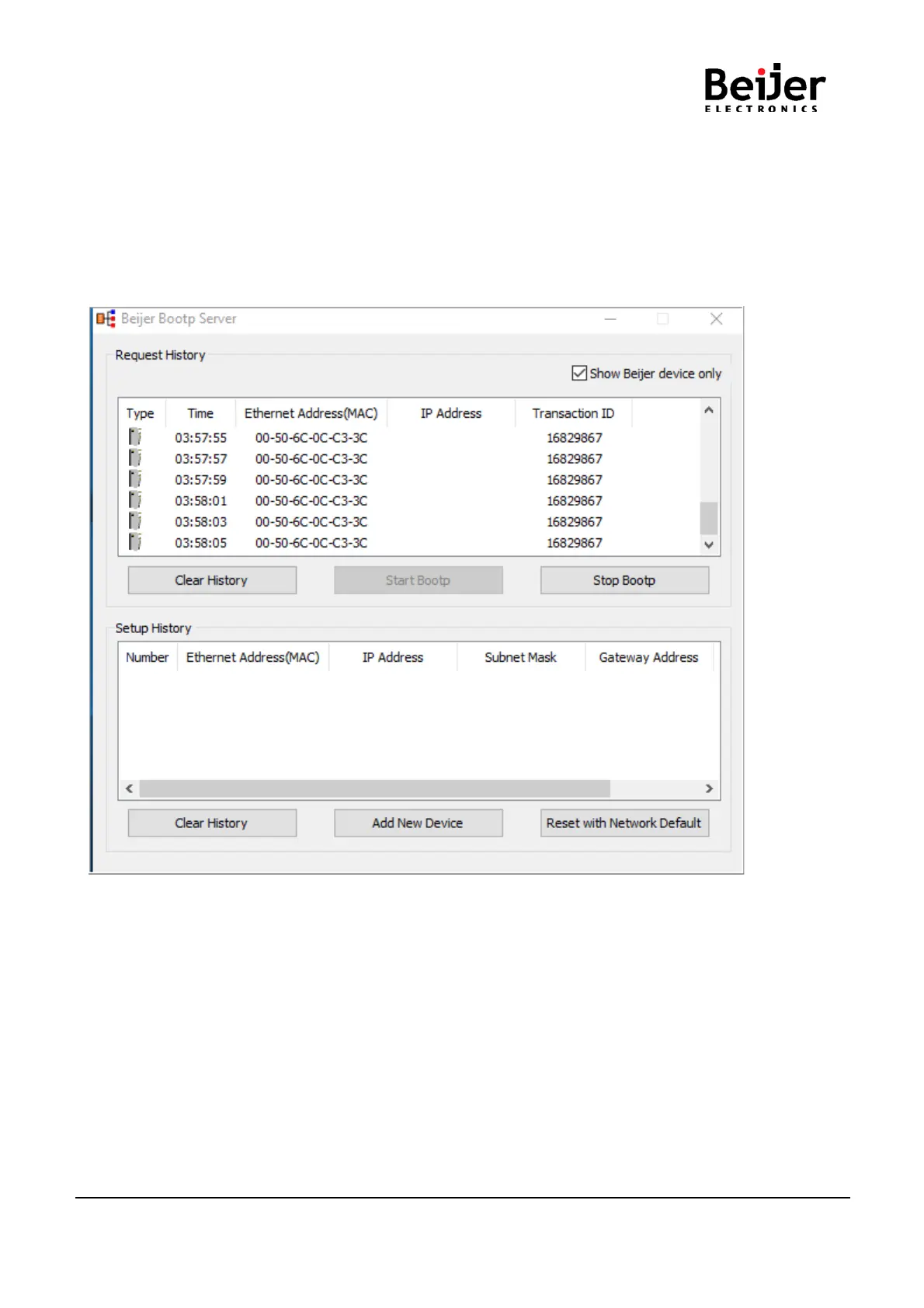

Click ‘Start Bootp’ to enable Bootp server to detect Bootp request on the network.
If the adapter is Bootp/DHCP enabled (Dip Pole #9 ON), adapter will send Bootp/DHCP request 20
times every 2sec, after power reset.
If Bootp/DHCP server does not response, adapter will use the latest saved IO address in EEPROM.
