GN-9289 User Manual
Page 8 of (70)
G-series GN-9289 Modbus TCP_UDP Rev. 1.01.docx
2. Specification
2.1. The Interface

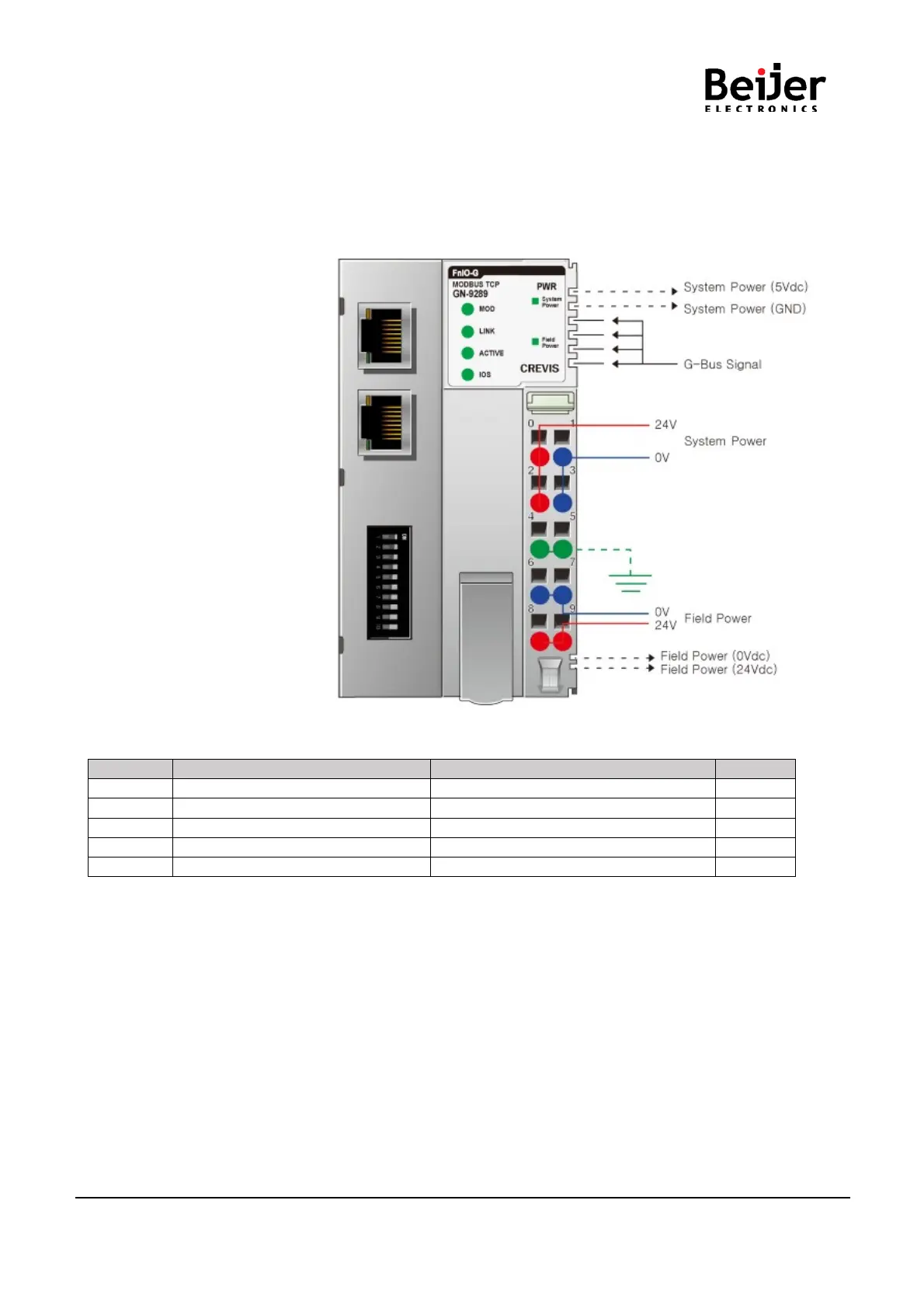

2.1.1 GN-9289 (MODBUS TCP)
System power and Field power must be supplied separately.
Pin No.
Signal Description
Signal Description
Pin No.
0
System Power, 24V
System Power, Ground
1
2
System Power, 24V
System Power, Ground
3
4
F.G
F.G
5
6
Field Power, Ground
Field Power, Ground
7
8
Field Power, 24V
Field Power, 24V
9
