7.2. Example of Input Process Image (Input Register) Map
Input image data depends on slot position and expansion slot data type. Input process image data is
only ordered by expansion slot position

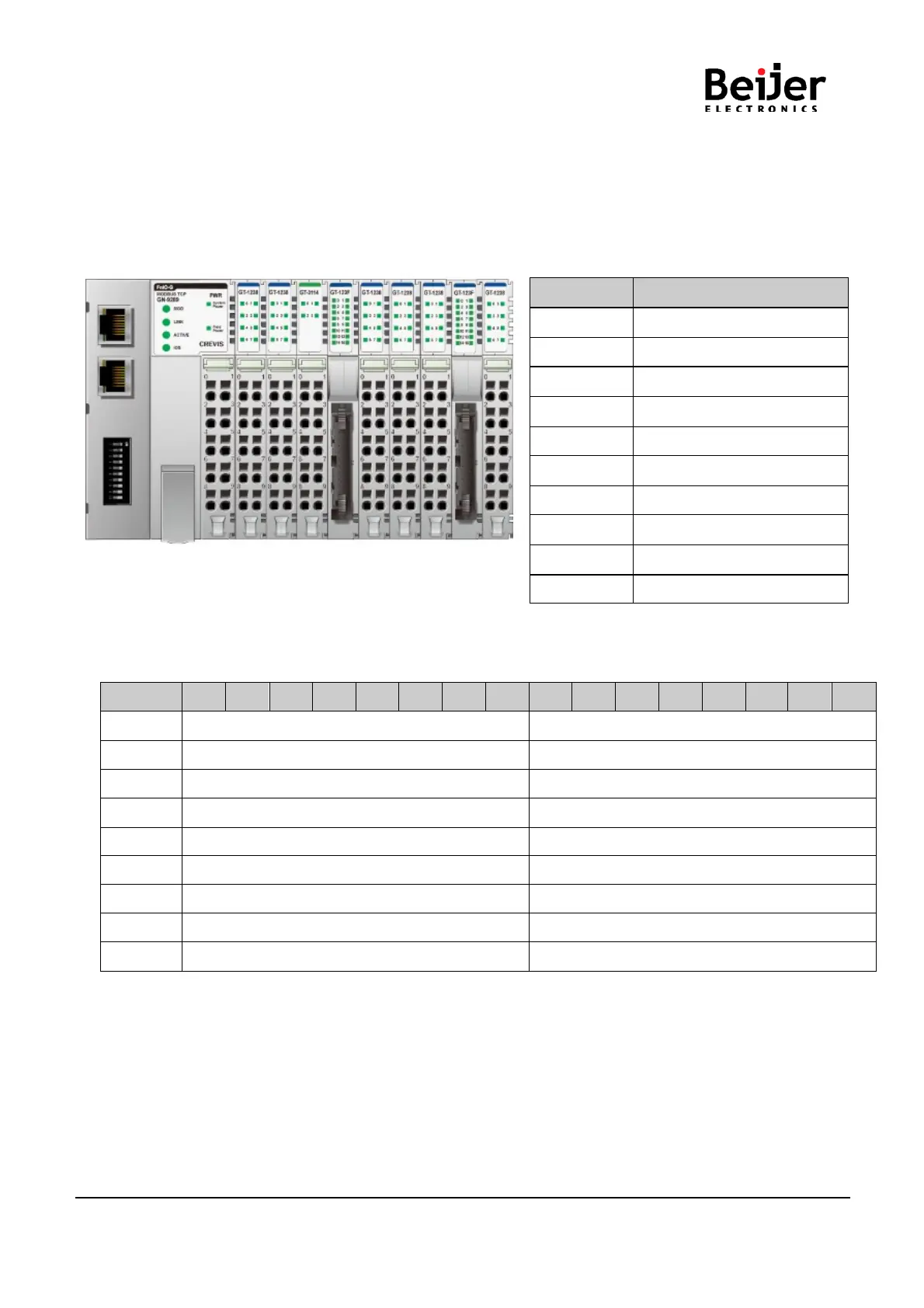

* For example slot configuration
Input Process Image
Address
b15
b14
b13
b12
b11
b10
b9
b8
b7
b6
b5
b4
b3
b2
b1
b0
0x0001
Discrete Input 8 pts (Slot#2)
Discrete Input 8 pts (Slot#1)
0x0002
Analog Input Ch0 high byte (Slot#3)
Analog Input Ch0 low byte (Slot#3)
0x0003
Analog Input Ch1 high byte (Slot#3)
Analog Input Ch1 low byte (Slot#3)
0x0004
Analog Input Ch2 high byte (Slot#3)
Analog Input Ch2 low byte (Slot#3)
0x0005
Analog Input Ch3 high byte (Slot#3)
Analog Input Ch3 low byte (Slot#3)
0x0006
Discrete Input 8 pts (Slot#4)
Discrete Input 8 pts (Slot#4)
0x0007
Discrete Input 8 pts (Slot#6)
Discrete Input 8 pts (Slot#5)
0x0008
Discrete Input 8 pts (Slot#8)
Discrete Input 8 pts (Slot#7)
0x0009
Discrete Input 8 pts (Slot#9)
Discrete Input 8 pts (Slot#8)
Slot No.
Module Description
#0
MODBUS/TCP Adapter
#1
8-discrete output
#2
8-discrete output
#3
4-analogoutput
#4
16-discrete input
#5
8-discrete input
#6
8-discrete input
#7
8-discrete input
#8
16-discrete input
#9
8-discrete input
