Belanger Wave Across - Rack Assembly; Drive Arm Assemblies

WAVE ACROSS
22 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL850
Maintenance

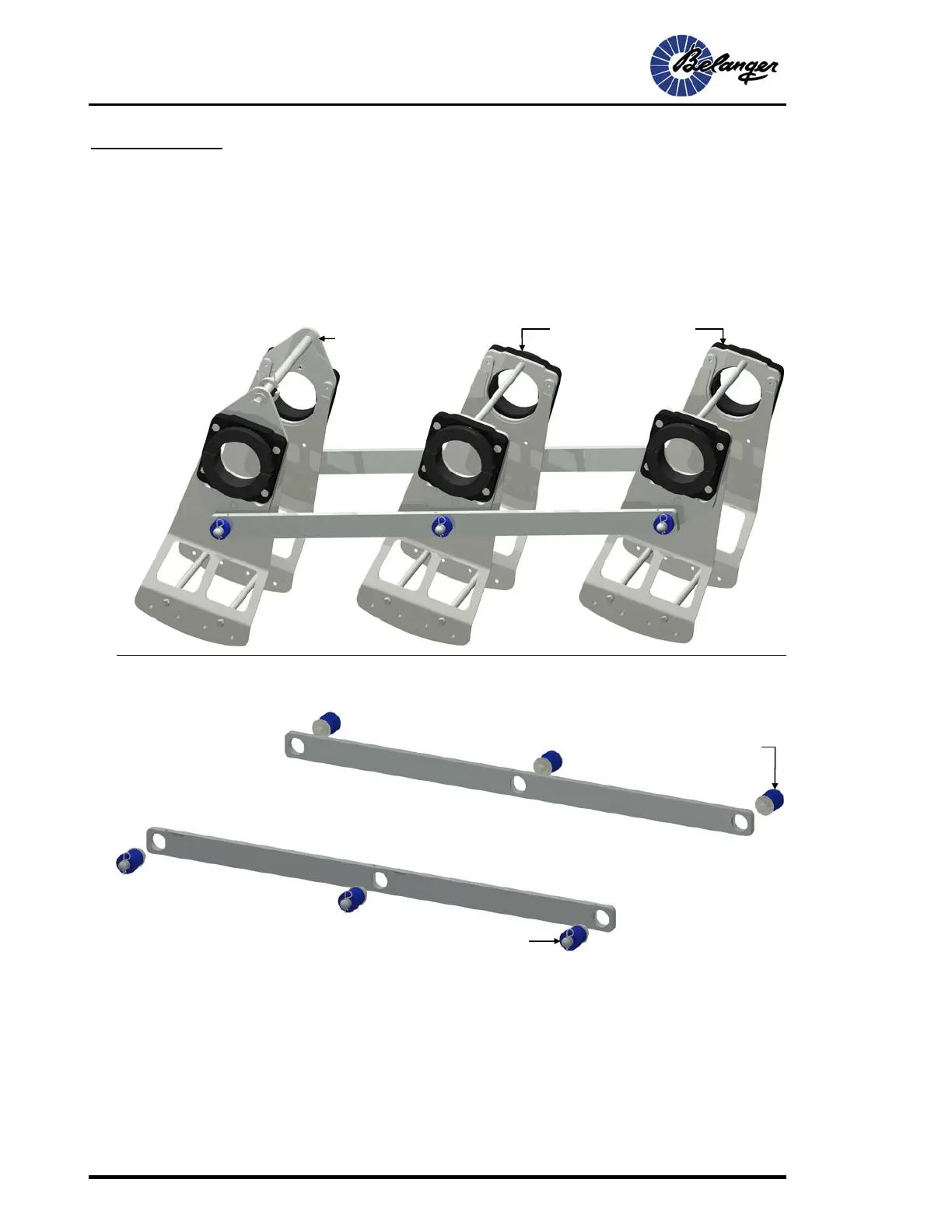

Exploded Parts View
Rack Assembly
The following Rack Assembly images show 1 of 2 identical assemblies required to make up a
complete Wave Across upper frame. The quantities shown reflect requirements for a single
assembly (single side). In addition each side has 2 Drive Arm Assemblies.
Drive Arm Assemblies
Stud/Retainer Assembly
(3 pieces, shown later in this section)
Rack Bushing Assembly
(3 pieces, shown later in this section)
3739
3739
Follower Rack Assembly
(shown later in this section)
Drive Rack Assembly
(shown later in this section)
