Installation
Cloth
This section will explain the cloth installation procedure.
Note: Do not install any cloth until all equipment has been installed, turned on and checked for
hydraulic, pneumatic and water leaks.
Locate the following hand tools:
1-1/8” wrench 9/16” socket
5/16” hex wrench Work gloves
3/16” hex wrench Safety glasses
Ladder

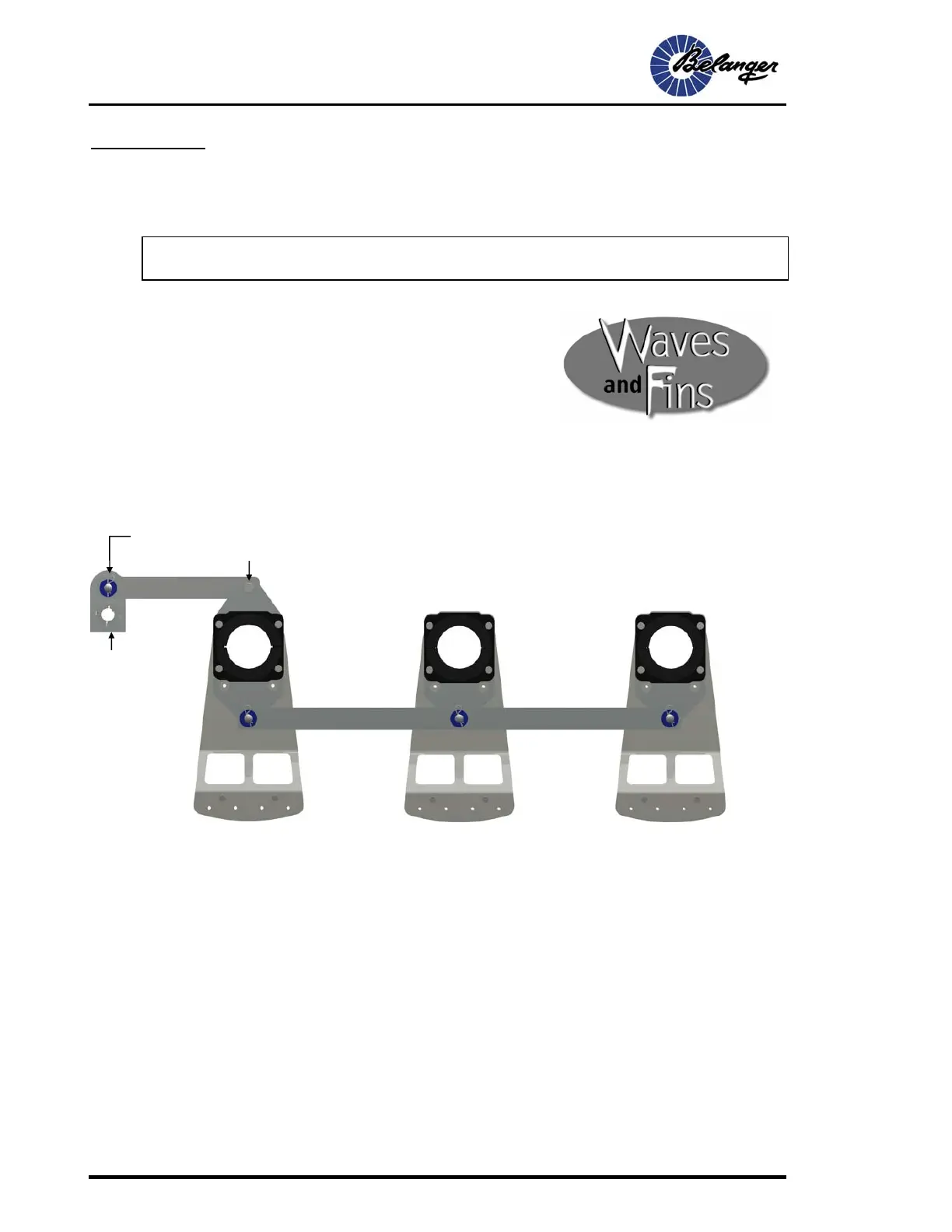

Parts Identification
Entrance View
Upper drive arm
Lower drive arm
Drive rack Passenger side
follower rack
Center
follower rack
1-1/8” bolt,
(remove for cloth installation, typical)
Retainer pin
(typical)
Pitman
arm
