Service Manual iFLEX2 with iSCOUT expert compact (Grove RT-TM)
© 2015 HIRSCHMANN Automation and Control GmbH 35

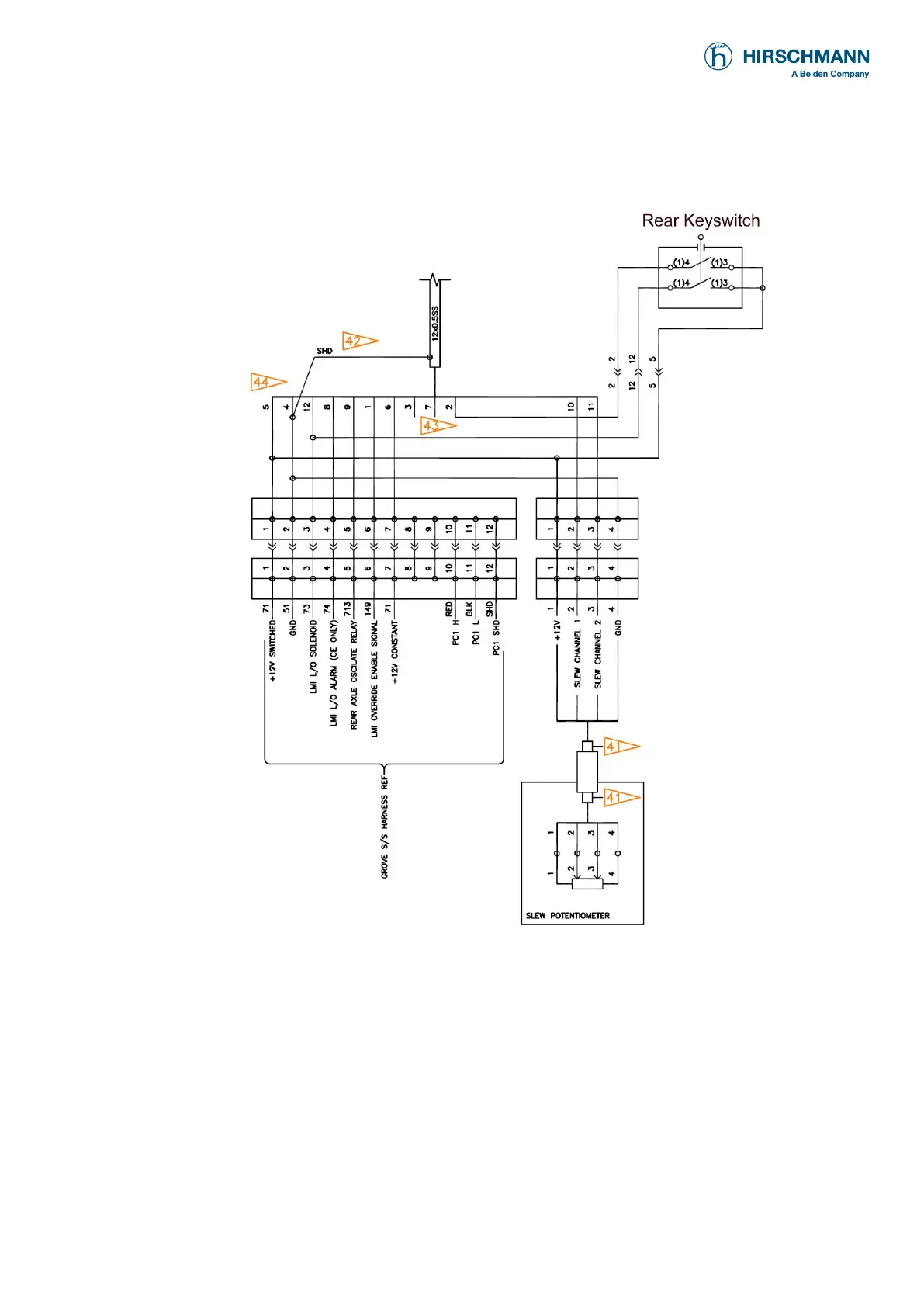

14.3.6 Crane Interface RT530-2 / RT540E (page 4)
Hirschmann Automation and Control GmbH reserves proprietary rights to this drawing and to the data shown there on. The drawing and data are confidential and
are not to be used or reproduced without the written consent of Hirschmann. This drawing is subject to technical modification without prior notice.
To Next Page
