Belden HIRSCHMANN iFLEX2 + iSCOUT expert compact - Angle Sensor Calibration Procedure

Service Manual iFLEX2 with iSCOUT expert compact
50 50 650 69 0101E_REV D (GROVE RT-TM).DOC / Rev. D / 2015-11-20 / JPD
15.5 ANGLE SENSOR CALIBRATION PROCEDURE
The angle sensor can be calibrated for its zero point and with steep boom
Material required: calibrated inclinometer
 Select Angle sensor calibration menu and start procedure by pressing "OK"

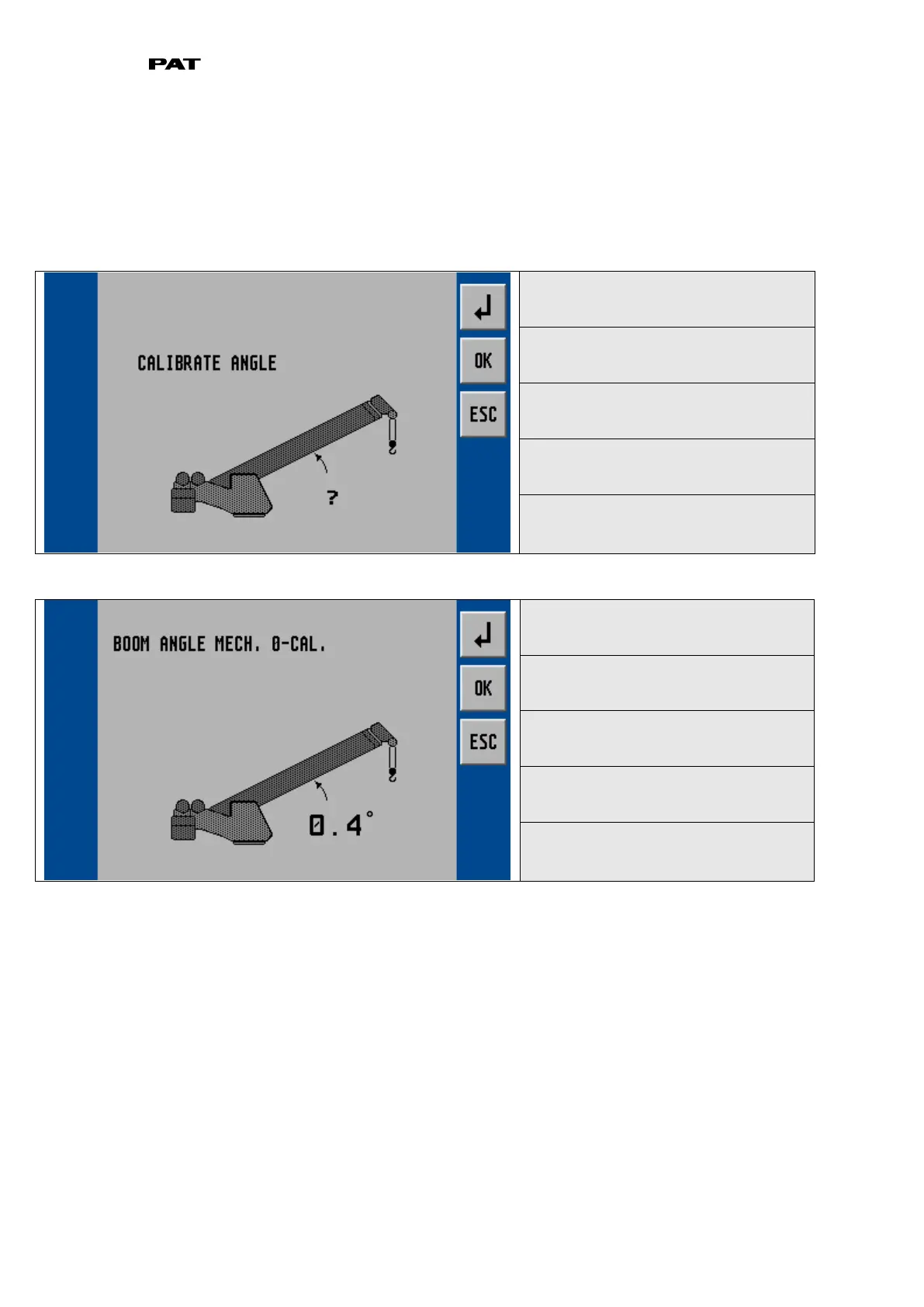

▼ Calibration screen (boom angle)
skip calibration step
start angle calibration procedure
cancel and return to LMI screen
▼ Start calibration for "zero degree" angle
skip calibration step
calibrate next angle
cancel and return to LMI screen
