15.3 ZERO-SETTING THE SLEWING INPUTS
NOTE: The only thing adjustable for the slew potentiometer is the zero point, which is complete when
the boom is at the 0 position over the front of the crane.
NOTE: The range for zero-setting this value is from -10° to +10°.
Press the “AUTO >0<” key until the the zero-setting starts. The indicator line must move to
zero on the dial, otherwise the zero-setting of this value is not correct!

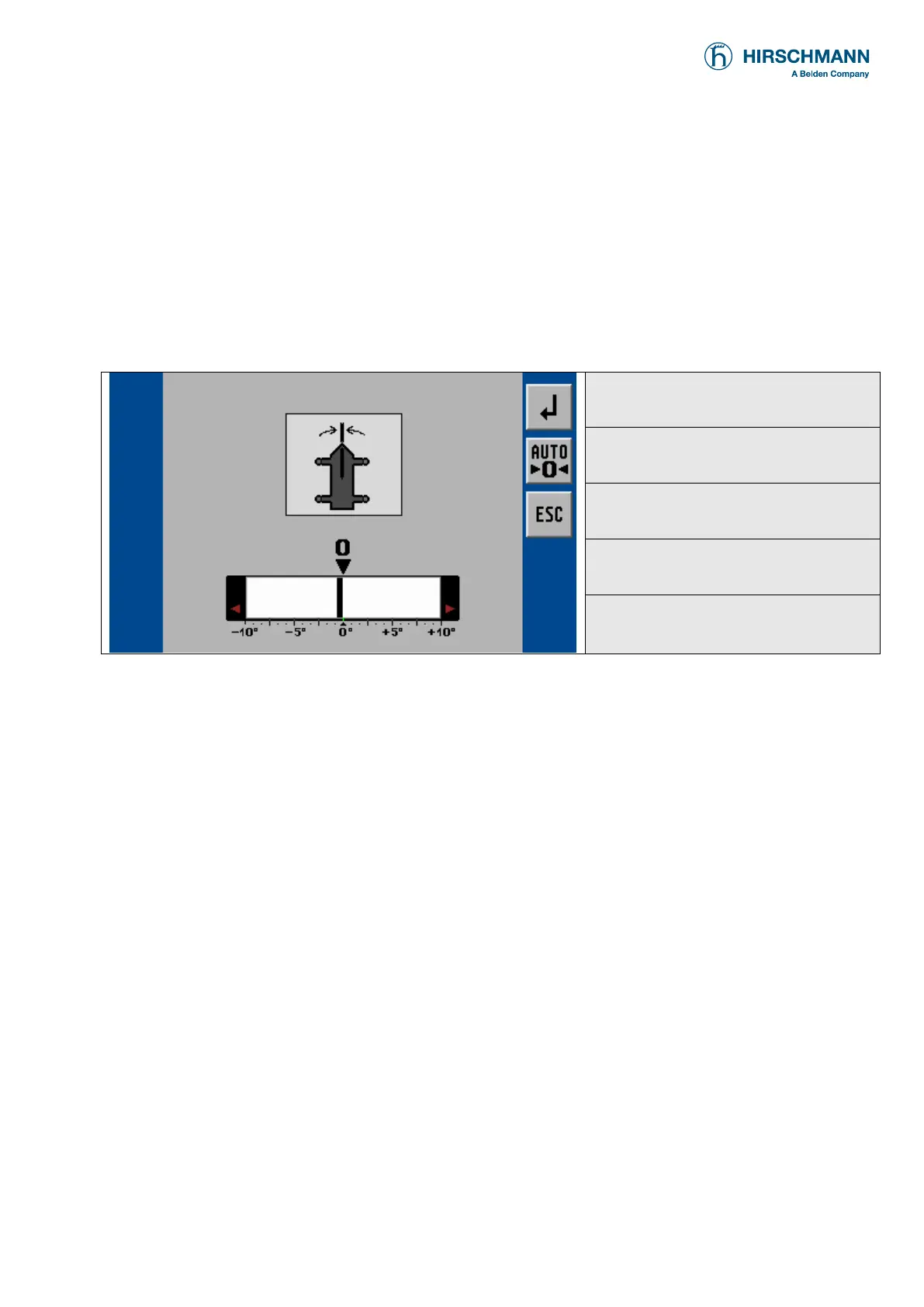

▼ Calibration screen (slewing angle)
zero-setting slewing angle
cancel and return to LMI screen
To Next Page
