12
3.6.5.3 Ethernet Interface

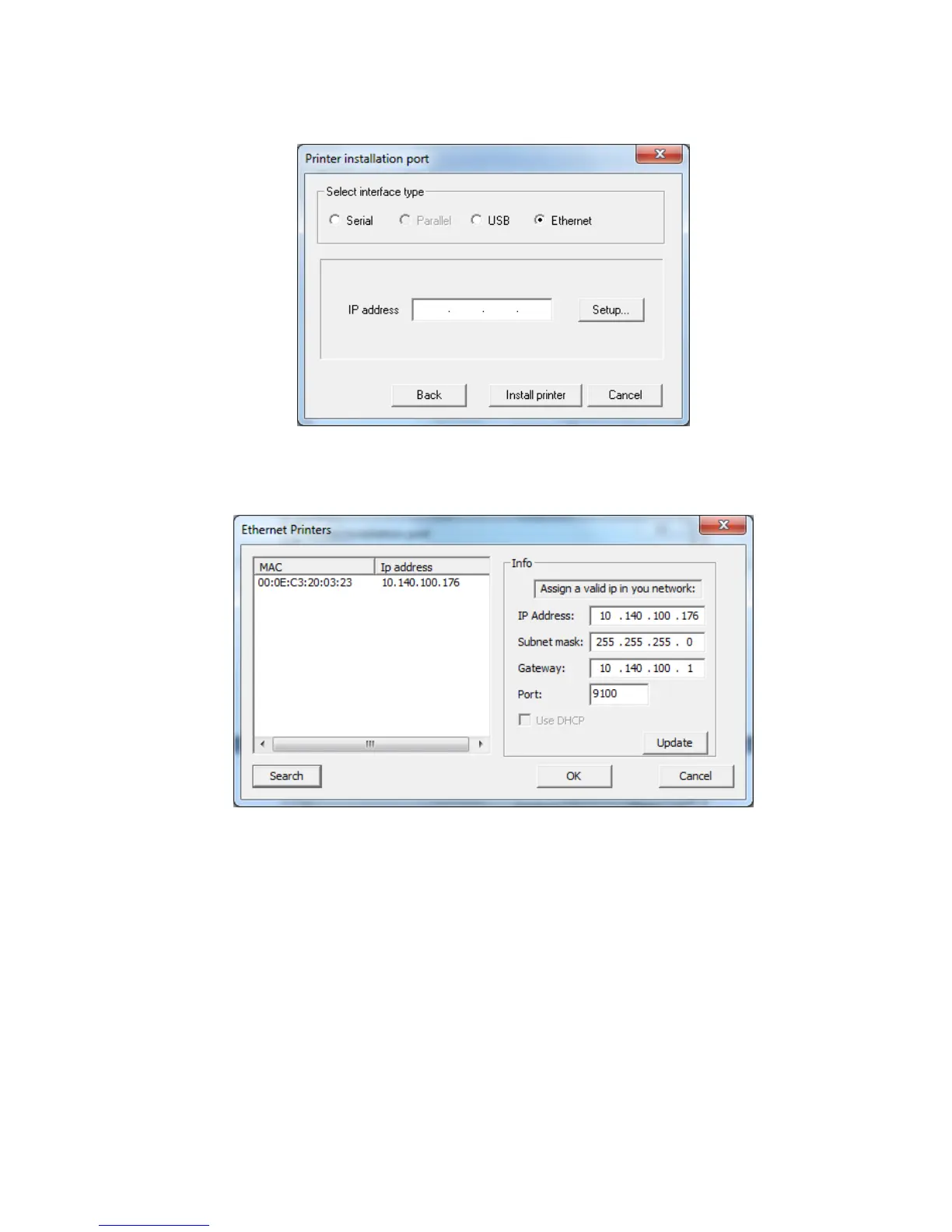

Click “Setup” to find the IP of the printer (if you know the printer’s IP
already, you can also type it in manually).
Then, click “Search” to search all available LR2000 printers over the
network, choose the printer from the list on the left by clicking on the
MAC column corresponding to the printer that you want to install the
driver. Modify the IP address to desired value if necessary and click
update to apply the new IP. Then click OK to finish.
Note: If your printer’s IP address is not valid (no within the valid network
IP range), you will be reminded to assign a valid IP to the printer. Assign a
new valid address, click Update button and then click OK to finish. As
demonstrated in picture below, the IP address “1.2.3.4” is invalid; it will
then ask you to assign a new IP address.

Bematech LR2000 Specifications

General

Cutter	Yes
Bluetooth	No
Flash memory	- MB
Product color	Black
Maximum resolution	180 x 180 DPI
Autocutter durability	1 million cuts
Operating temperature (T-T)	0 - 50 °C
Mean time between failures (MTBF)	60000000 h
I/O ports	Standard USB Type B, DB9, RJ45, RJ11, 3-pin with latch
USB connector	USB Type-B
Standard interfaces	RJ-11, RJ-45, RS-232, Serial
Serial interface type	RJ-11, RS-232
USB 2.0 ports quantity	1
Connectivity technology	Wired
Maximum roll diameter	710 mm
Supported paper width	79.5 mm
Type	POS printer
Character sets	ASCII
Print technology	Thermal
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	170-240 V
Power source type	AC

Weight and Dimensions

Depth	197 mm
Width	146 mm
Height	149 mm
