Bematech LR2000 User Manual

11

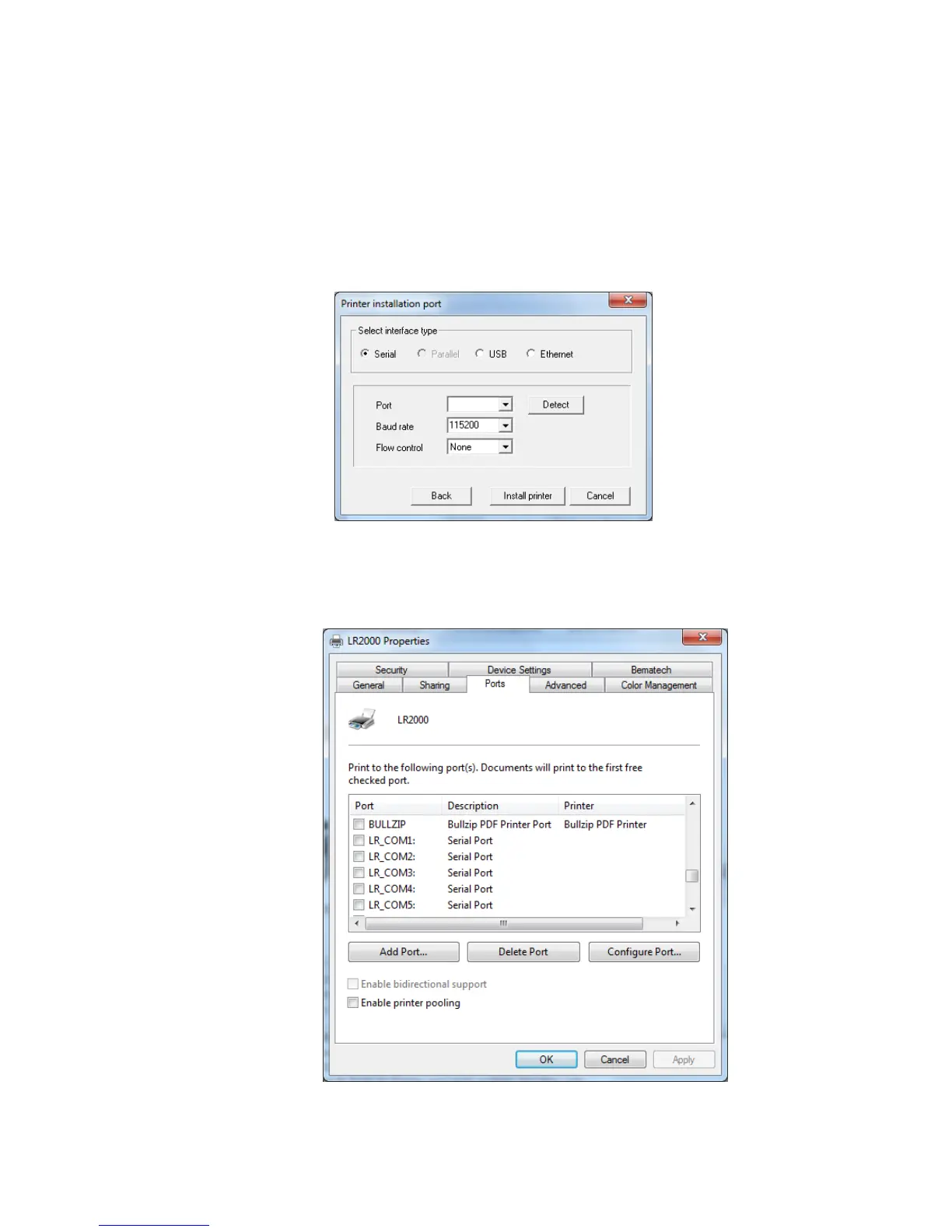

3.6.5.2 Serial Interface
Select the serial port from the drop down box if you know which port
your printer connected to, or you can use “Detect” to automatically
detect the port for you. Choose or Enter the Baud rate of the
printer(Note: you can check the baud rate from the printer’s testing page,
shutdown the printer and hold feed button while you turn the printer
On), with flow control set to “None”.
After driver installation, you can also change the port at any time from
the LR2000 properties port setting tab Please make sure you choose port
name start with LR_COM as shown below:

Bematech LR2000 Specifications

General

Cutter	Yes
Bluetooth	No
Flash memory	- MB
Product color	Black
Maximum resolution	180 x 180 DPI
Autocutter durability	1 million cuts
Operating temperature (T-T)	0 - 50 °C
Mean time between failures (MTBF)	60000000 h
I/O ports	Standard USB Type B, DB9, RJ45, RJ11, 3-pin with latch
USB connector	USB Type-B
Standard interfaces	RJ-11, RJ-45, RS-232, Serial
Serial interface type	RJ-11, RS-232
USB 2.0 ports quantity	1
Connectivity technology	Wired
Maximum roll diameter	710 mm
Supported paper width	79.5 mm
Type	POS printer
Character sets	ASCII
Print technology	Thermal
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	170-240 V
Power source type	AC

Weight and Dimensions

Depth	197 mm
Width	146 mm
Height	149 mm
