Bematech SB1015 - Page 12

11

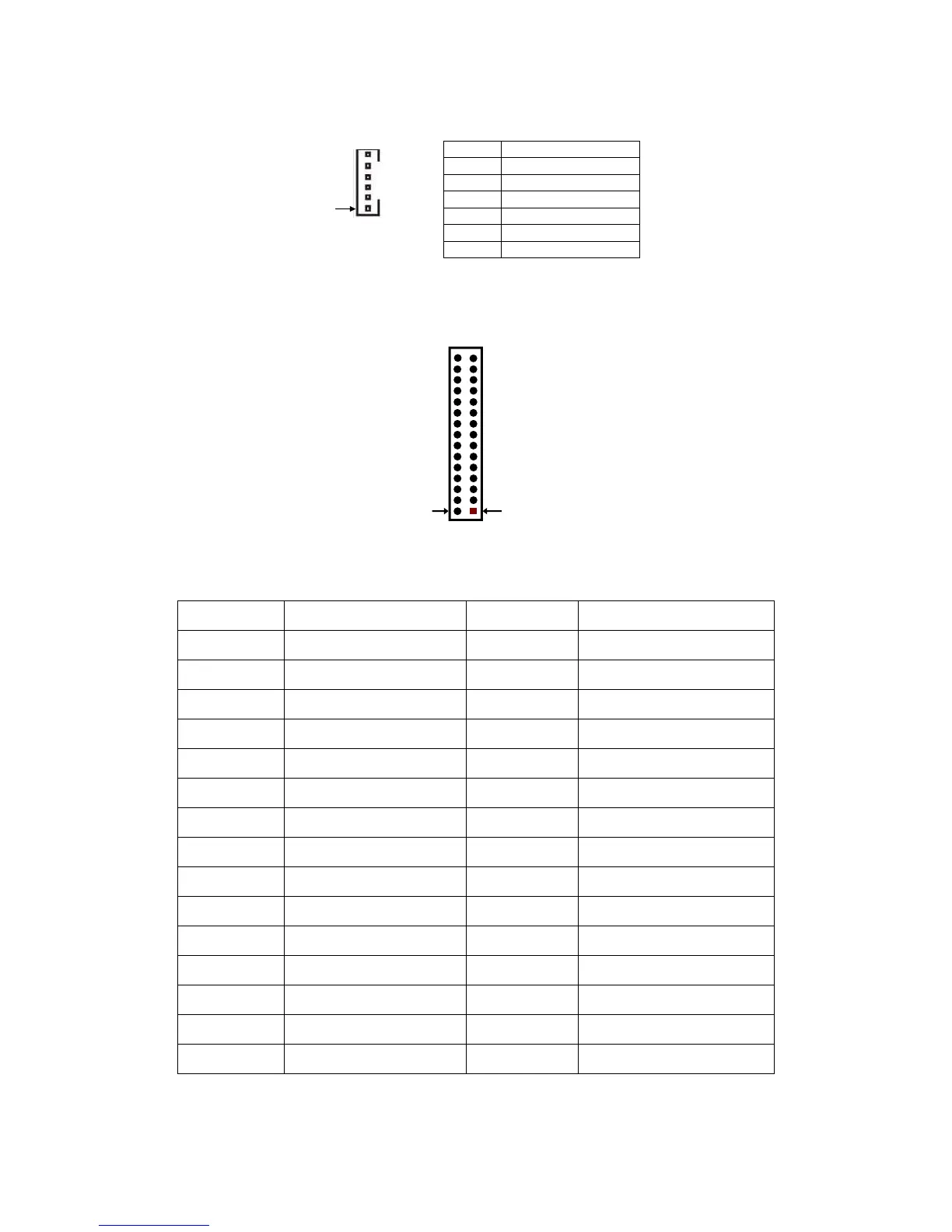

(15) INVERTER (6-Pin): LVDS1 Inverter Header
Pin 1
INVERTER
Pin No.
Definition
1
BKLT_PWR1
2
BKLT_PWR2
3
BKLT_EN
4
BKLT_PWM
5
GND1
6
GND2
(16) LVDS (30-Pin): 24-bit dual channel LVDS Header
LVDS Header
Pin 2
Pin 1
Pin NO.
Pin Define
Pin NO.
Pin Define
Pin 1
LVDS_VCC
Pin 2
LVDS_VCC
Pin 3
LVDS_VCC
Pin 4
GND
Pin 5
GND
Pin 6
GND
Pin 7
LVDSA_DATAN0
Pin 8
LVDSA_DATAP0
Pin 9
LVDSA_DATAN1
Pin 10
LVDSA_DATAP1
Pin 11
LVDSA_DATAN2
Pin 12
LVDSA_DATAP2
Pin 13
GND
Pin 14
GND
Pin 15
LVDSA_CLKN
Pin 16
LVDSA_CLKP
Pin 17
LVDSA_DATAN3
Pin 18
LVDSA_DATAP3
Pin 19
LVDSB_DATAN0
Pin 20
LVDSB_DATAP0
Pin 21
LVDSB_DATAN1
Pin 22
LVDSB_DATAP1
Pin 23
LVDSB_DATAN2
Pin 24
LVDSB_DATAP2
Pin 25
GND
Pin 26
GND
Pin 27
LVDSB_CLKN
Pin 28
LVDSB_CLKP
Pin 29
LVDSB_DATAN3
Pin 30
LVDSB_DATAP3
