Bematech SB1015 User Manual

10

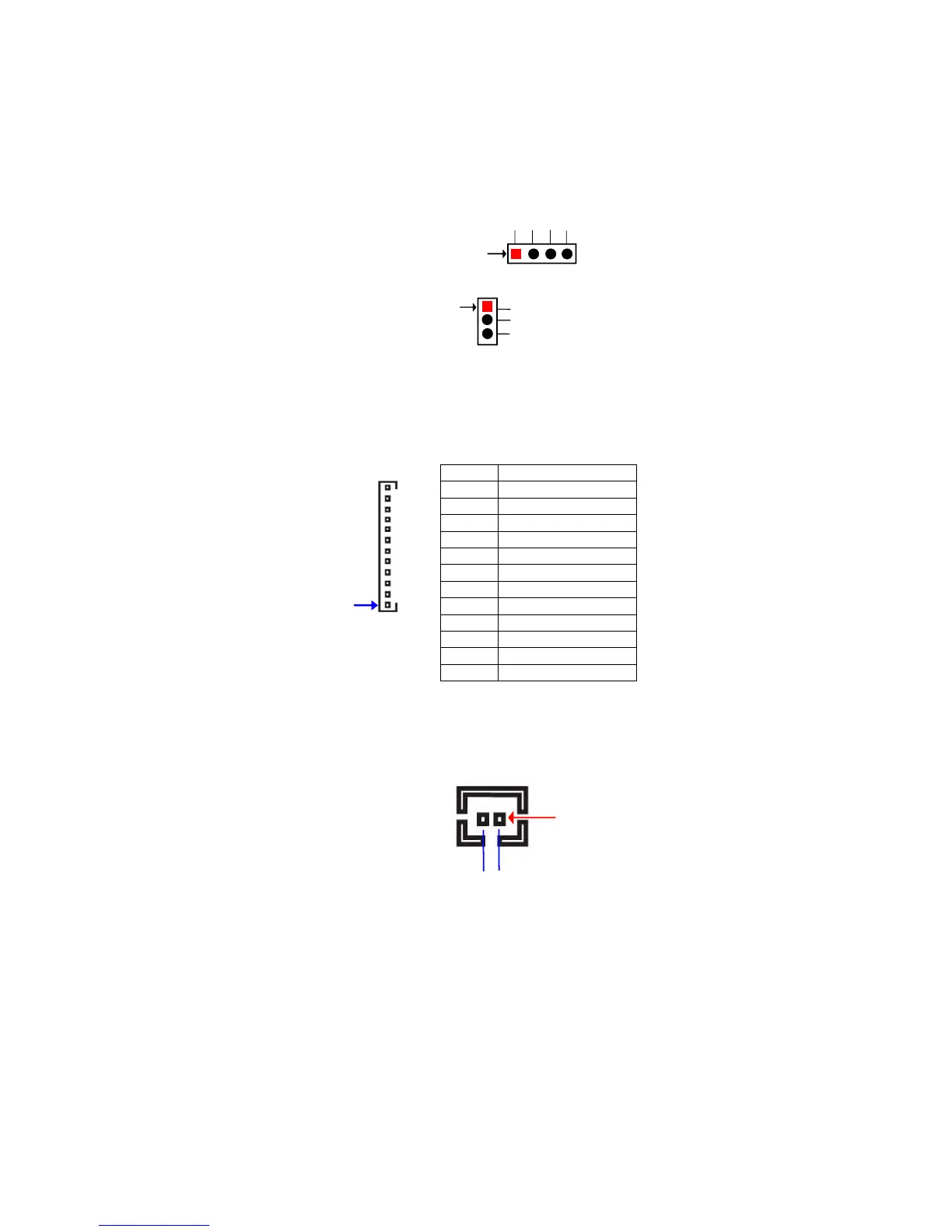

(12) CPUFAN1 (4-pin)/SYSFAN1 (3-pin): FAN Headers
Control
Fan Speed
+12V Fan Power
Pin1
GND
CPUFAN1
Pin1
GND
+12V Fan Power
Fan Speed
SYSFAN1
(13) VGA1 (12-pin): VGA Header
Pin 1
Pin No.
Definition
1
VCC5(Reserved)
2
VGA_VSYNC
3
VGA_HSYNC
4
GND_RED
5
RED_VGA
6
GND_GRN
7
GRN_VGA
8
GND_BLUE
9
BLUE_VGA
10
GND
11
DDC_DATA
12
DDC_CLK
(14) JP2 (2-pin): LVDS Panel Brightness Adjustment Header
Pin1
Brighteness+
Brighteness-

Bematech SB1015 Specifications

General

Processor cache	2 MB
Processor cores	4
Processor model	J1900
Processor family	Intel® Celeron®
Processor frequency	2 GHz
DC-in jack	Yes
Serial ports quantity	3
USB 2.0 ports quantity	5
Ethernet LAN (RJ-45) ports	1
Operating system installed	-
Display diagonal	15 \
Display brightness	250 cd/m²
Display resolution	1024 x 768 pixels
Touchscreen technology	Resistive
Internal memory	8 GB
Memory slots type	SO-DIMM
Memory clock speed	1333 MHz
Internal memory type	DDR3L-SDRAM
Power supply	90 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
HDD size	2.5 \
HDD interface	SATA
Storage media	HDD
Total storage capacity	320 GB
Graphics card	HD Graphics
Graphics card manufacturer	Intel
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	8 - 80 %
Audio system	ALC887
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Chassis type	All-in-One
Product color	Black

Weight and Dimensions

Depth (with stand)	230 mm
Width (with stand)	364 mm
Height (with stand)	326 mm
Weight (with stand)	5910 g
