Bematech SB1015 User Manual

8

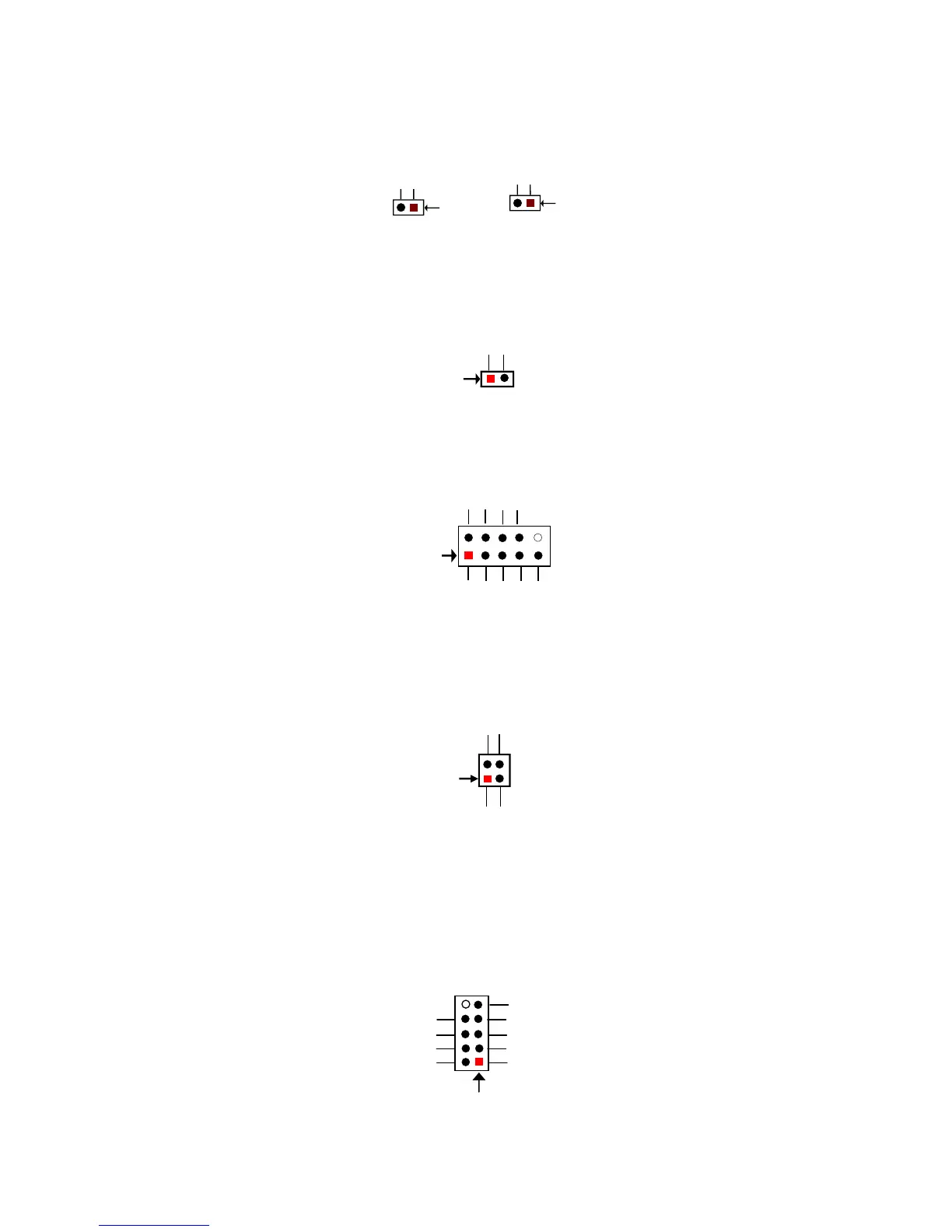

(2) SPEAK_CON1 (2-pin)/ SPEAK_CON 2 (2-pin): Speaker Headers
SPKL+
SPEAK_CON1
Header
SPKL-
SPEAK_CON2
Header
Pin1
Pin1
SPKL+
SPKL-
(3) SPDIF (2-pin): HDMI_SPDIF Out Header
Pin1
SPDIF
GND
(4) COM2/3/4/5/6 (9-Pin): Serial Port Headers
DCD
Pin1
6
SIN
SOUT
DTR
GND
DSR
RTS
CTS
RI
(5) TX-RXCOM2 (4-Pin): RS422/485 Header
TXDP
Pin 1
RXDP
RXDN
TXDN
4
3
2
*Notice: User needs to go to BIOS to set ‘Transmission Mode Select’ as [RS422/RS485]
for COM2 as well (refer to Page 34).
(6) JW-FP (9-pin): Front Panel Header
VCC
HDDLED-
GND
RSTSW
PWRLED-
PWRLED+
GND
Pin 1
2
PWRBTN
HDDLED+

Bematech SB1015 Specifications

General

Processor cache	2 MB
Processor cores	4
Processor model	J1900
Processor family	Intel® Celeron®
Processor frequency	2 GHz
DC-in jack	Yes
Serial ports quantity	3
USB 2.0 ports quantity	5
Ethernet LAN (RJ-45) ports	1
Operating system installed	-
Display diagonal	15 \
Display brightness	250 cd/m²
Display resolution	1024 x 768 pixels
Touchscreen technology	Resistive
Internal memory	8 GB
Memory slots type	SO-DIMM
Memory clock speed	1333 MHz
Internal memory type	DDR3L-SDRAM
Power supply	90 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
HDD size	2.5 \
HDD interface	SATA
Storage media	HDD
Total storage capacity	320 GB
Graphics card	HD Graphics
Graphics card manufacturer	Intel
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	8 - 80 %
Audio system	ALC887
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Chassis type	All-in-One
Product color	Black

Weight and Dimensions

Depth (with stand)	230 mm
Width (with stand)	364 mm
Height (with stand)	326 mm
Weight (with stand)	5910 g
