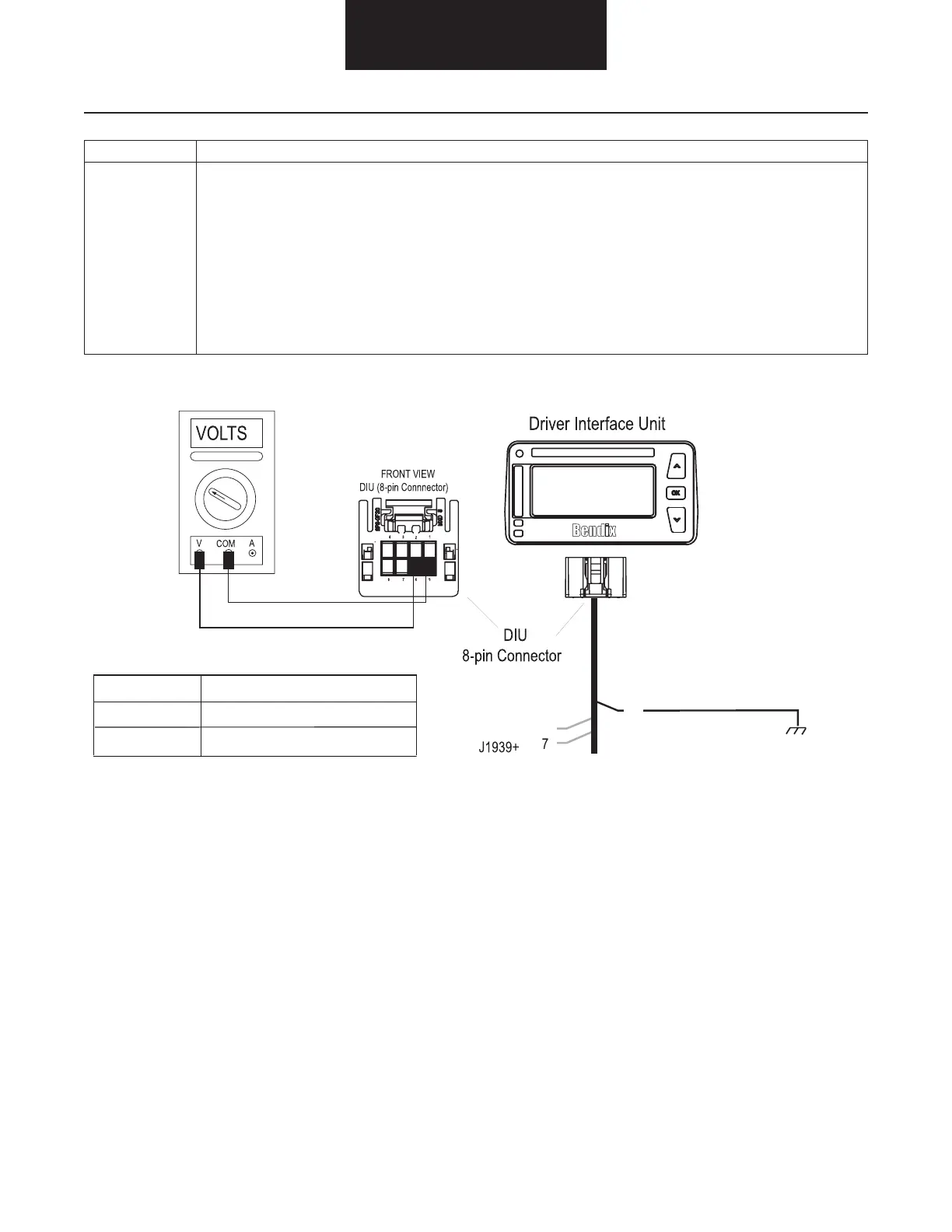

Pretest Procedures
Step Procedure
E 1. VehicleIgnition:Key-ON,Engine-OFF.
2. Measure for J1939 data voltage on pins 6 and 5 of the DIU harness connector.
(J1939 Low to Ground)
a. If the voltage is fluctuating between 0 to 3 volts.
i. Proceed to Step F.
b. If the voltage is a constant at 0 volts.
    i. TestFailed.Checkforopen/looseconnectionsinthevehicle’sJ1939datalinkharness.
(See Note)
Note: Refer to vehicle OEM repair manual or contact the OEM for more information on the J1939 data link harness.
Pin #Description
J1-5 Chassis Ground
J1-6 J1939-
6
Chassis
Ground
5
J1939-
