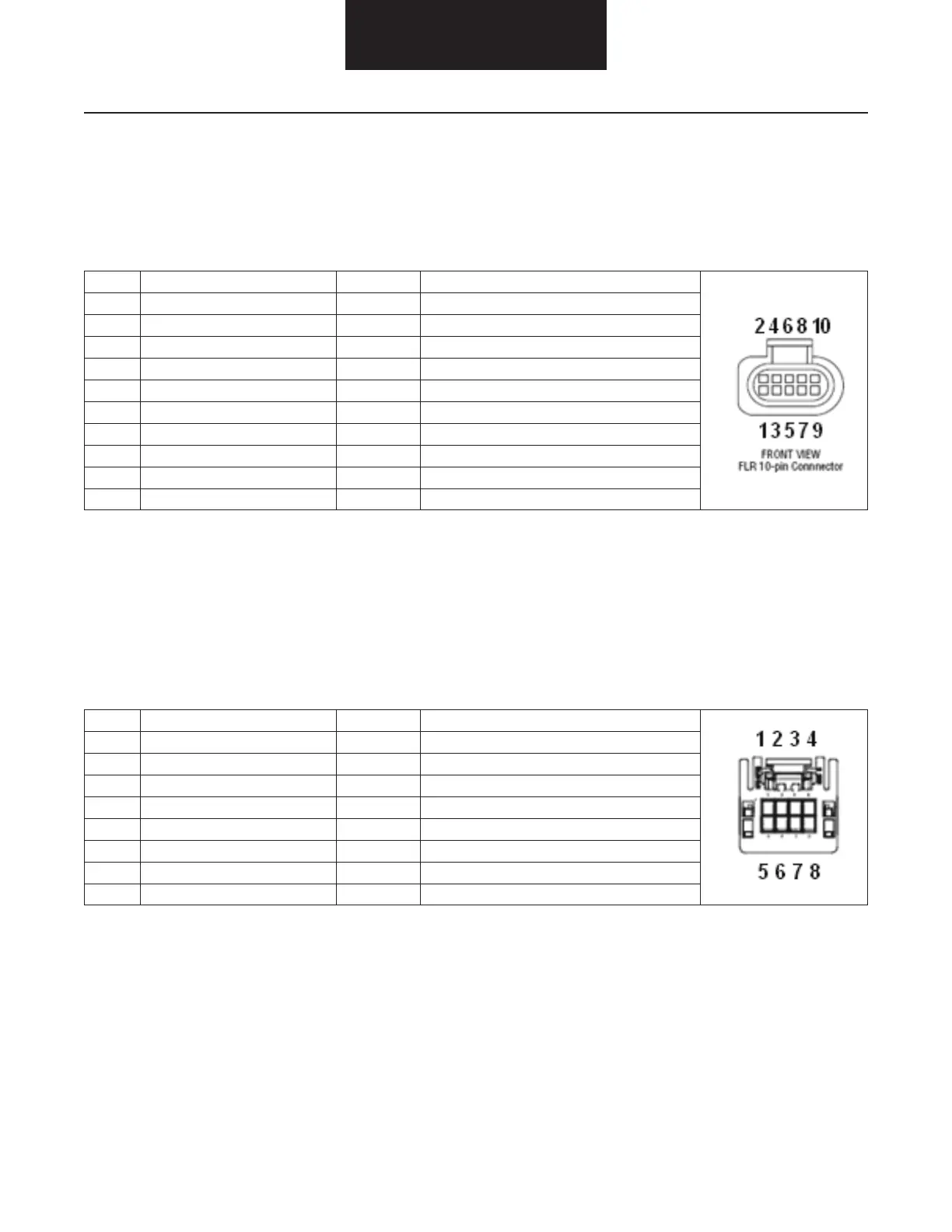

6. Connector Pin Descriptions
A. Forward Looking Radar
10-pin TRW Connector
B. Driver Interface Unit
8-Pin Molex Connector
PIN # SIGNAL NAME TYPE INTERFACE LEVEL
1 NO_CONNECTION – –
2 NO_CONNECTION – –
3 J1939_SHIELD TRUCKJ1939LINK
4 CAN_HI – TRUCKJ1939LINK
5 CAN_LO – TRUCKJ1939LINK
6 NO_CONNECTION – –
7 NO_CONNECTION – –
8 NO_CONNECTION – –
9 GROUND POWER CHASSIS GROUND
10 IGNITION POWER +12V SWITCHED
PIN # SIGNAL NAME TYPE INTERFACE LEVEL
1 RIGHT_SPEAKER O SPEAKERDRIVER4OHM/1WATT
2 LEFT_SPEAKER O SPEAKERDRIVER4OHM/1WATT
3 BLACKOUT_INPUT/SPARE I TRI-STATEINPUT
4 IGNITION POWER +9-32 VDC SWITCHED
5 GROUND POWER CHASSIS GROUND
6 CAN_LO TRUCKJ1939LINK
7 CAN_HI TRUCKJ1939LINK
8 SPARE_ANALOG I TRI-STATE INPUT
