General Information
48
Appendix 6

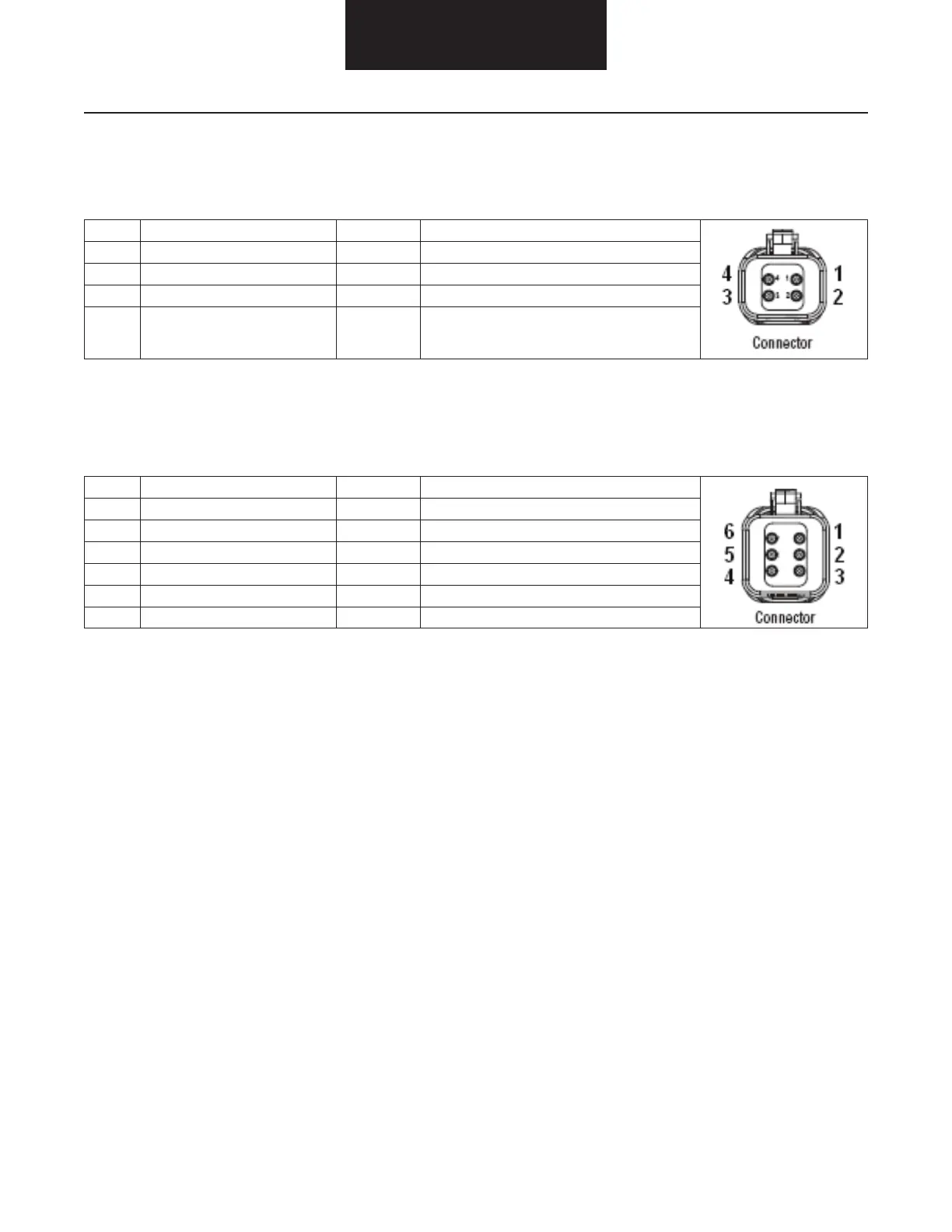

C. Side Sensor Display Unit
4-pin Deutsch Connector
D. Side Sensor
6-pin Deutsch Connector
PIN # SIGNAL NAME TYPE INTERFACE LEVEL
1 POWER I +12V FROM SENSOR
2 GROUND POWER CHASSIS GROUND
3 COMMUNICATION I
4 TURN_SIGNAL I +12V
PIN # SIGNAL NAME TYPE INTERFACE LEVEL
1 IGNITION POWER +12V SWITCHED
2 GROUND POWER CHASSIS GROUND
3 COMMUNICATION O
4 POWER O +12V
5 SODDU-GROUND POWER GROUND
6 NOCONNECTION – –
