Autostacker™ Parking Lift 59 P/N 5900002 — Rev. D — August 2019
Attach the Conduit Tube
In order to place the Control Stand at the
Rear
of the Lift, you need to first attach the Conduit Tube to
the Bottom Connector Tube.
If you plan to position the Control Stand at the Front of the Lift, continue to the next section.
As mentioned in Positioning the Bottom Connector Tube, there is a Window on the Bottom
Connector Tube used for routing the Control Stand wiring. The Conduit Tube protects the Control
Stand wiring from being exposed and damaged.
The components involved include:
• Conduit Cover Plate. Attaches to the Window on the Bottom Connector Tube, facing the Rear
of the Lift.
• Solid Cover Plate. Attaches to the Window on the Bottom Connector Tube, facing the Front of
the Lift.
• Conduit Fitting. Attaches to the Conduit Cover Plate and holds one side of the Conduit Tube.
• Conduit Tube. Attaches to the Conduit Fitting. Used for routed the Control Stand wiring.

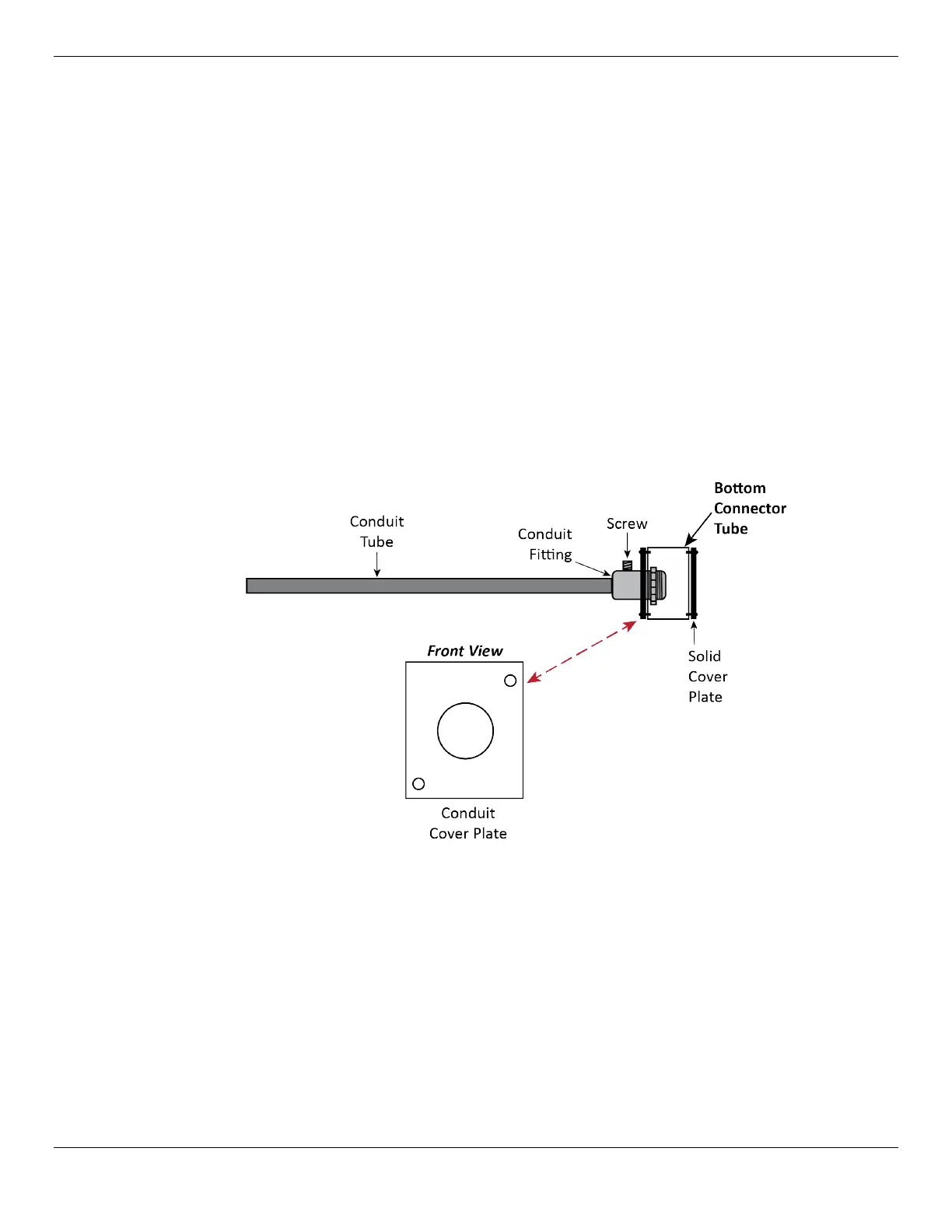

The following drawing shows how to attach the Conduit Tube to the Bottom Connector Tube.
Not to scale. Not all components are shown. Side view.
To attach the Conduit Tube:
1. Find the Conduit Cover Plate, Solid Cover Plate, and the Conduit Fitting.
2. Attach the Conduit Fitting to the Conduit Cover Plate, then attach the Conduit Cover Plate to the
Window on the Bottom Connector Tube.
Use two M6 x 1 x 10 Screws.
3. Attach the Solid Cover Plate to the Window on the Connector Tube facing to the front of the Lift.
Use two more M6 x 1 x 10 Screws.
4. Connect the Conduit Tube to the Conduit Fitting, then adjust the screw on the Fitting to hold the
Tube securely in place.
