Autostacker™ Parking Lift 61 P/N 5900002 — Rev. D — August 2019
7. Connect the remaining 16-6 wires to the 14-4 wires coming out of the Bottom Connector Tube.
Refer to Wiring Diagrams for wiring information.
8. Attach the Control Box to the Stand using a Bolt, Washer, and Nut in each hole, placing the Safety
Placard Bracket between the Control Stand Plate and a Washer.
Use size M6 X 1 X 25 Bolts.
Position the Control Box so that the Buzzer is facing down, to protect from the outdoor elements.

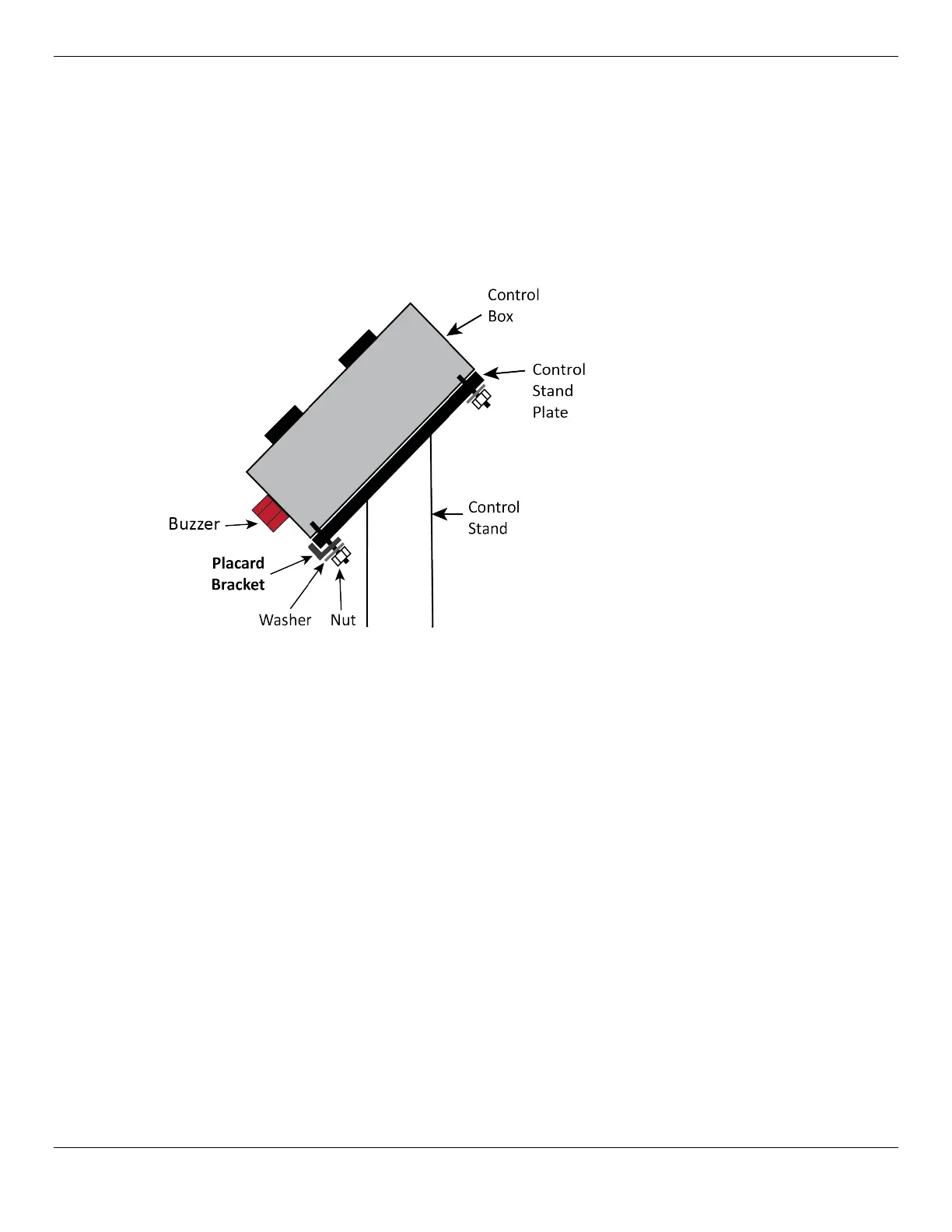

The following drawing shows how to orient the Placard Bracket on the Control Stand.
Not necessarily to scale. Not all components shown. Side view.
9. Attach the Key Ring and Safety Placard to the Bracket.
10. Connect the Control Stand to the Bottom Connector Tube using the supplied Bolts.
