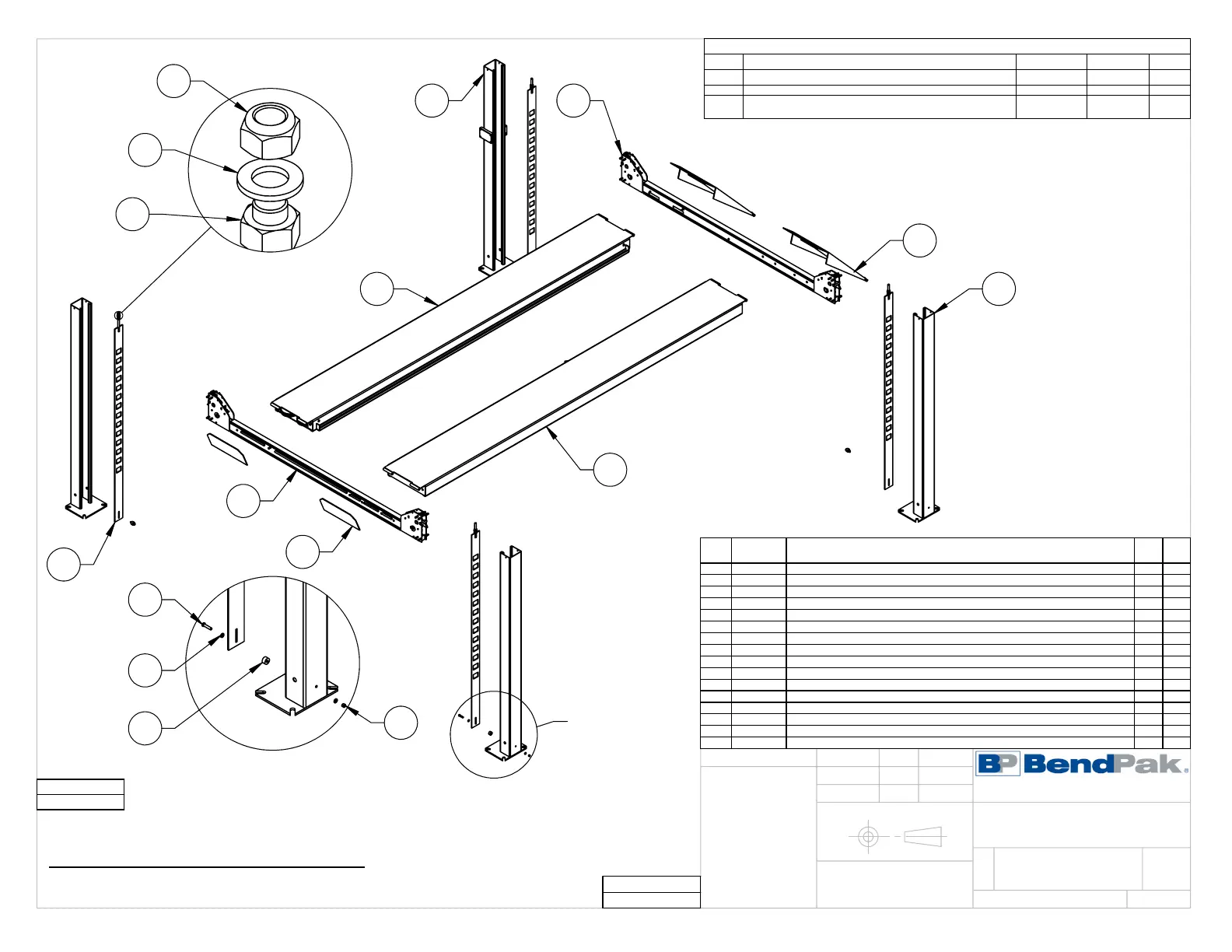

DIMENSIONS ARE IN MM
☺
B
4
5
2
8
3
9
1
7
6
DETAIL A
SCALE 1 : 2
11
10
12
DETAIL B
SCALE 1 : 20
14
13
15
16
NEXT ASSEMBLY
5260516
ITEM
NO.
PART
NUMBER
DESCRIPTION QTY REV
1 5216155 HD-7/9/973P CROSSTUBE ASSEMBLY, SMALL WINDOW 1 A
2 5216156 HD-9/973P CROSSTUBE ASSEMBLY, LARGE WINDOW 1 A
3 5601135 HD-9/7500BL OFF SIDE POST WELDMENT 3 A
4 5601136 HD-9/7500BL POWER SIDE POST WELDMENT 1 A
5 5600920 HD-9/7500 SAFETY LADDER WELDMENT 4 B
6 5215190 HD-9/7500BL POWER SIDE RAMP ASSEMBLY 1 AC
7 5600203 HD-9/7500BL OFF SIDE RAMP WELDMENT 1 H
8 5600890 HD-7/7500/9 TIRE STOP PLATE WELDMENT 2 F
9 5215193 HD-7/9/7500BL DRIVE UP RAMP ASSEMBLY 2 G
10 5535021 NUT M16 x 2.0 4 -
11 5535008 NUT M16 x 2 NL 4 -
12 5545025 WASHER, M16 x 30mm FLAT 4 -
13 5746381 HD-7/7500/ 9 SPACER, SAFETY LADDER, 17.5mm LG 4 B
14 5535013 NUT M10 x 1.5 NL 4 -
15 5545341 WASHER M10 x Ø20 FLAT 8 -
16 5530167 HHB M10 x 1.5 x 45mm 4 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
V UPDATED BOM REVISION 07/14/2021 TM 01316
W UPDATED BOM REVISIONS 12/13/2021 TM 01367
X
REPLACED 5215621 WITH 5216155, AND
5215622 WITH 5216156
05/24/2022 TM 01414
WHERE USED
HD-9
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
X
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5245383
HD-9 LIFT
SUPERSTRUCTURE
08/11/2014
DO NOT SCALE DRAWING
1:40
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
THREAD M16 HARDWARE ONTO LADDER BOLTS AS SHOWN 2.
