Creating Chalk Line Guides
Create the Chalk Line Guides so that the outside edges of all four Posts fit into the four corners
created by the Chalk Line Guides.
See Specifications to determine the Overall Width and Outside Length values for your Lift.
Note: Do
not use the Overall Length value; this includes the Ramps, which are not taken into
consideration for creating Chalk Line Guides.

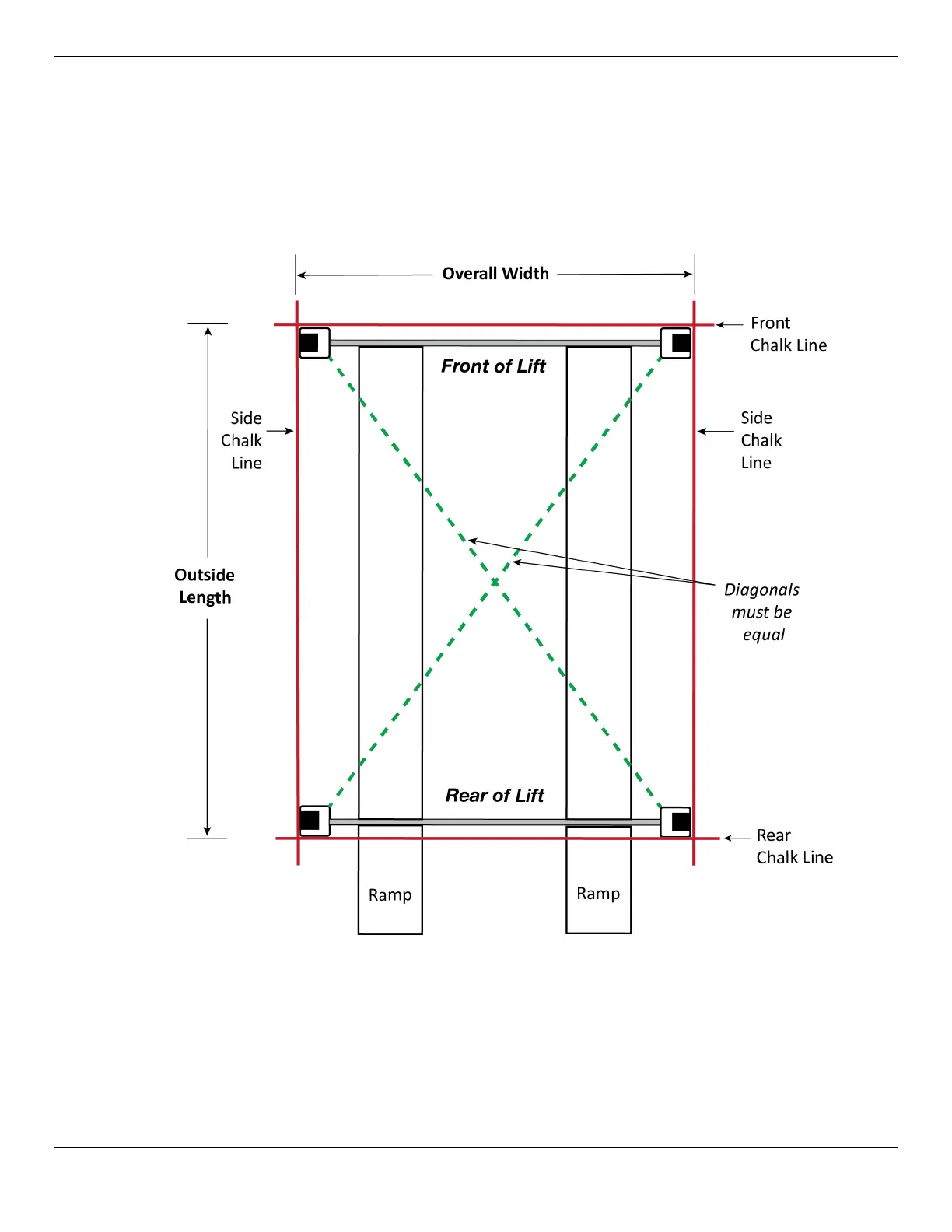

Top View. Not drawn to scale. Not all components shown.
