Removing the Sheaves
In order to route the Lifting Cables, you need to remove the Cable Sheaves on the underside of the
Powerside Runway and the four Gusset Sheaves and their Lock Pins.
When you remove the Sheaves,
keep the components together
. You will be reinstalling them at
the same location, using the same components.

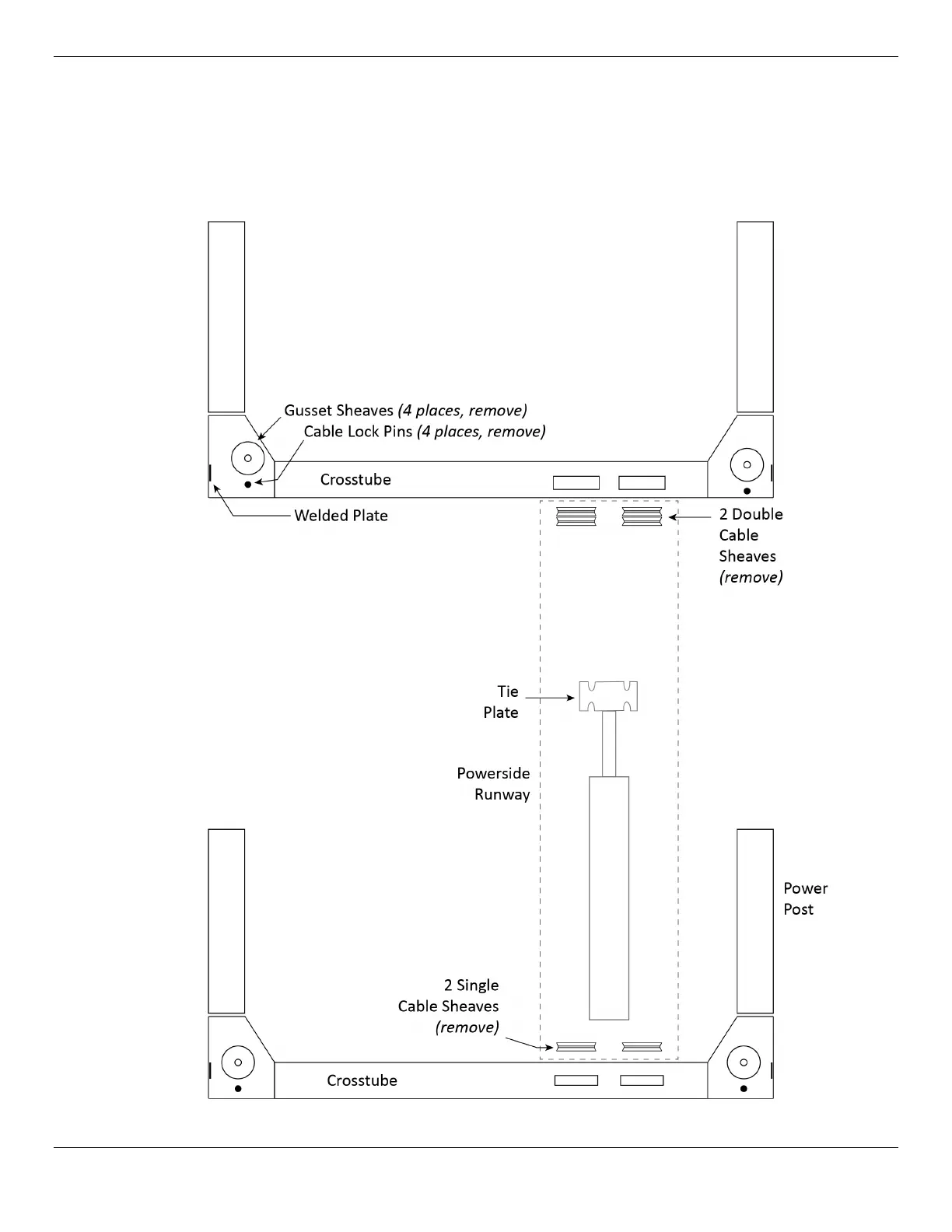

Drawing combines Top and Side views. Not necessarily to scale. Not all components shown.
