HD-9 Series Four-Post Lifts 49 P/N 5900123 — Rev. M — February 2020

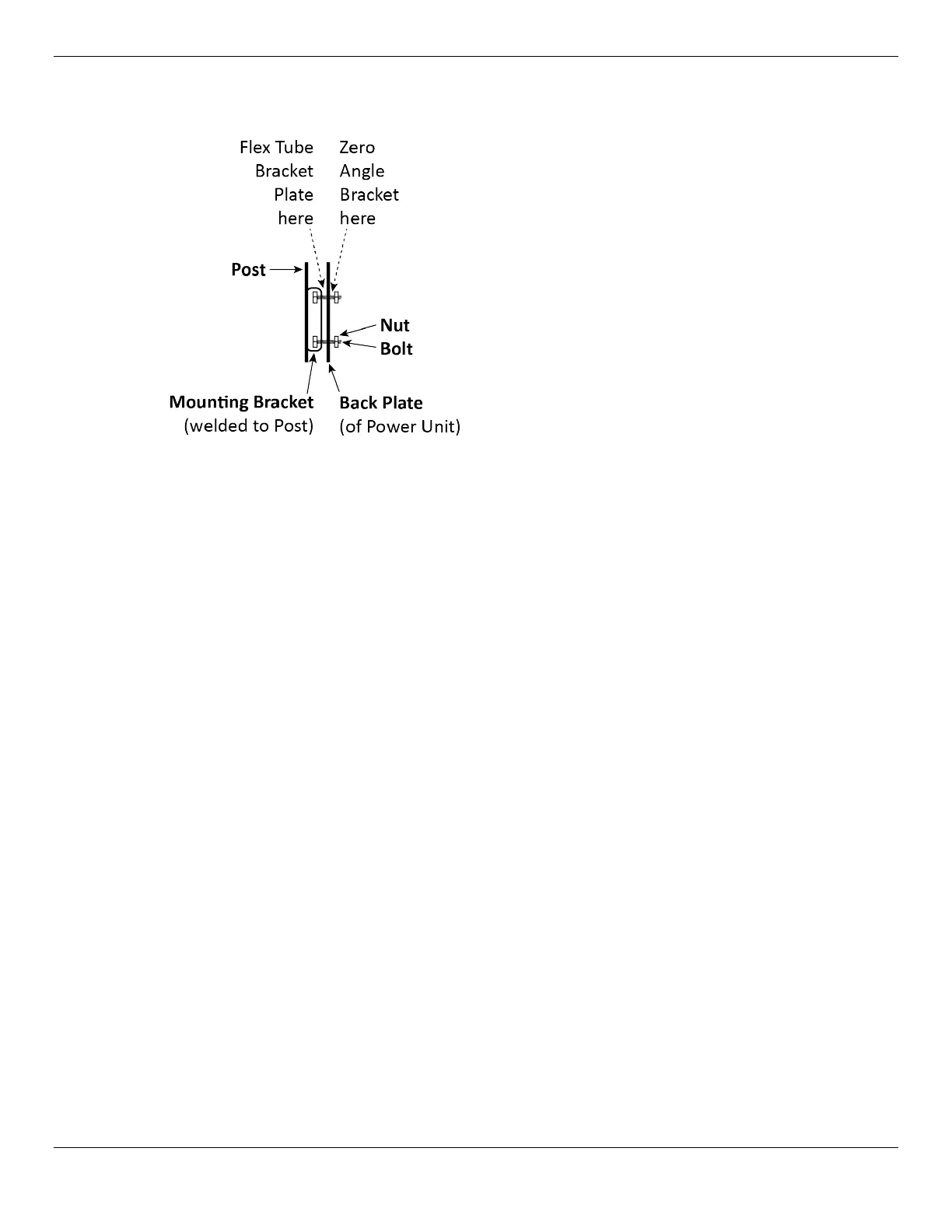

The following drawing describes how to position the Flex Tube Bracket Plate between the Mounting
Bracket and Back Plate.
Side view of where the Power Unit attaches to the Power Post. Not necessarily to scale.
3. Connect the Flex Tube Angle Plate to the Flex Tube Bracket Plate so that the holes for the Flex
Tubes are best positioned for connecting the Return Line, the Air Line, and the Hydraulic Hose.
The Flex Tube Angle Plate can be connected on either side of the Flex Tube Bracket Plate.
4. When the Flex Tube Angle Plate is in place, unscrew the Plastic one of the Flex Tubes.
5. Holding the Flex Tube by the Plastic Collar, put the Threads through the hole on the Flex Tube
Angle Plate
from underneath .
6. Screw the Plastic Nut back onto the Threads and tighten.
