HD-9 Series Four-Post Lifts 55 P/N 5900123 — Rev. M — February 2020

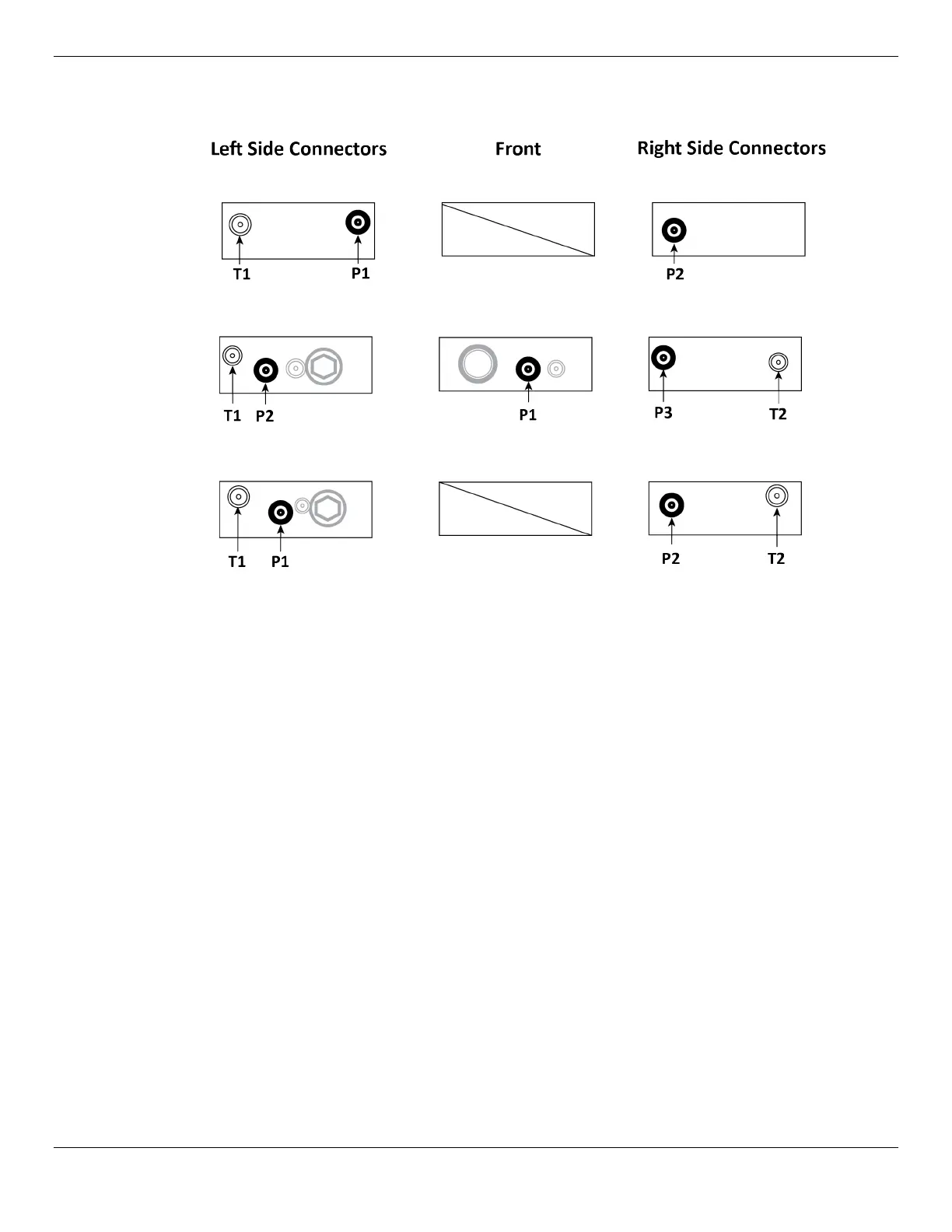

The following drawing shows the possible connector locations, depending on the Power Unit you may
have.
Not drawn to scale. Not all components shown.
To connect the Lift to a power source:
1. Have a certified, licensed Electrician locate the Pigtail coming out of the Electrical Box on the
Power Unit.
2. Open the Electrical Box, remove the Pigtail, and then either:
– Wire the Power Unit directly into the facility’s electrical system.
– Wire a Power Cord (with appropriate plug) inside the Electrical Box to the wiring that was
connected to the Pigtail.
The Power Cord and Plug are
not
supplied with the Lift.
See Wiring Diagrams for more information.
