BendPak HDS-14X - Page 50

50
DIMENSIONS ARE IN MM
☺
A
7
6
8
1
4
5
3
2

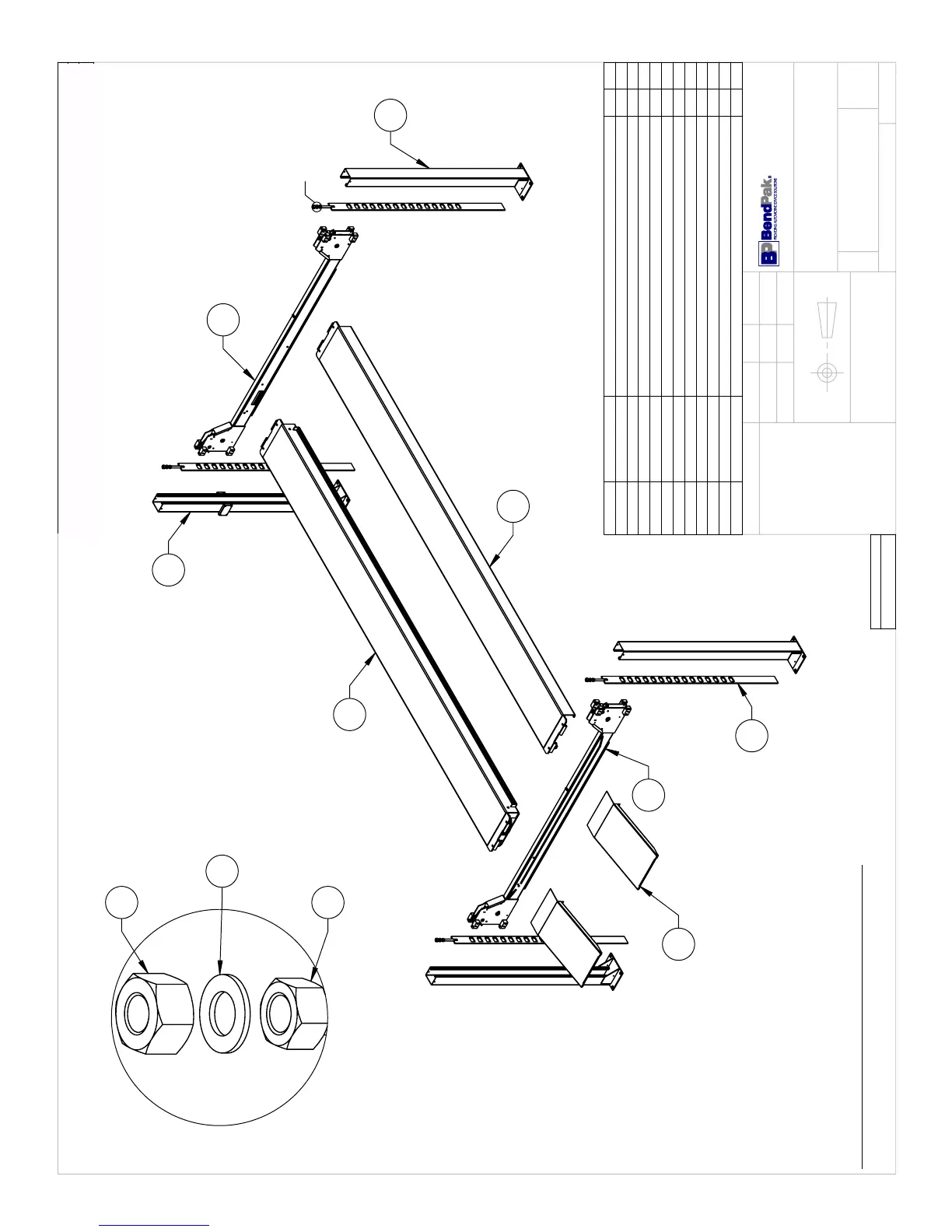

DETAIL A
SCALE 1 : 2
9
11
10
NEXT ASSEMBLY
5260521
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5215663
HDS-14 CROSSTUBE ASSEMBLY, SMALL WINDOW
1
A
2 5215104
HD/S-14 SERIES DRIVE UP RAMP ASSEMBLY
2
G
3 5215597
HDS-14 CROSSTUBE ASSEMBLY, LARGE WINDOW
1
C
4 5215241
HDS-14X POWER SIDE RAMP ASSEMBLY
1
J
5 5600289
HDS-14X OFF SIDE RAMP WELDMENT
1
C
6 5620236 HDS-14 POST WELDMENT 3
C
7 5620237
HDS-14 POST WELDMENT, POWER SIDE
1
C
8 5600915
HDS-14 SERIES SAFETY LADDER WELDMENT
4
A
9 5535017
NUT M20 x 2.5 NL
4
-
10 5535303
NUT M20 x 2.5
4
-
11 5545343
WASHER, M20 FLAT
4
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5245177
08/04/2014
TM
00664
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5245399
HDS-14X LIFT
SUPERSTRUCTURE
08/04/2014
DO NOT SCALE DRAWING
1:45
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
ASSEMBLE ITEMS AS SHOWN
