RBJ Series of Rolling Bridge Jacks 14 P/N 5900004 — June 2018 — Rev. C2

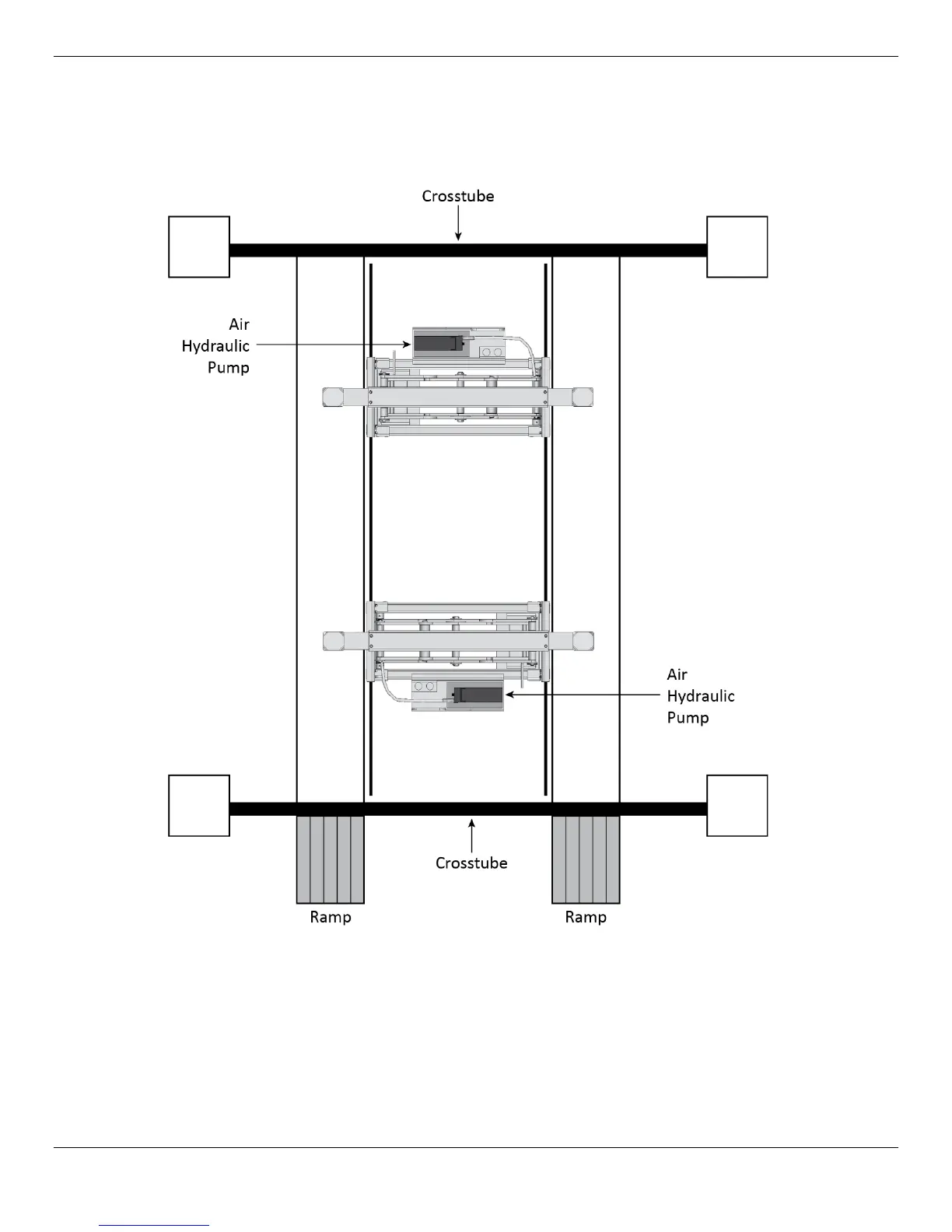

• Orient the Air-Operated Hydraulic Pump correctly. You need to orient each Rolling
Bridge Jack such that the Air-Operated Hydraulic Pump is facing the Lift’s Crosstube, the outside
of the Lift. This makes it easier to route the integrated air lines and access the pump.
When using two Rolling Bridge Jacks on a Lift, orient both pumps towards the outside of the Lift.
Drawing not necessarily to scale. Not all components shown.
Note: HDSO model Lifts do not have a front crosstube; they are open in the front. If you have two
Rolling Bridge Jacks on an HDSO Lift, orient the Air-Operated Hydraulic Pump on the
Rolling Bridge Jack at the front of the Lift towards the open front of the Lift.
