RBJ Series of Rolling Bridge Jacks 17 P/N 5900004 — June 2018 — Rev. C2
10. Install Safety Brackets
on both sides of the Rolling Bridge Jack
.

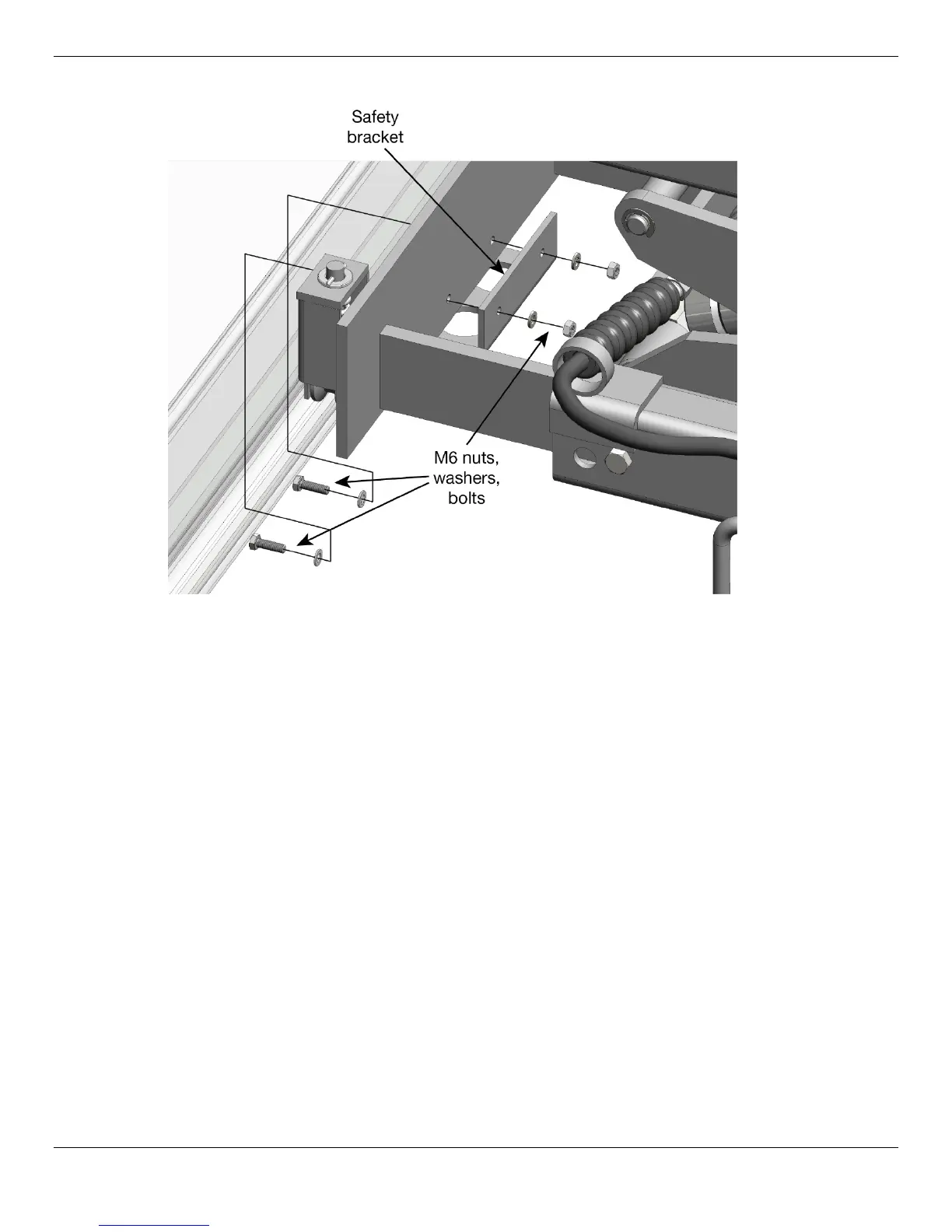

This drawing shows the Safety Bracket being installed on one side of the Rolling Bridge Jack;
make sure to install the Safety Bracket on
both
sides.
⚠ WARNING You are
required
to install Safety Brackets on each end of the Rolling Bridge
Jack. They help ensure the Jack stays in place on the Utility Rails.
The two bolts and washers on the Utility Rail side were put into place earlier; the two nuts and
washers are put on from the Jack side. If the bolts and washers were not put into place earlier, you
will need to raise the Jack up in order to put them in.
11. If you are installing two Jacks on the Lift, install the Safety Brackets on the second Jack.
12. Raise the Lift (so that the Rolling Bridge Jack is off the ground) and put it on a Safety Lock.
If you put the Lift on a Safety Lock in Step 1, you can ignore this step.
⚠ WARNING Do not start using the Rolling Bridge Jack until you are certain the Lift is securely
situated on a Safety Lock.
13. Check the clearance and movement of the Rolling Bridge Jack.
Make sure the Rollers are centered in the Utility Rail Channel or on the Utility Rail Lip at all points
along the usable portion of the Utility Rail.
14. If necessary, make adjustments to ensure proper operation.
Do not use your Rolling Bridge Jack unless it is safe to do so!
