73
DIMENSIONS ARE IN MM
☺
NEXT ASSEMBLY
5260434 5260448 5260452
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5174218
XPR CLEARFLOOR EXTENDED PARTS BAG
1
J
2 5505116
XPR-7/7A/9/10 LIFT HEAD PIN WELDMENT
4
C
3 5595368
XPR-10 EXTENDED CABLE ASSY Ø10 x 11296mm DBST
2
A
4 5570832
XPR CLEARFLOOR HYDRAULIC HOSE ASSY Ø6.35 x
2299mm SB
1
E
5 5570017
XPR HYDRAULIC HOSE ASSY Ø10 x 1219mm SB
1
C
6 5595104
XPR-7A/7TR/10/10A EXTENDED Ø2.4 X 8839 SAFETY CABLE
1
D
7 5570005
XPR-7TR/10 EXTENDED HYDRAULIC HOSE ASSY Ø6.35
x 9233 SB
1
D
8 5210007
XPR POWER SIDE SAFEY ASSEMBLY
1
F
9 5210010
XPR OFF SIDE SAFETY WELDMENT
1
E
10 5715003
POWER UNIT VIBRATION DAMPENER
1
B
11 5215507
ROUND LIFT PAD ADAPTER ASSEMBLY
4
E
12 5730663
GP-7/RTL-8000/XPR-7/9/10 POST ASSEMBLY LIFT
HEAD FOOT GUARD R.H.
2
D
13 5730664
GP-7/RTL-8000/XPR-7/9/10 POST ASSEMBLY LIFT
HEAD FOOT GUARD L.H.
2
D
14 5736604
TWO POST LIGHT DUTY BOLT ON ARM RESTRAINT
GEAR
4
E
15 5600163
XPR CLEARFLOOR POWER SIDE SAFETY COVER
1
D
16 5210009
XPR-7A/7TR/7TRFD/ 9D/10/12/12FD/15/18C OFF SIDE
SAFETY COVER
1
D
17 5746389
GP/XPR SHORT LIFT PAD EXTENSION (95mm LG.)
4
B
18 5746390
GP/XPR/RJ/MD-6XP MEDIUM LIFT PAD EXTENSION
(113mm LG.)
4
D
19 5746395
GP/XPR/RJ LONG LIFT PAD EXTENSION (182mm LG.)
4
C
20 5545342
WASHER M18 FLAT
2
-
21 5535358
NUT M18 x 2.5 NL
2
-
22 5540281
C RING Ø38mm OD 5103-150
4
A
23 5746167
DOUBLE THREADED ROD M10 x 1.5 x 275
2
B
24 5525150
SPDT MICRO SWITCH;25A@125VAC
1
A
25 5525112
MICRO SWITCH COVER-5PA2
1
-
26 5520116
14-4 SJO UL 62 CABLE 300vac
4275mm*
-
27 5716634
XPR MICROSWITCH COVER, PLASTIC
1
A
28 5570176
XPR-9D/10 HYDRAULIC HOSE EXTENSION ASSY Ø6.35
x 330mm DS
1
D
29 5550095
FTG NPL -04 JIC x -04 JIC
1
-
30 5530307
AB 3/4" x 5"
12
-
31 5905151
SAFETY TIPS CARD ALI-ST 90
1
-
32 5900147
SAFETY MANUAL ALI / SM 93-1
1
-
33 5900152
ALIGN OIM OPERATION INSPECTION &
MAINTENANCE
1
-
34 5900280
ALI/LP FRAME ENGAGING LIFTS GUIDE
1
-
35 5900151
BENDPAK #90 WARRANTY CARD
1
-
36 5900047 XPR-7A/10/10A INSTALLATION MANUAL 1
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
D
REPLACED 5700400 WITH 5716634, REMOVED
5215637 AND 5905326, UPDATED BOM
REVISIONS
10/06/2014
TM
00663
E
UPDATED BOM REVISIONS
11/24/2014
TM
00673
F
ADDED 5746389, REPLACED 5540129 WITH
5540281, REMOVED 5905109, 5905131, 5905403,
5905465, 5905655, 5905940, 5930625, UPDATED
BOM REVISION
05/15/2015
TM
00689
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
TM
5250243

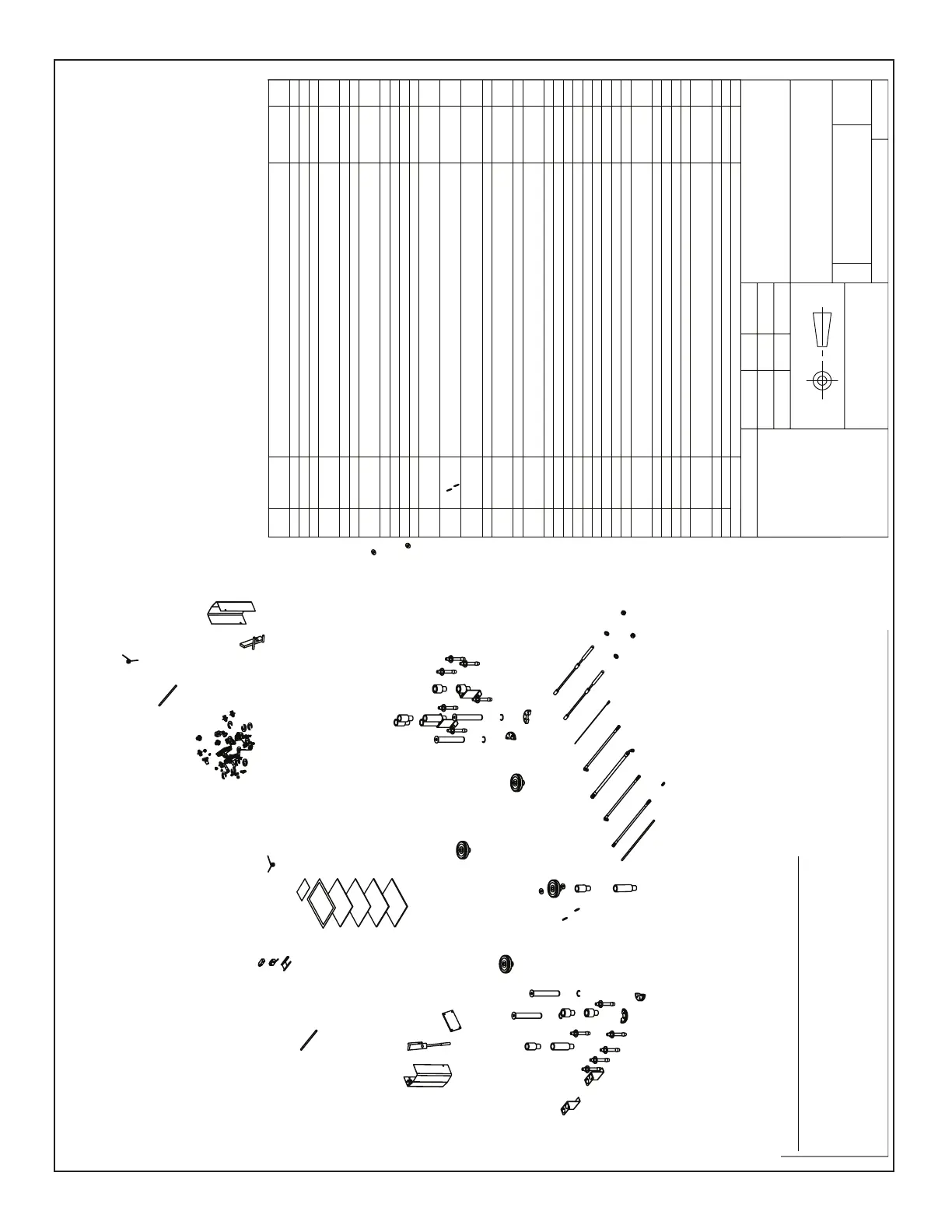

XPR-10 EXTENDED
PARTS BOX
07/01/2013
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
INSERT PARTS BAG INTO PARTS BOX FOR SHIPMENT
2.
THREAD 5535358 WITH 5545342 ONTO CABLES FOR SHIPMENT
3.
HOSES AND CABLES IN REPRESENTATIONAL FORM
4.
FOR 5220116 SPECIFICATIONS REFER TO PART SPECIFICATION
5.
FORM (*)5520116 QTY FOR REFERENCE ONLY
NOTE: UNLESS OTHERWISE SPECIFIED
.
5900958
