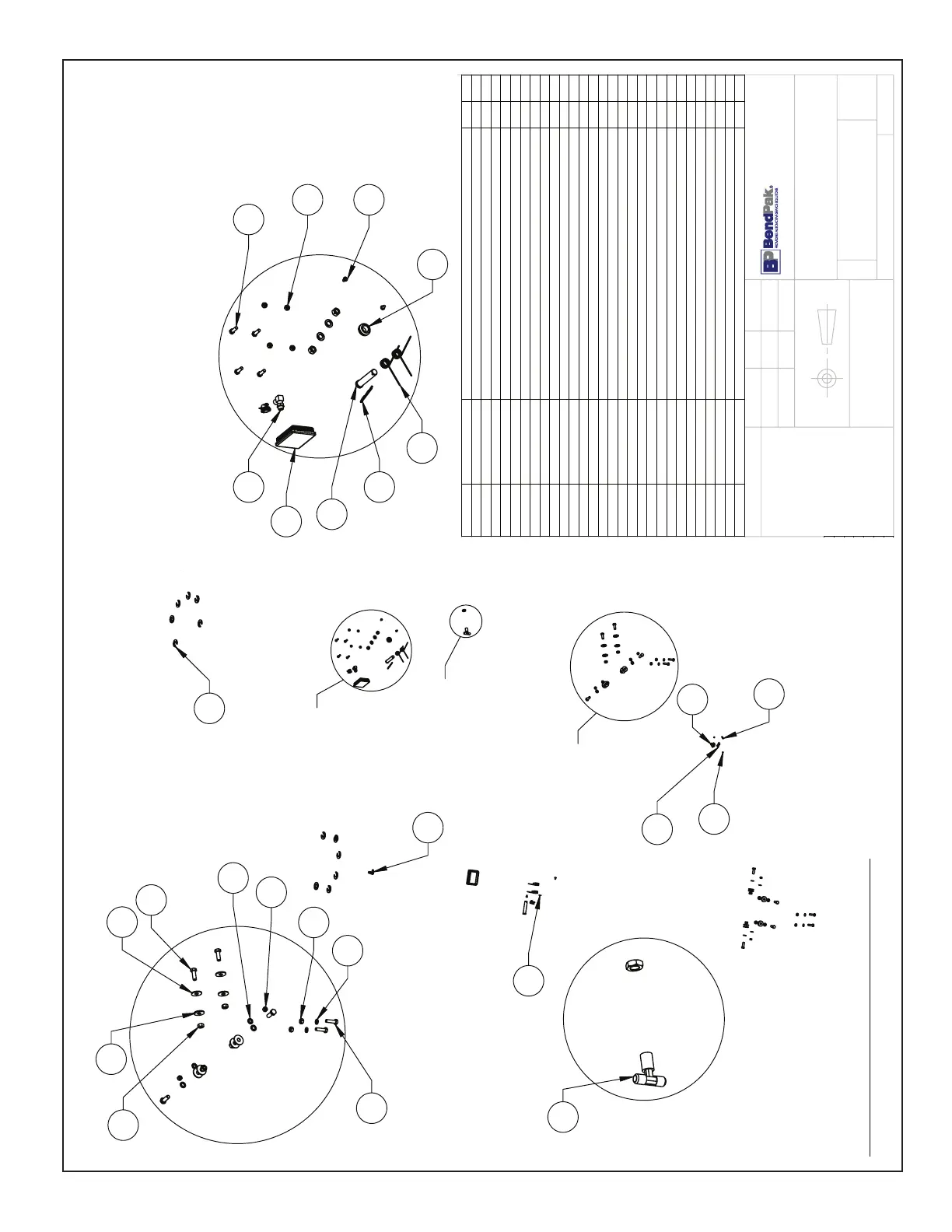

BendPak XPR-10-LP - Page 74

74
DIMENSIONS ARE IN MM
☺
A
B
C
21
22
4
25
27
26
28
DETAIL A
SCALE 1 : 15
16
14
15
19
18
10
17
24
23
DETAIL B
SCALE 1 : 12
1
20
7
8
5
13
12
2
11
DETAIL C
SCALE 1 : 6
6
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
G
ADDED (2) 5540075, REPLACED 5530314 WITH
5530261, REPLACED 5540001 WITH 5540075,
UPDATED TITLE TO REFLECT WHERE USED,
UPDATED BOM REVISION AND NEXT ASSEMBLIES
06/27/2013
TM
00605
H
REPLACED 5545251 WITH 5545500, REPLACED
(8) 5545347 WITH 5545027, ADDED (8) 5545027,
UPDATED BOM REVISION
04/23/2014
TS
00649
J
REPLACED 5505113 WITH 5505001, UPDATED
NEXT ASSEMBLY
10/06/2014
TM
00663
NEXT ASSEMBLY
5250214 5250222 5250223 5250057 5250242 5250243
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5505001
GP-7/PL-6000/XPR SERIES SAFETY CLEVIS PIN
2
A
2 5715196
XPR PLASTIC COVER BLOCK 105 x 80
2
C
3 5535022
NUT 9/16"-18 JN
1
-
4 5550113
FTG ELB -04 NPT L x -04 JIC
2
-
5 5550183
FTG ELB -06 JIC -06L ORB
1
-
6 5550003
FTG TEE -04JIC -04JIC -06JIC
1
-
7 5505350 MODEL#211 HAIR PIN/ LARGE 2
-
8 5530261
PHPS M6 x 1 x 10
4
-
9 5545347
WASHER, M12 FLAT WASHER
2
-
10 5535354
NUT M12 x1.75
10
-
11 5520001
RUBBER GROMMET, 3/4 I.D.
1
-
12 5535001
NUT M8 x 1.25 NL
4
-
13 5530010
HHB M8 x 1.25 x 25
4
-
14 5545200
WASHER M10 x Ø18 SL
4
-
15 5535998
NUT M10 x 1.5
4
-
16 5530760
HEX HEAD BOLT M10x1.25x35
4
-
17 5545201
WASHER, M12 SPRING LOCK
8
-
18 5545027
WASHER M12 x Ø37 x 3mm
16
-
19 5530076
HHB M12 x 1.75 x 35mm
8
-
20 5540075
2.5 WIRE DIA., Ø20.5 x 75 LG
4
A
21 5530750
STS M4.2 x 1.7 x 6
2
-
22 5545535
C WASHER SHIM FOR LIFTS
20
-
23 5535013
NUT M10 x 1.5 NL
4
-
24 5545341
WASHER M10 x Ø20 FLAT
4
-
25 5505031
ROTOR CLIP 12mm SS
1
-
26 5530115
BHS 6-32 x 1.25
2
-
27 5535190
HN 6-32
2
-
28 5520140
ROMEX CONNECTOR 3/8 #6623
2
-
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
J
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5174218
XPR CLEARFLOOR
EXTENDED PARTS BAG
01/26/2010
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
MR
10/22/2014
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
