BendPak XPR-10-LP - Page 77

77
DIMENSIONS ARE IN MM
☺
7
10
12
3
6
5
4
13
1
11
2
8
14
9
NEXT ASSEMBLY
LIFT ACCESSORY
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5210269
XPR-7/7TR/10 POST EXTENSION WELDMENT
2
E
2 5595837
XPR-7A/10A EXTENDED CABLE ASSY Ø10 x 11219mm DBST
1
A
3 5595923
XPR-7A/10A EXTENDED CABLE ASSY Ø10 x 11335mm DBST
1
A
4 5545342
WASHER M18 FLAT
2
-
5 5535358
NUT M18 x 2.5 NL
2
-
6 5595104
XPR-7A/7TR/10/10A EXTENDED Ø2.4 X 8839 SAFETY
CABLE
1
D
7 5570059
XPR-7A/10A EXTENDED HYDRAULIC HOSE ASSY
Ø6.35 x 9308 SB
1
A
8 5570065
XPR-7A/10A HYDRAULIC HOSE EXTENSION ASSY
Ø6.35 x 203mm DS
1
B
9 5520116
14-4 SJO UL 62 CABLE 300vac
4275mm*
-
10 5530076
HHB M12 x 1.75 x 35mm
8
-
11 5545201
WASHER, M12 SPRING LOCK
8
-
12 5545027
WASHER M12 x Ø37 x 3mm
16
-
13 5535354
NUT M12 x1.75
8
-
14 5550095
FTG NPL -04 JIC x -04 JIC
1
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE,DERIVED FROM 5240842
10/07/2014
TM
00663
B
REPLACED 5570005 WITH 5570059, UPDATED
BOM REVISIONS
11/24/2014
TM
00673
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5240806

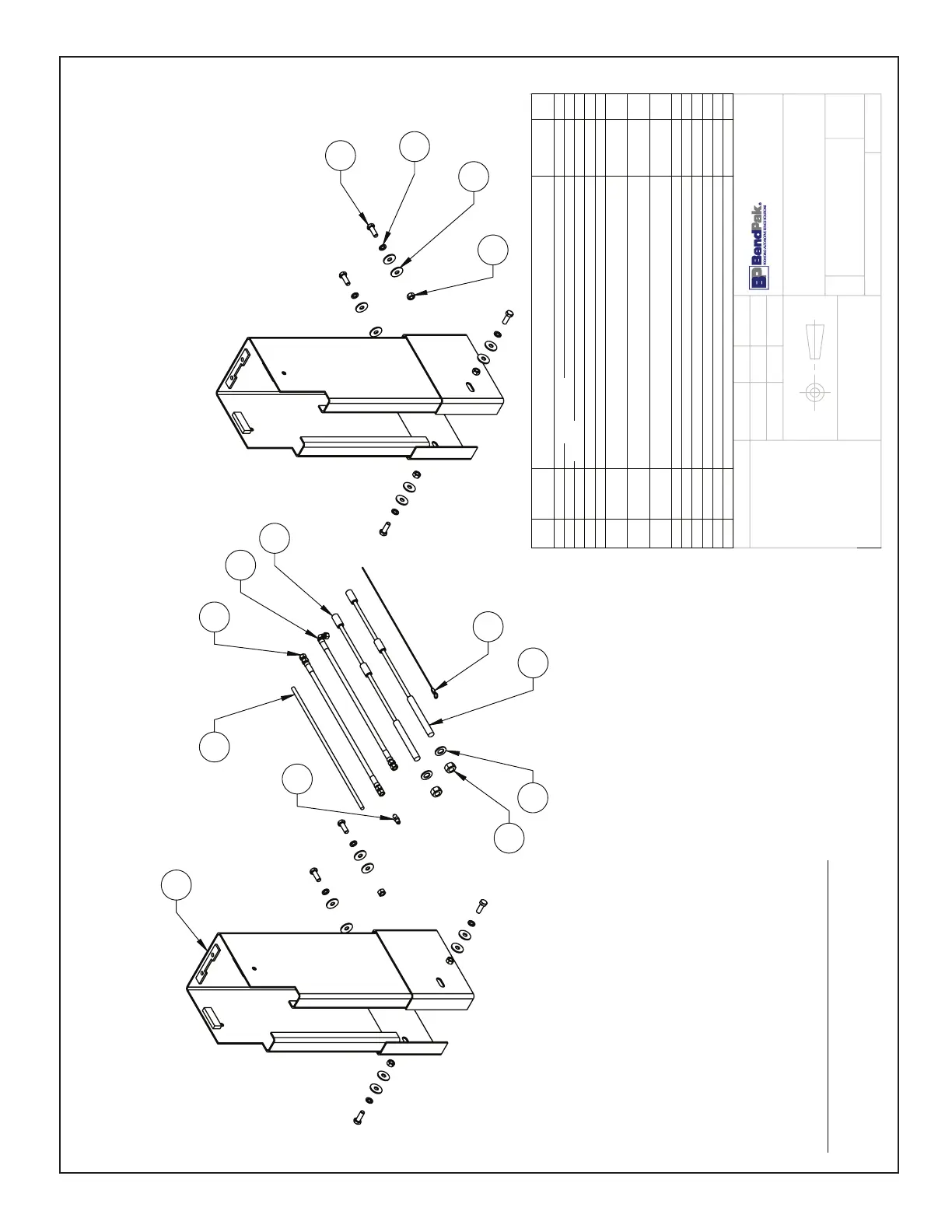

XPR-7A/10A EXTENSION KIT
10/07/2014
DO NOT SCALE DRAWING
1:12
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
THREAD 5535358 ONTO CABLES WITH 5545342 FOR SHIPMENT
2.
(*) 5520116 QTY FOR REFERENCE ONLY
3.
XPR-10A EXTENSION KIT
XPR-
XPR-
XPR-
XPR-
XPR-
XPR-
