76

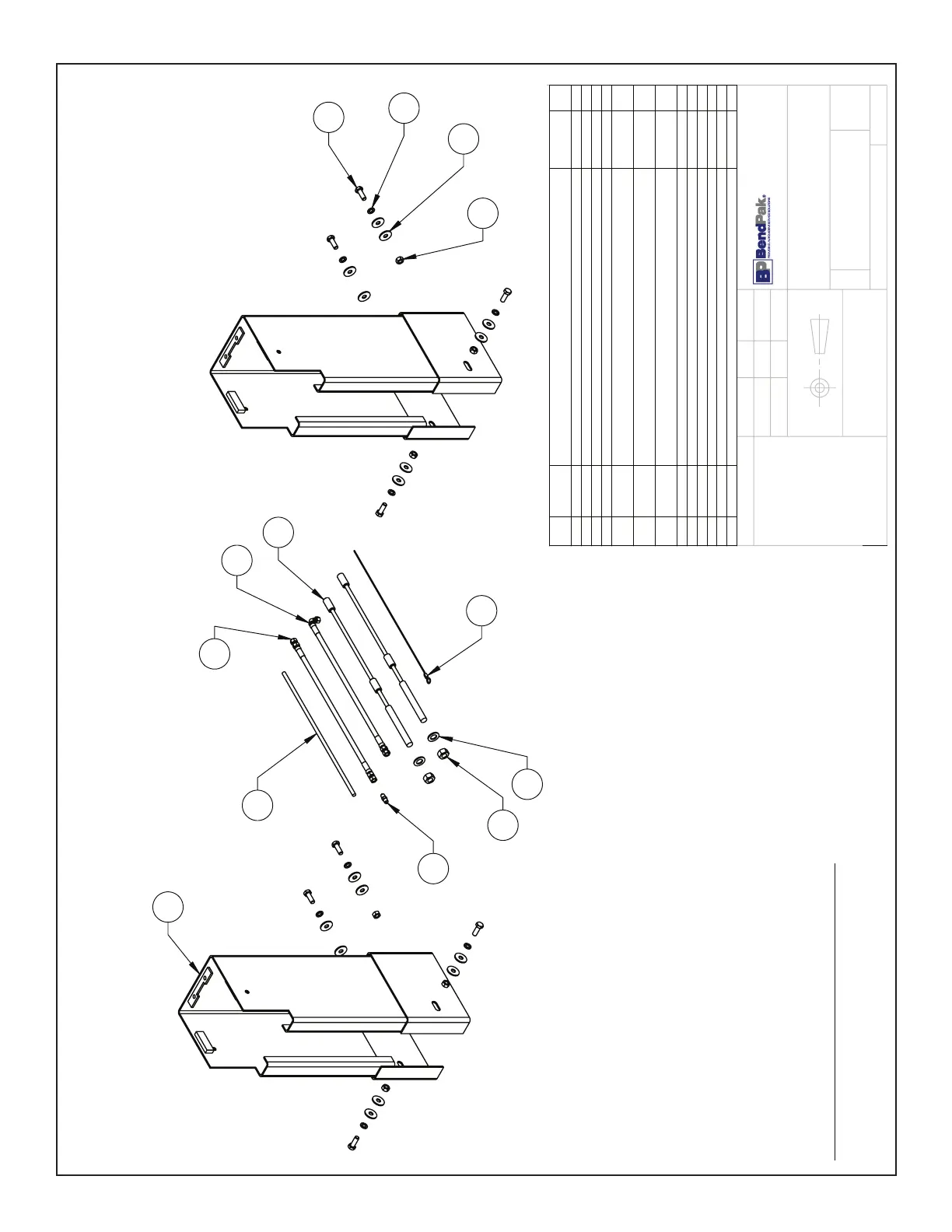

DIMENSIONS ARE IN MM
☺
6
9
11
2
5
4
3
12
1
10
13
8
7
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
D
UPDATED BOM REVISION
09/05/2013
TM
00615
E
REPLACED 5545347 WITH 5545027, ADDED (1)
5545027, ADDED 5520116
04/25/2014
TS
00649
F
UPDATED BOM REVISIONS
11/24/2014
TM
00673
NEXT ASSEMBLY
LIFT ACCESSORY
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5210269
XPR-7/7TR/10 POST EXTENSION WELDMENT
2
E
2 5595368
XPR-10 EXTENDED CABLE ASSY Ø10 x 11296mm DBST
2
A
3 5545342
WASHER M18 FLAT
2
-
4 5535358
NUT M18 x 2.5 NL
2
-
5 5595104
XPR-7A/7TR/10/10A EXTENDED Ø2.4 X 8839 SAFETY
CABLE
1
D
6 5570005
XPR-7TR/10 EXTENDED HYDRAULIC HOSE ASSY Ø6.35
x 9233 SB
1
D
7 5570176
XPR-9D/10 HYDRAULIC HOSE EXTENSION ASSY Ø6.35
x 330mm DS
1
D
8 5520116
14-4 SJO UL 62 CABLE 300vac
4275mm*
-
9 5530076
HHB M12 x 1.75 x 35mm
8
-
10 5545201
WASHER, M12 SPRING LOCK
8
-
11 5545027
WASHER M12 x Ø37 x 3mm
16
-
12 5535354
NUT M12 x1.75
8
-
13 5550095
FTG NPL -04 JIC x -04 JIC
1
-
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5240821
XPR-7/10 EXTENSION KIT
09/13/2010
DO NOT SCALE DRAWING
1:12
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
THREAD 5535358 ONTO CABLES WITH 5545342 FOR SHIPMENT
2.
(*) 5520116 QTY FOR REFERENCE ONLY
3.
XPR-10 EXTENSION KIT
XPR-
XPR-
XPR-
XPR-
