About Safety Locks
Your Lift has 14 Safety Lock positions, spaced every three inches; having multiple Safety Lock
positions let you lock the Lift at the best height for what you need to do.
A Safety Lock
position is defined as when the Lift is engaged on both of the Lift’s Safety Locks at the
same height on both Posts.
Important: Always make sure the both Safety Locks are engaged at the same height on both
Posts. You do not want the Lift engaged on Safety Locks of two different heights or the
Safety Lock on one Post engaged but the Safety Lock on the other Post not engaged.
Safety Lock positions are created by the Safety Lock Weldments, which are on the back of each Lift
Head. Safety Lock Weldments hit the Safety Locks and then move past them as the Lift Heads rise.

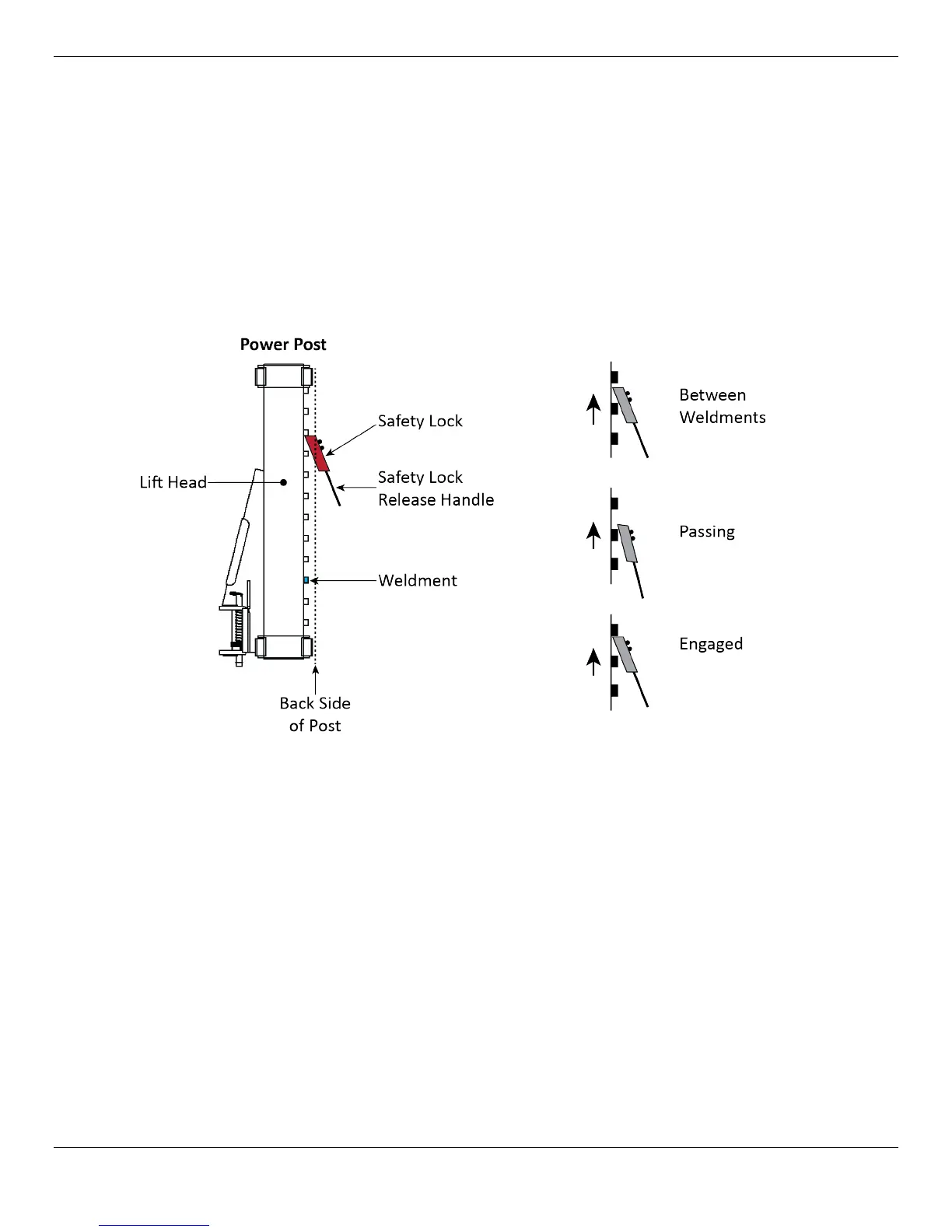

Drawing not necessarily to scale. Not all components shown. Posts not shown for clarity. Offside
Safety Lock not shown.
As they move past the Safety Locks, the Weldments push the Safety Lock and the Safety Lock
Release Handle down (the Safety Lock Release Handle is found on the Powerside Post only). When
the Weldment is completely past the Safety Locks, the Safety Locks clank back into position between
Weldments. This happens each time Safety Locks are passed, so you will generally be hearing multiple
clanks as the Lift rises and lowers.
To engage the Lift on a Safety Lock position, wait until the Vehicle reaches the desired height for the
work you are going to do, then listen for the clank as the Weldments pass the next Safety Lock
position. When you hear the clank, release the Up Button and then hold down the Lowering Handle
(on the front of the Power Unit) for a second or two to back the Weldments down onto the just-passed
Safety Locks;
do not hold down the Safety Lock Release Handle.
⚠ WARNING: Only leave the Lift either fully lowered or engaged on Safety Locks. If you leave
the Lift raised but not engaged on Safety Locks, the Vehicle is not
secure
. It could fall, possibly damaging the Vehicle, the Lift, and injuring anyone
under the Vehicle.

BendPak XPR-10 Series Specifications

General

Capacity	10, 000 lbs
Rise Time	45 seconds
Voltage	220V
Motor	2 HP
Minimum Height	4.5 inches
Overall Height	145" / 3, 683 mm
