BendPak XPR-10AS-168-LP Service Manual

DIMENSIONS ARE IN MM
☺
6
5
1
3
2
4
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV

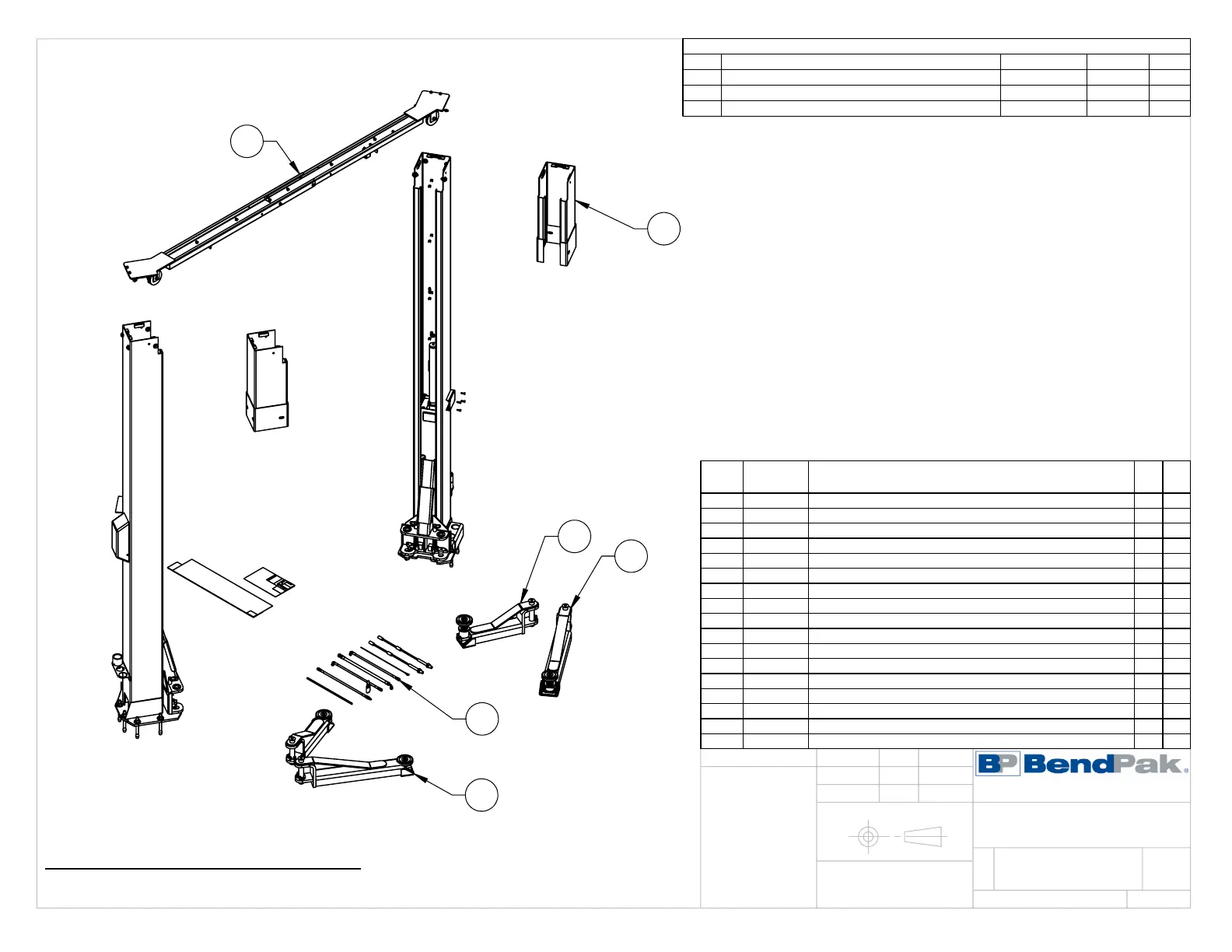

1 5245044 XPR-10AS LIFT SUPERSTRUCTURE 1 M
2 5250087 XPR-10AS EXTENDED PARTS BOX 1 F
3 5215278 XPR-10AS-LP LONG ARM ASSEMBLY, R.H. 1 L
4 5215277 XPR-10AS-LP LONG ARM ASSEMBLY, L.H. 1 L
5 5215276 XPR-10AS-LP SHORT ARM ASSEMBLY 2 L
6 5210269 XPR-10 POST EXTENSION WELDMENT 2 E
- 5905109 WARNING ALI/WL 101 1 -
- 5905131 2 POST DECAL KIT, LESS ALI 1 E
- 5905403 MAX CAPACITY 10K DANGER LABEL, ENGLISH-FRENCH 1 -
- 5905465 MANUFACTURER LABEL 1 -
- 5905940 PRODUCT DATA LABEL 1 -
- 5905951 SERIAL TAG B 1 -
- 5905653 LABEL; ALI-ALCTV-2017 GOLD LABEL, US; MET LABS 1 -
- 5905414 GP/XPR LOCK-RELEASE LABEL 1 -
- 5905285 SERIALTAG EXTERIOR PEEL OFF INVENTORY LABEL 1 -
- 5905655 MAX CAPACITY NTRL 10K LABEL, ENGLISH-FRENCH 1 -
- 5905377 NOTICE LABEL, ALI/WLSIA01 1 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
X UPDATED BOM REVISION 11/03/2020 TM 01226
Y UPDATED BOM REVISION 03/29/2021 TM 01291
Z UPDATED BOM REVISION 06/23/2021 TM 01310
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
Z
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5260559
XPR-10AS-168-LP
PRODUCTION LIFT VER F
12/14/2015
DO NOT SCALE DRAWING
1:35
SCALE:
THIRD ANGLE PROJECTION
OR 07/07/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
