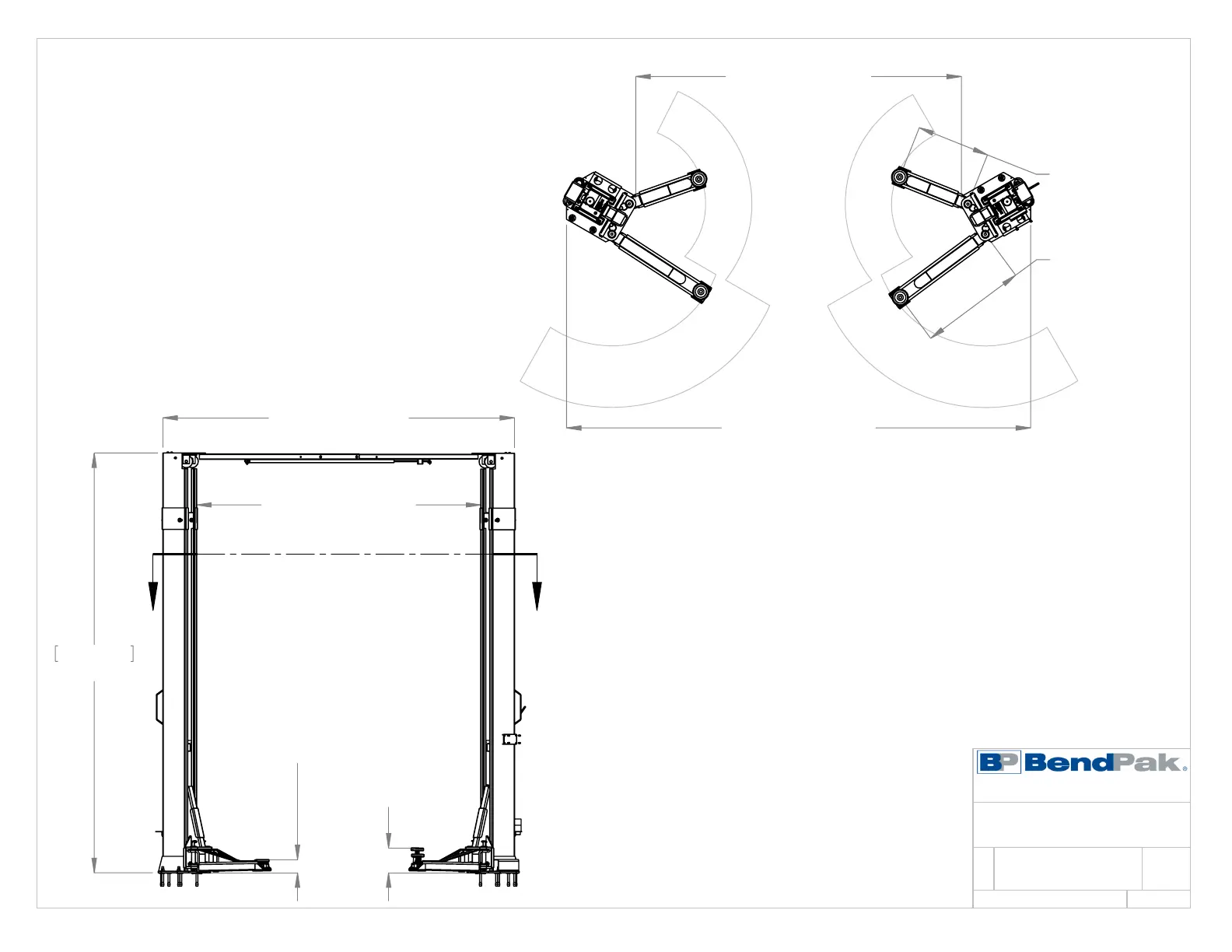

BendPak XPR-10AS-168-LP Service Manual

2700.0- 2903 mm
[106.299-114.280in]
4284.0mm
168.661in
[5.295-80.295in]
134.5-2039.5mm
[9.941-84.941in]
252.6-2157.5mm
WITH 63mm [2.5in] ADAPTER
AND MAX ADJUSTMENT
[133.307-141.343in]
3386.0-3590.1mm
A A
2382.0- 2585.0 mm
DRIVE THRU
[93.780-101.772in]
3480.0- 3683.9 mm
[137.008-145.035in]
[23.835-38.315in]
605.4-973.2mm
[34.882-54.134in]
886-1375mm
SECTION A-A
SCALE 1 : 35
SHEET 2 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
Z
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
5260559
XPR-10AS-168-LP
PRODUCTION LIFT VER F
1:45
SCALE:

BendPak XPR-10AS-168-LP Specifications

General

Brand	BendPak
Model	XPR-10AS-168-LP
Category	Lifting Systems
Language	English
