STEP 5
( Installing The POWERSIDE Column )
1. Before proceeding, double check measurements and
make certain that the bases of each Column are square
and aligned with the chalk line.
2. Using the baseplate on the POWERSIDE Column as a
guide, drill each anchor hole in the concrete approximately
(4-1/2” deep / 9K models & 6-1/2” deep / 12K models ) using a
rotary hammer drill and 3/4” concrete drill. To assure full holding
power, do not ream the hole or allow drill to wobble.
(See Fig. 5.1)
3. After drilling, remove dust thoroughly from each hole
using compressed air and/or wire brush. Make certain that
the Column remains aligned with the chalk line during this
process.
4. Assemble the Washers and Nuts on the anchors then
tap into each hole with a hammer until the Washer rests
against the baseplate. Be sure that if shimming is required
that enough threads are left exposed. (See Fig 5.2)
5. If shimming is required, insert the Shims as necessary
under the baseplate so that when the Anchor Bolts are
tightened, the Columns will be plumb. (See Fig 5.3)
6. If installing the Optional Foot Guards, place the Foot
Guards on the Left and right sides as shown (See Fig. 5.4)
7. With the Foot Guards, shims and anchor bolts in place,
tighten by securing the nut to the base then turning 3-5 full
turns clockwise. DO NOT use an impact wrench for this
procedure. (See Fig. 5.5)
STEP 6
( Installing the Off Side Column )
1. Position the Off Side Column at the designated chalk
locations and secure to the floor following the same
procedures as outlined in Step 5, Items 1-6.
11

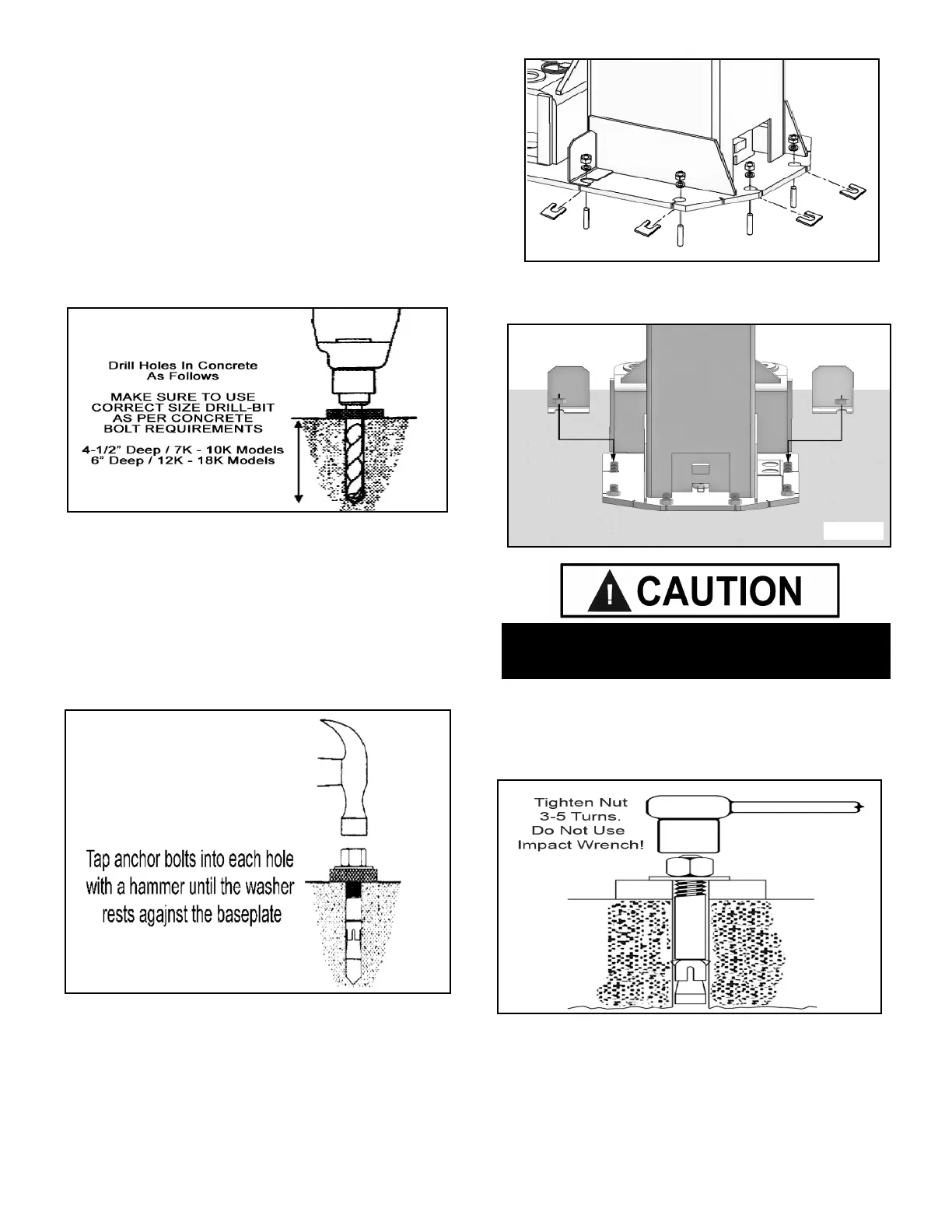

Fig 5.1
Fig 5.3
Fig 5.2
Fig 5.5
CAUTION !
DO NOT use an impact wrench for this procedure.
Fig 5.4
