BendPak XPR-9FD User Manual

18

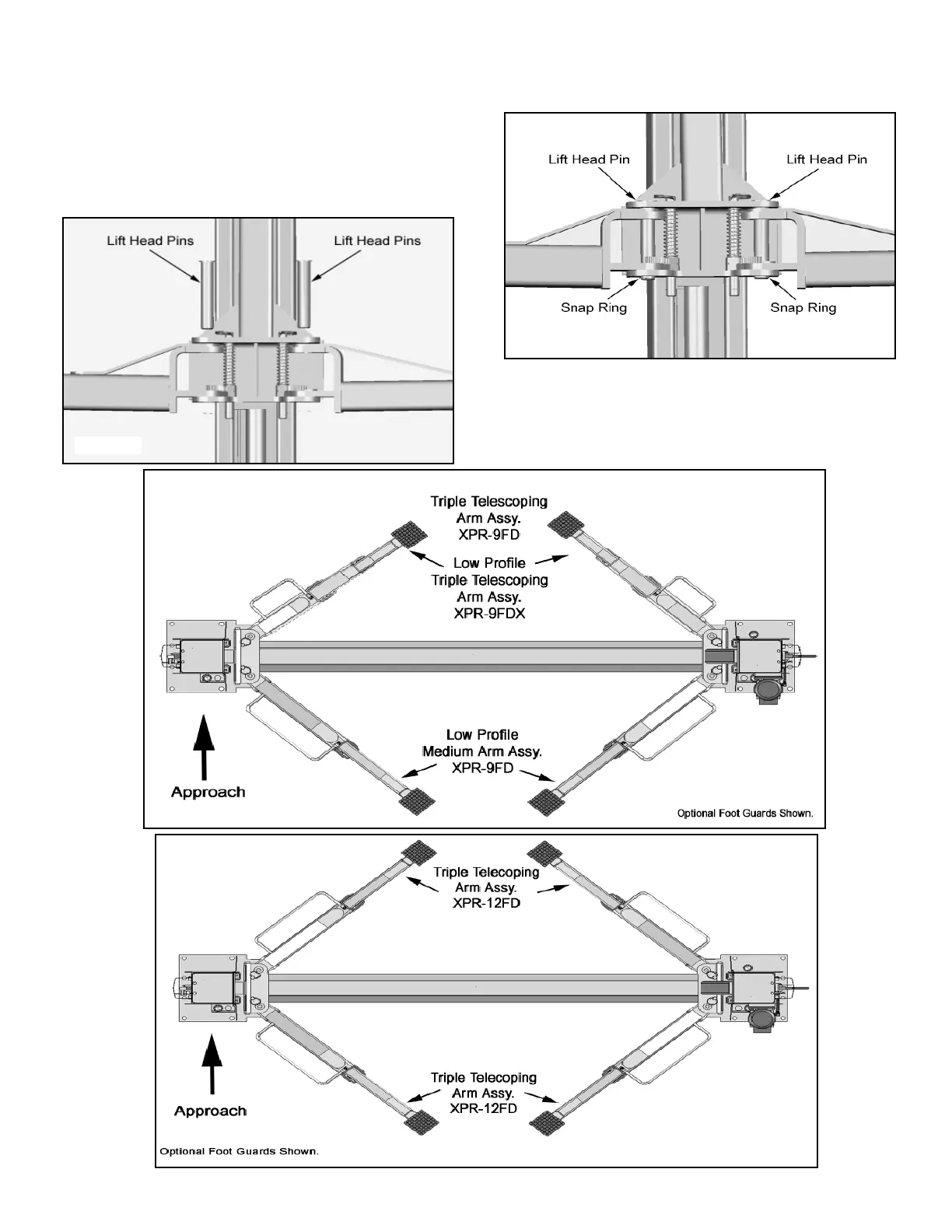

STEP 12
( Installing the Lift Arms )
1. Place the appropriate Lift Arm Assy on the Lift Heads.
(See Fig. 12.3- 12.4)
2. Install the Left Head Pins into the Lift Head and
through the holes in the Arm Assy. (See Fig. 12.1)
3. Install the Snap Ring into the groove in the Lift Head
Pin the under side of the Lift Head. (See Fig. 12.2)
Fig. 12.1
Fig. 12.2
Fig. 12.3
Fig. 12.4
