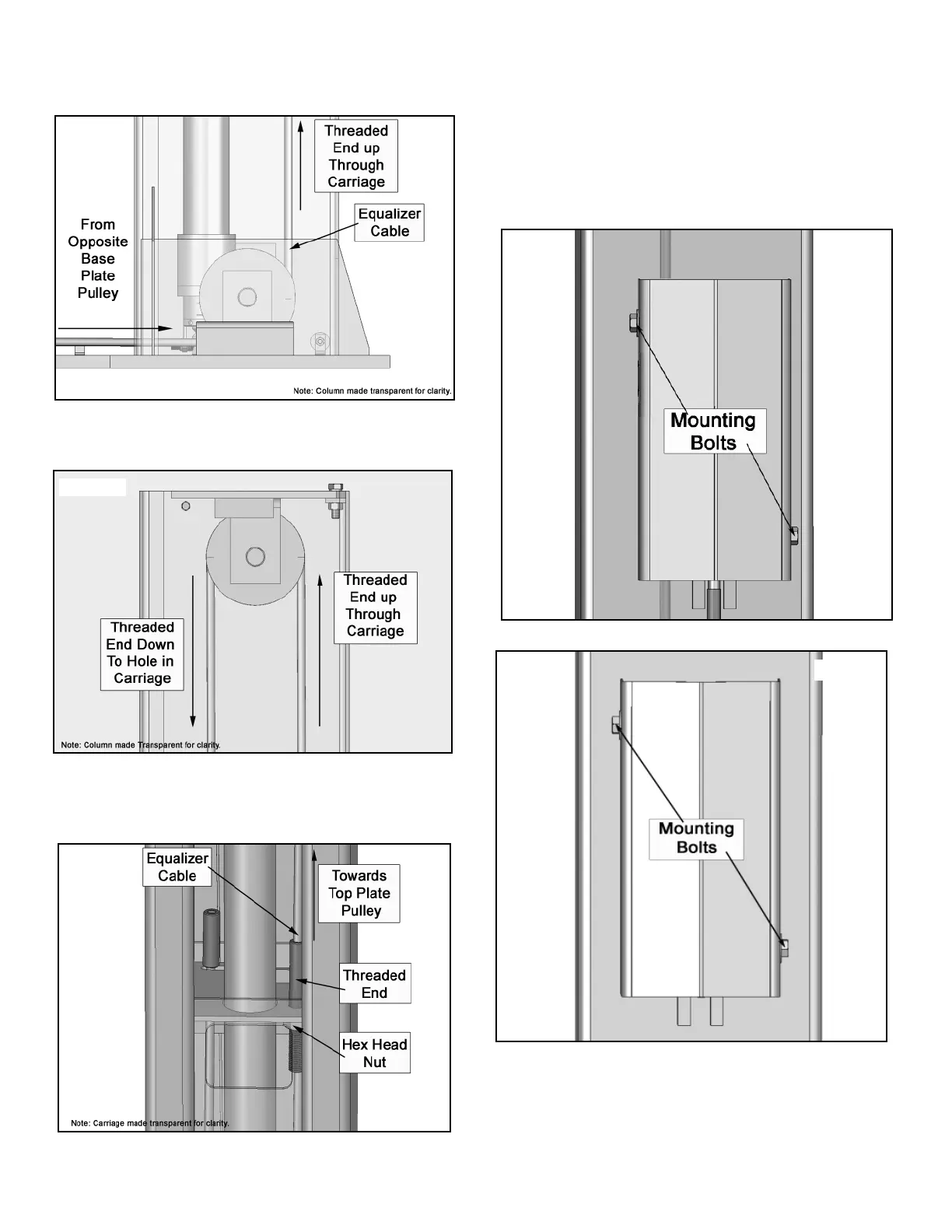

3. Route the Threaded End of the Equalizer Cable across
to the opposite side Base Plate Sheave( pulley) and up
through the Carriage. (See Fig. 10.2)
4. Route the Threaded end up and over the Top Plate
Pulley and back down to the Carriage. (See Fig. 10.3)
5. Run the Threaded End through the hole in the top of
the Carriage and secure with the Hex Head Nut until the
Cable is just taut. (See Fig. 10.4)
STEP 11
(Installing Powerside and Offside Safety Cover)
1. After Safeties have been adjusted and checked for
proper operation, install and tighten Powerside Safety
Cover and Offside Safety Cover mounting Bolts.
(See Fig. 11.1 and 11.2)
17
Fig. 10.2
Fig. 10.4
Fig. 10.3
Fig. 11.2
Fig. 11.1
