BendPak XPR-9FD - Page 27

27

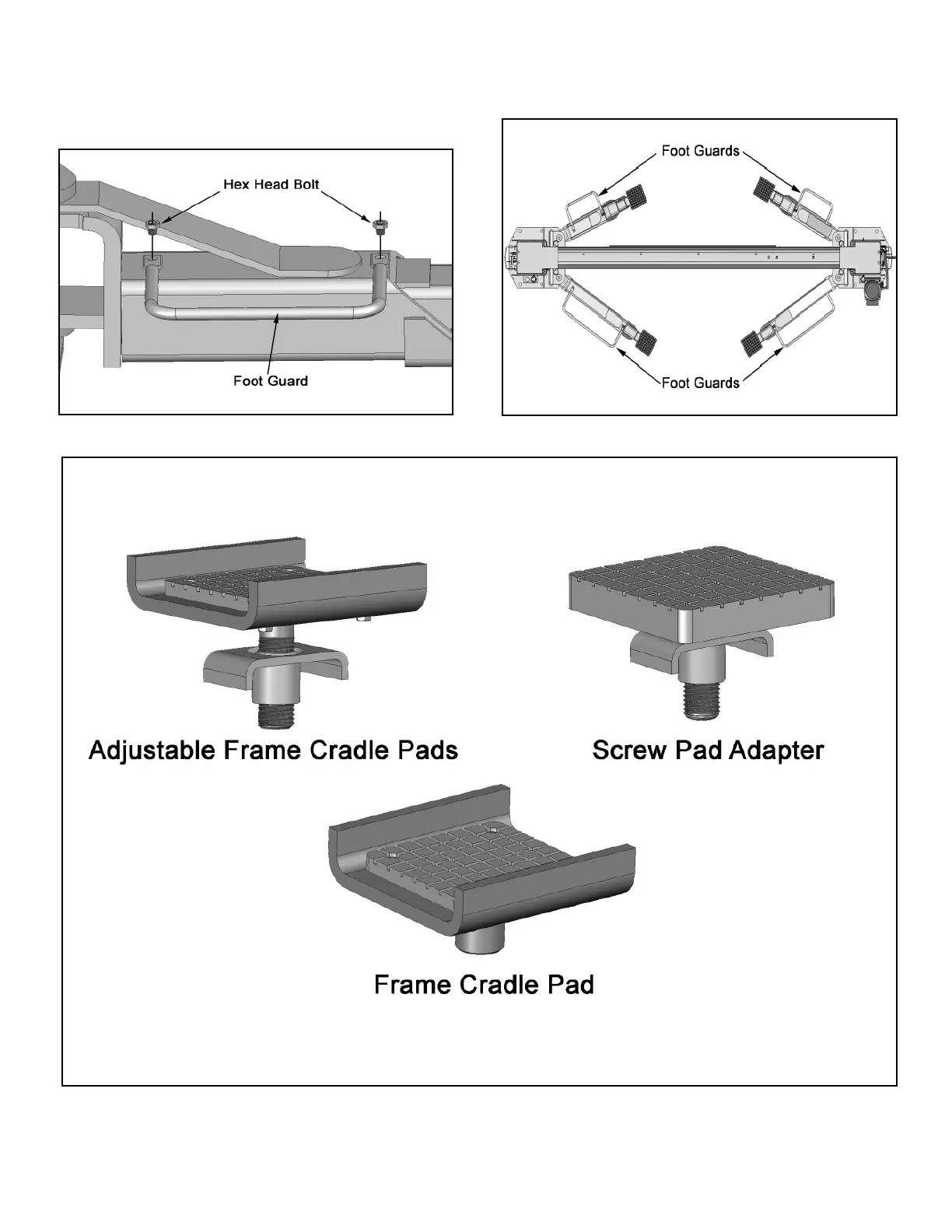

1. Install the Foot Guards to the outside of the 4 Lift Arm
Assemblies. Tighten the Hex Head Bolts. (See Fig 1-2)
OPTIONAL FOOT GUARD INSTALLATION
Optional Equipment available through your Authorized BendPak Dealer.
OPTIONAL CRADLE AND SCREW PAD ADAPTERS
Fig. 1
Fig. 2
