BendPak XPR-9FS - Page 50

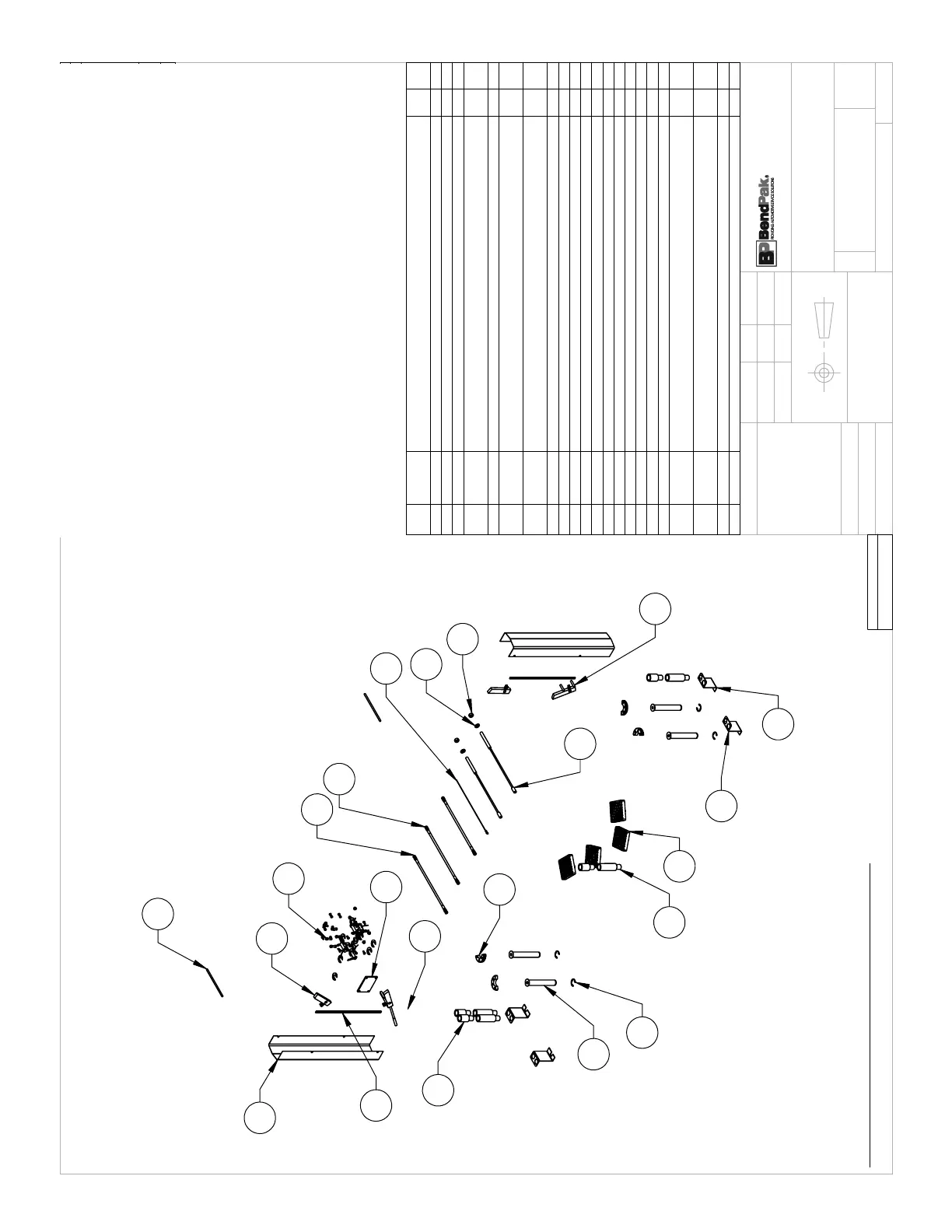

DIMENSIONS ARE IN MM
☺
17
18
4
5
10
2
1
3
15
16
14
12
6
7
13
8
9
19
20
21
11
22
NEXT ASSEMBLY
5260045
ITEM
NO.
PART
NUMBER
DESCRIPTION
QTY
REV
1 5174215
XPR-9FS SERIES PARTS BAG
1
C
2 5215250
MD-6XP, ALL XP/XPR SLIP ON LIFT PAD ASSEMBLY
4
B
3 5701214
XPR-9FS SERIES SAFETY CLOSEOUT COVER
2
A
4 5746390
XP/XPR/RJ/MX/MD-6XP SHORT LIFT PAD EXTENSION
(113mm LG.)
4
A
5 5746395
MX/XP/XPR LONG LIFT PAD EXTENSION (182mm LG.)
4
A
6 5570104
XP/XPR-9F, XPR-9FS HYDRAULIC HOSE ASSY Ø6.35 x
2985mm DS
1
A
7 5570103
XP/XPR-9F, XPR-9FS HYDRAULIC HOSE ASSY Ø6.35 x
1359mm DS
2
B
8 5595148
XPR-9FS EQUALIZER CABLE ASSY Ø10 x 8935mm
2
A
9 5595149
XPR-9FS Ø2.4mm x 6070 SAFETY CABLE
1
A
10 5505116
MX-10, XPR-9/10 LIFT HEAD PIN WELDMENT
4
A
11 5540129
E RING Ø38mm OD
4
A
12 5715003
POWER UNIT VIBRATION DAMPENER
1
B
13 5731121
XPR-9FS SERIES SAFETY LINKAGE BAR
2
B
14 5600370
XPR-9FS SERIES SAFETY WELDMENT #1
1
B
15 5600372
XPR-9FS SERIES SAFETY WELDMENT #3
2
B
16 5600371
XPR-9FS SERIES SAFETY WELDMENT #2
1
B
17 5545342
WASHER M18 FLAT
2
-
18 5535358
NUT M18 x 2.5 NL
2
-
19 5730664
XPR-7TRF, XP/XPR-9/10 POST ASSEMBLY LIFT HEAD FOOT
GUARD L.H.
2
A
20 5730663
XPR-7TRF, XP/XPR-9/10 POST ASSEMBLY LIFT HEAD FOOT
GUARD R.H.
2
A
21 5736171
MX, XPR-9/10 BOLT ON ARM RESTRAINT GEAR
4
B
22 5746167
DOUBLE THREADED ROD M10 x 1.5 x 270
2
A
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
B
800208 REPLACED WITH 5746395, 800325 WITH
5570104, 800750 WITH 5505116, AND 5535025
WITH 5535358, ADDED 5540281, REMOVED
5210154 AND 5575111, UPDATED BOM
REVISIONS
02/17/2010
TM
00293
C
ADDED 5746167, REPLACED 5540281 WITH
5540129, UPDATED BOM REVISIONS
04/12/2010
TM
00346
D
UPDATED BOM REVISION
04/30/2010
AC
00350
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC
5250134
XPR-9FS PARTS BOX
---
---
11/20/2009
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
TM
05/31/2010
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
50
