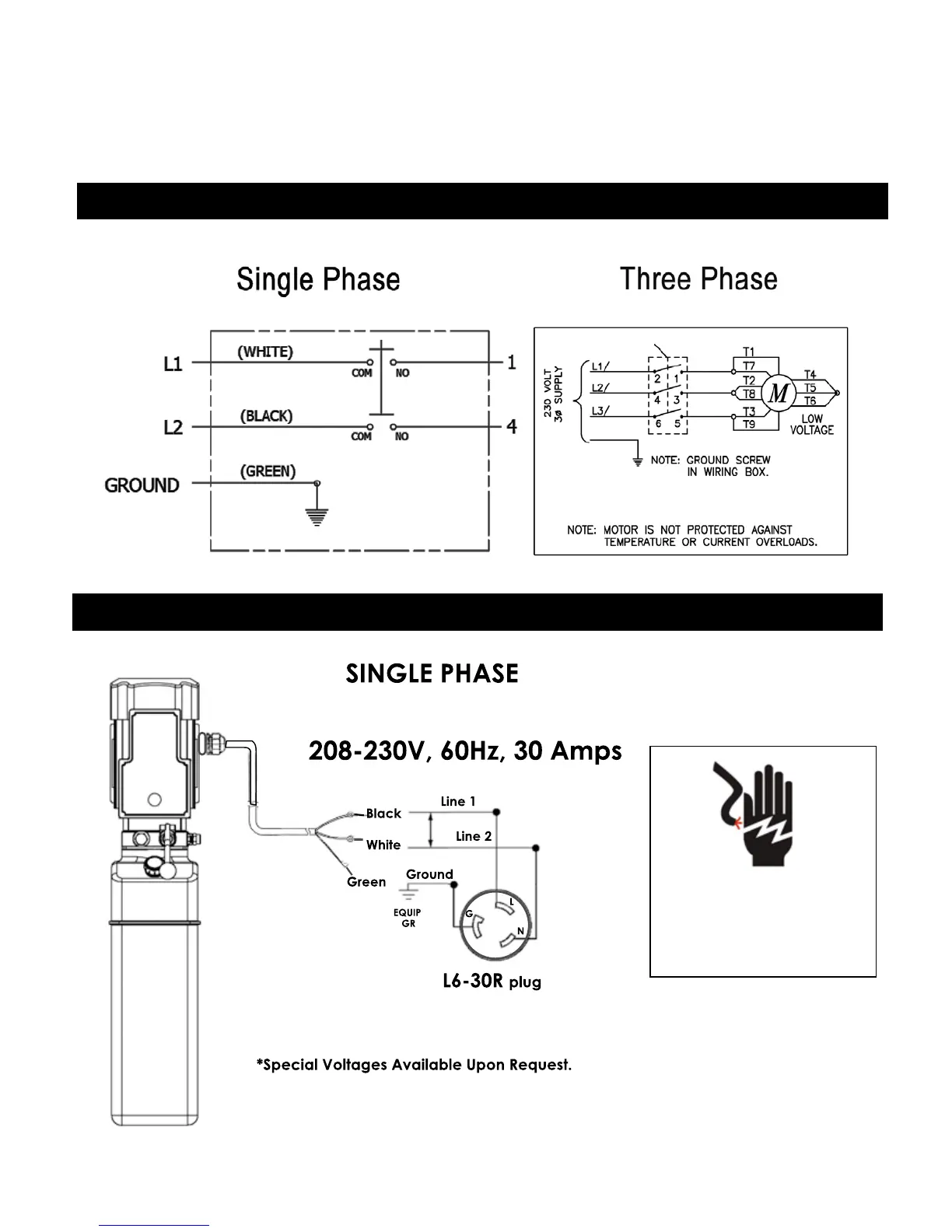

POWER-UNIT CONNECTION
Green
EQUIP
GR
G
208-230V, 60Hz, 30 Amps
SINGLE PHASE
L
N
Ground
L6-30R
plug
*Special Voltages Available Upon Request.
Line 1
Line 2
White
Black
Guard against electric shock.
Never connect the green power
cord wire to a live terminal.
This is for ground only.
ALL WIRING MUST BE PERFORMED BY A CERTIFIED ELECTRICIAN ONLY.
SEE WIRING INSTRUCTIONS AFFIXED TO MOTOR FOR PROPER WIRING INSTRUCTIONS.
