The dispenser must be mounted on a concrete foundation. Do not pour concrete around the product
pipes or electrical conduit. The use of a UL approved containment sump designed for the Bennett
Dispenser Model used is highly recommended. Follow the containment sump manufacture’s installation
instructions for proper installation. If no containment sump is used, fill the sump area with clean sand or
dirt as far up the product pipe as possible once installation is complete. Use water to pack the sand in

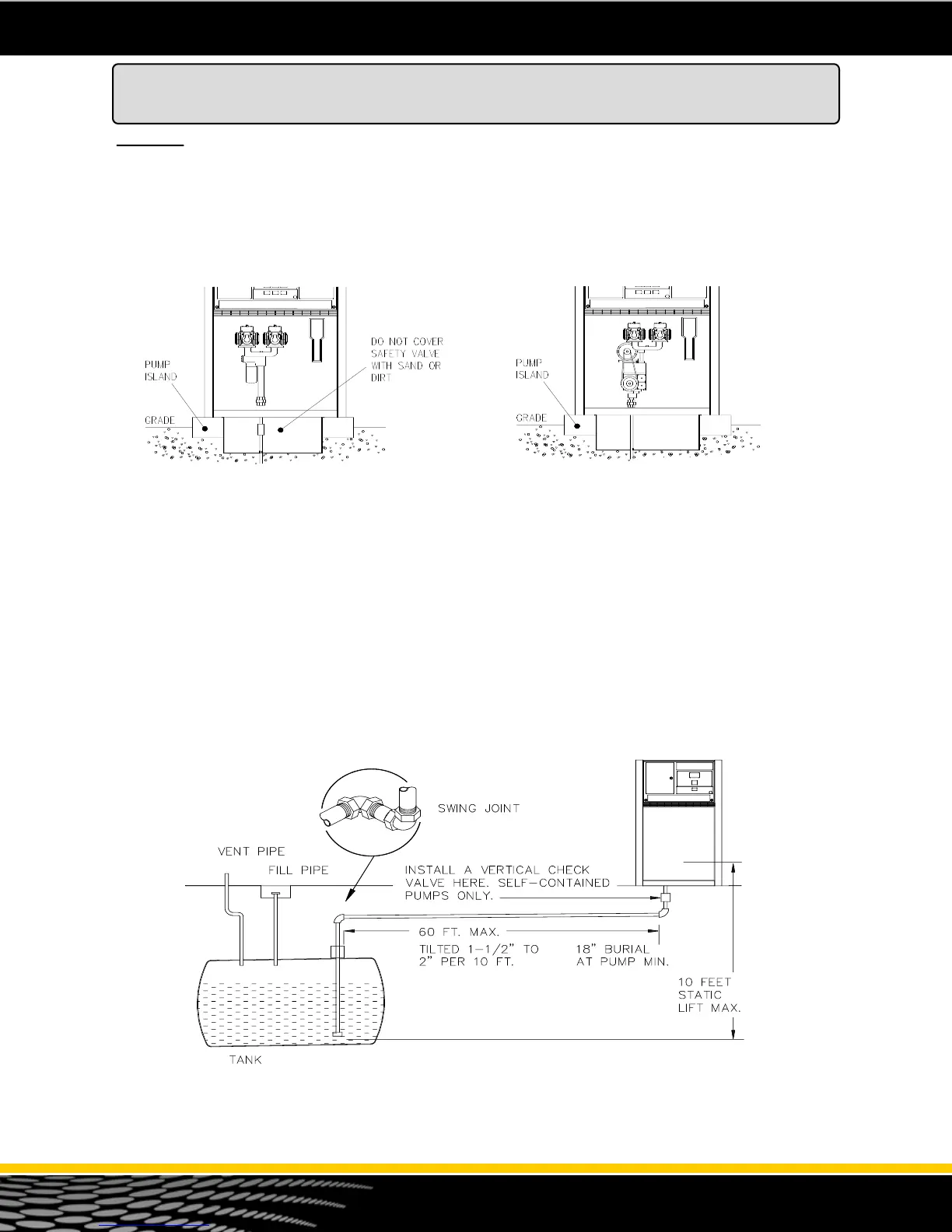

place (see figure 11 and figure 12) .
Figure 11 - Example of Remote Figure 12 - Example of Self Contained
NOTE: All piping must be clean of foreign debris, such as: oil, grease and shavings. All
connections must be tight to prevent leaks.
Swing joints or flex pipe must be used at the ends of the horizontal pipe between the dispenser and the
tank (see figure 13). These joints prevent leaks which might develop through ground movement from
settling of the tank, frost heaving of the ground or pump island settling. The joint under the dispenser
also aids proper alignment of the product union or coupling.
Figure 13 - Underground Piping
Pipelines and Underground Containment Sumps
NOTE: Please refer to PEI/RP100 Recommended Practices. The installation must conform to
EPA, NFPA, and State regulations for underground storage tanks.
*Acceptance Varies by State*
