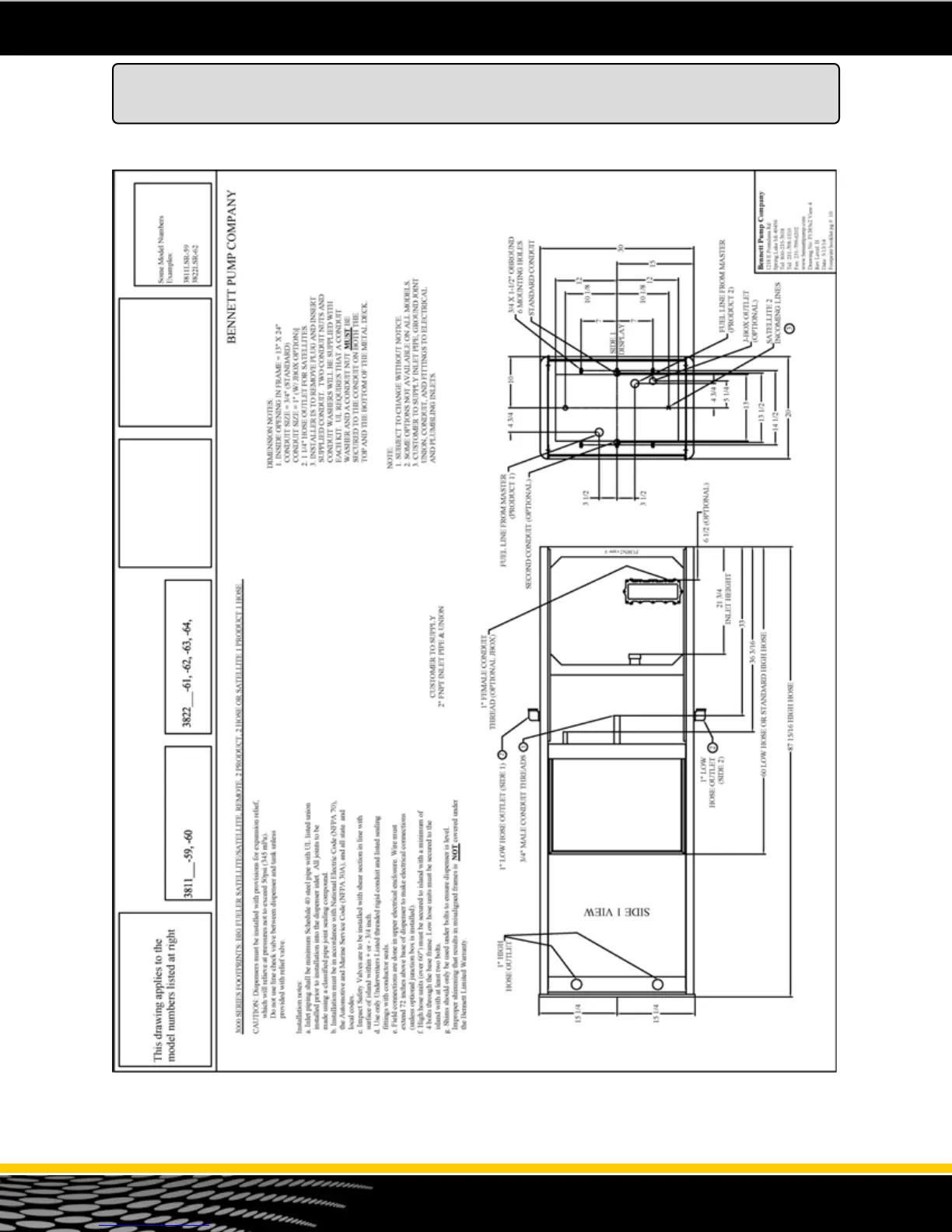

Bennett 3712 - P1385 S2 View 4 - Remote 2 Product 2 Hose or Satellite 1 Product 1 Hose

66
120001 Rev K 1-19-18
3000 Series Footprint Drawings
Big Fueler Satellite - Remote 2 Product 2 Hose or Satellite 1 Product 1 Hose
Note: Drawing schematic P1385s2 View 4 (Part Number 110226) can be found on the USB provided.
