34
120001 Rev K 1-19-18
Row 1
Row 2
Row 3
Row 4
Address 1 -
No Jumpers
Address 12
Address 16 Address 15 Address 14 Address 13
Address 6 Address 5 Address 4 Address 3
Address 2
Address 7 Address 8
Address 9
Address 10 Address 11

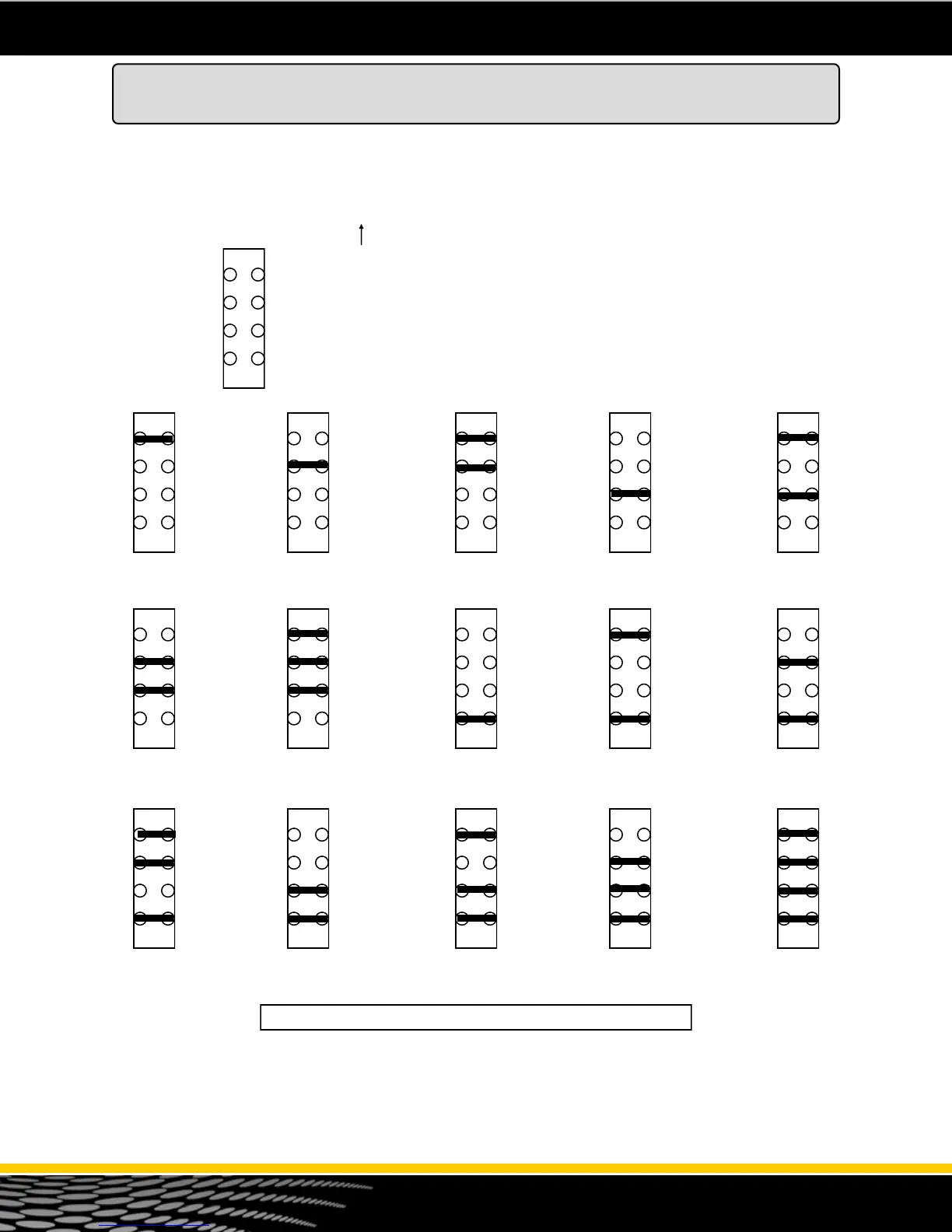

Setting the Fueling Point Address using jumpers on
jumper header JP1 top right corner of the CPU/
Control Board. The dark line indicates the shunt
jumper installed.
Jumper Header JP1 on the CPU board is used to program the dispenser and to set the hose position
address. The first 4 rows are used to set the hose position address. Addresses from 1-16 are available.
Figure 24 shows how to set the address using the first four rows of the Jumper Header.
Figure 24 - Jumpers 1 through 4. Setting the Fueling Point Address.
JP1 header - First four rows - Top of Board
CPU Board Jumper Configuration
