82
120001 Rev K 1-19-18

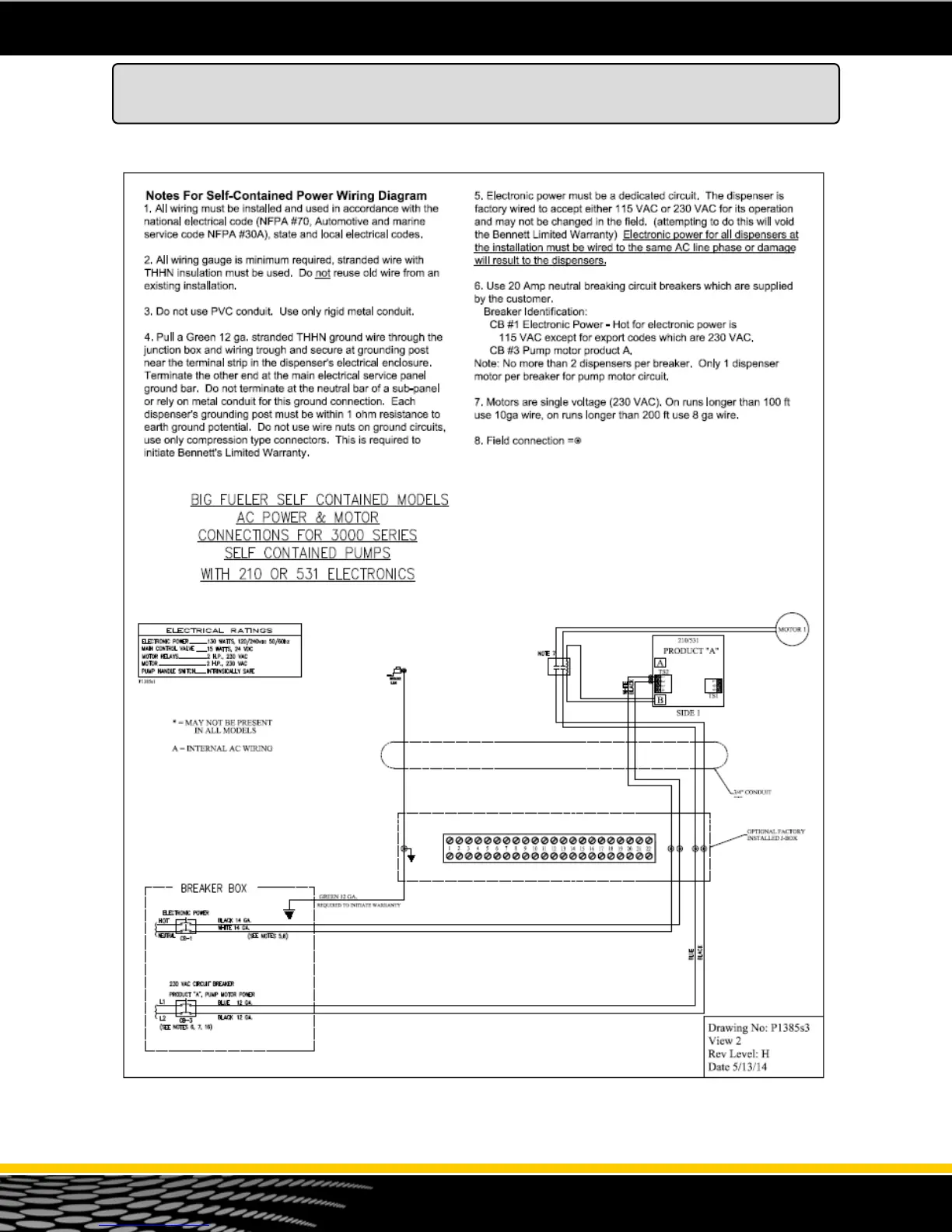

Self Contained Power Wiring Diagram
Big Fueler Self Contained Models AC Power & Motor Connections for 3K Series
Note: Drawing schematic P1385s3 View 2 (Part Number 110226) can be found on the USB provided.
