3000 Series Retail Operators Manual 108796 Rev C, 07/05
How to Read Electronic Totals
Menu Code 1
This menu code allows the manager to read the electronic non-resettable hose totals that accumulate in the dis-
penser for money, volume, number of sales, and number of price changes.
To read the electronics totals for the hose position, follow this procedure:
1. Plug the Managers Keypad into the J3 connector on the CPU board.
2. Press and hold the “Clear” and “Enter” button simultaneously for 3
seconds until you see “Code 00” on the display. Press “1” and
“mode” See Figure 1.
3. You will see the current dollar amount in the non-resettable electronic
totals. See Figure 2. The top line on the display represents the 6 Most
Significant Digits and the bottom lines shows the 5 Least Significant
Digits. In this example, the total dollar amount for this hose is
$1,149.01.
4. Press the “Enter” button and you will see the current volume amount in
the non-resettable electronic totals. See Figure 3. The top line on the
display represents the 6 Most Significant Digits and the bottom lines
shows the 5 Least Significant Digits. In this example, the total volume
amount for this hose is 1,032.490 volume units (gallons in the United
States).
5. Press the “Enter” Button and you will see the number of sales since the
dispenser was started up. See Figure 4. In this example it shows 8 sales
since the dispenser was brought into service.
6. Press the “Enter” button and you will see the number of price changes
since the dispenser was started up. See Figure 5. In this example it
shows 4 price changes since the dispenser was brought into service.
7. To exit the “Electronic Totals” mode press “Clear” and then “Clear”
and “Enter” buttons simultaneously to return to the normal sales dis
play.

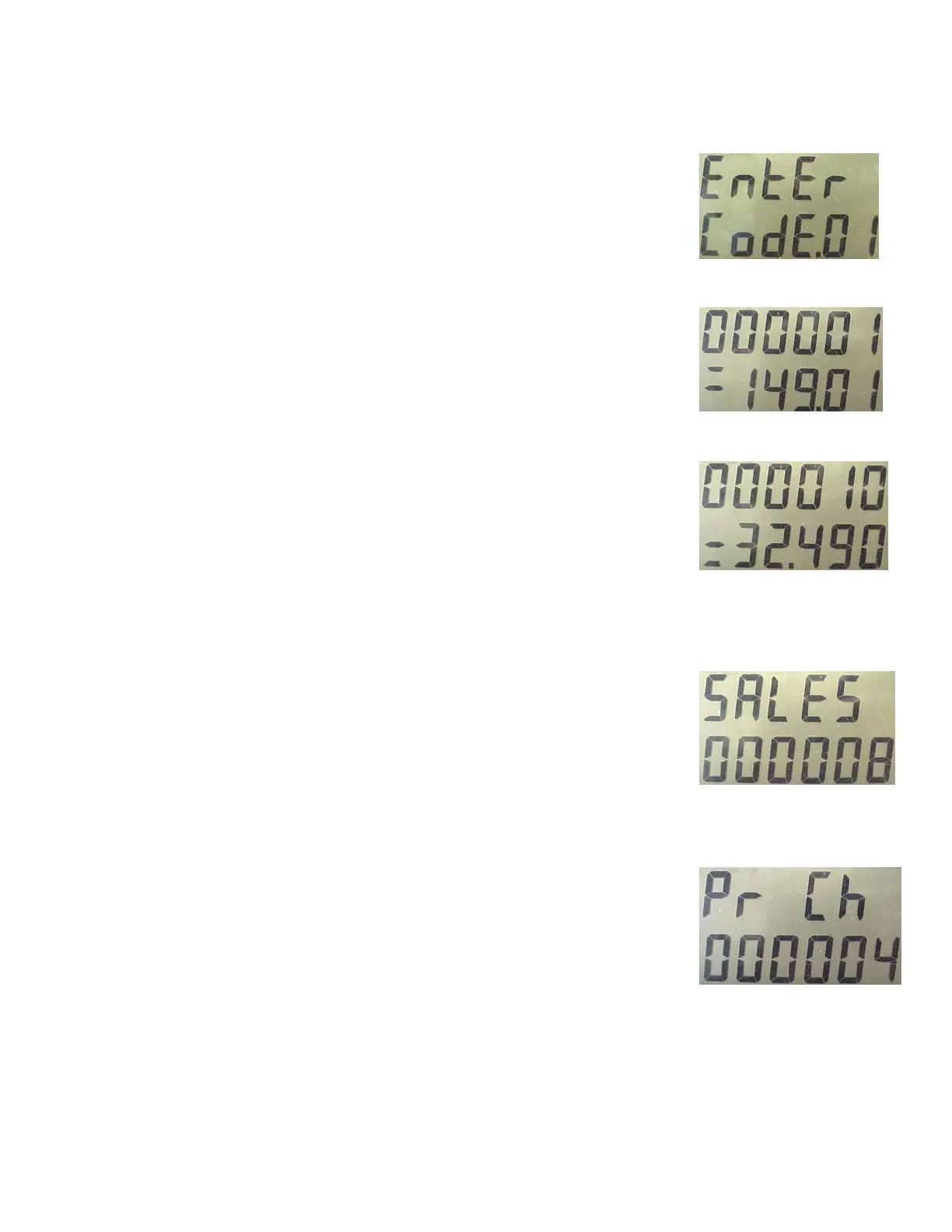

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
