BenQ LW855UST - Projector Exterior View

English
11
Introduction
Projector exterior view
2
4
9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
8
21
8 8
22

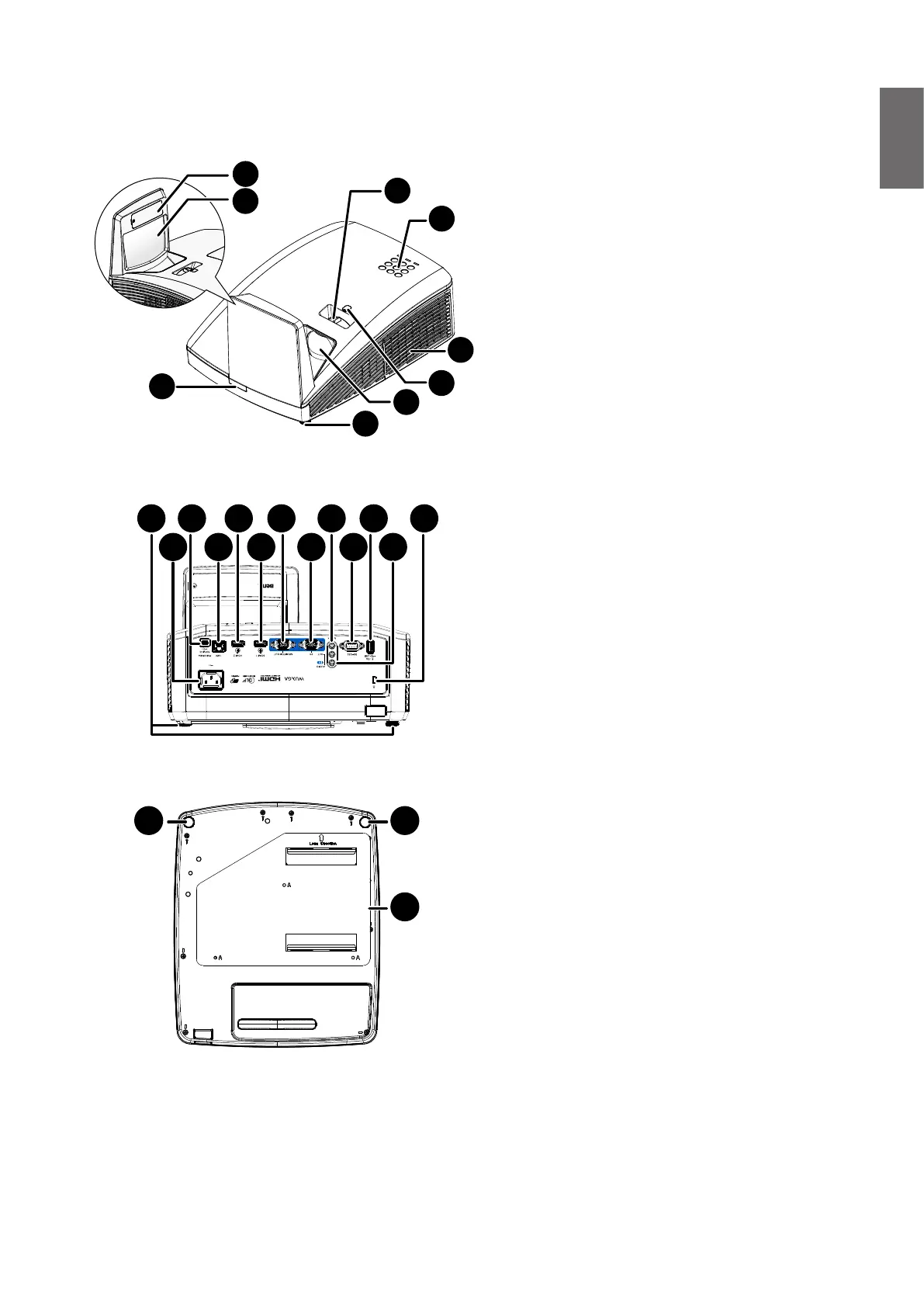

1. PointWrite dummy cover
(Optional PointWrite kit)
2. Mirror
3. Focus ring
4. External control panel
(See "Projector & Remote control" on
page 12 for details.)
5. Vent (cool air intake)
6. Lens shift
7. Projection lens
8. Front adjuster foot
9. Front IR remote sensor
10. AC power cord inlet
11. PointWrite SERVICE port
(PointWrite kit is required)
12. RJ45 LAN input jack
13. HDMI-2 input jack
14. HDMI-1 input jack
15. MONITOR output jack
16. PC input jack
17. MIC input jack
18. RS-232 control port
19. USB Type A (1.5A)port
20. AUDIO IN/OUT jack
21. Kensington anti-theft lock slot
22. Wall mount plate
