8 Introduction

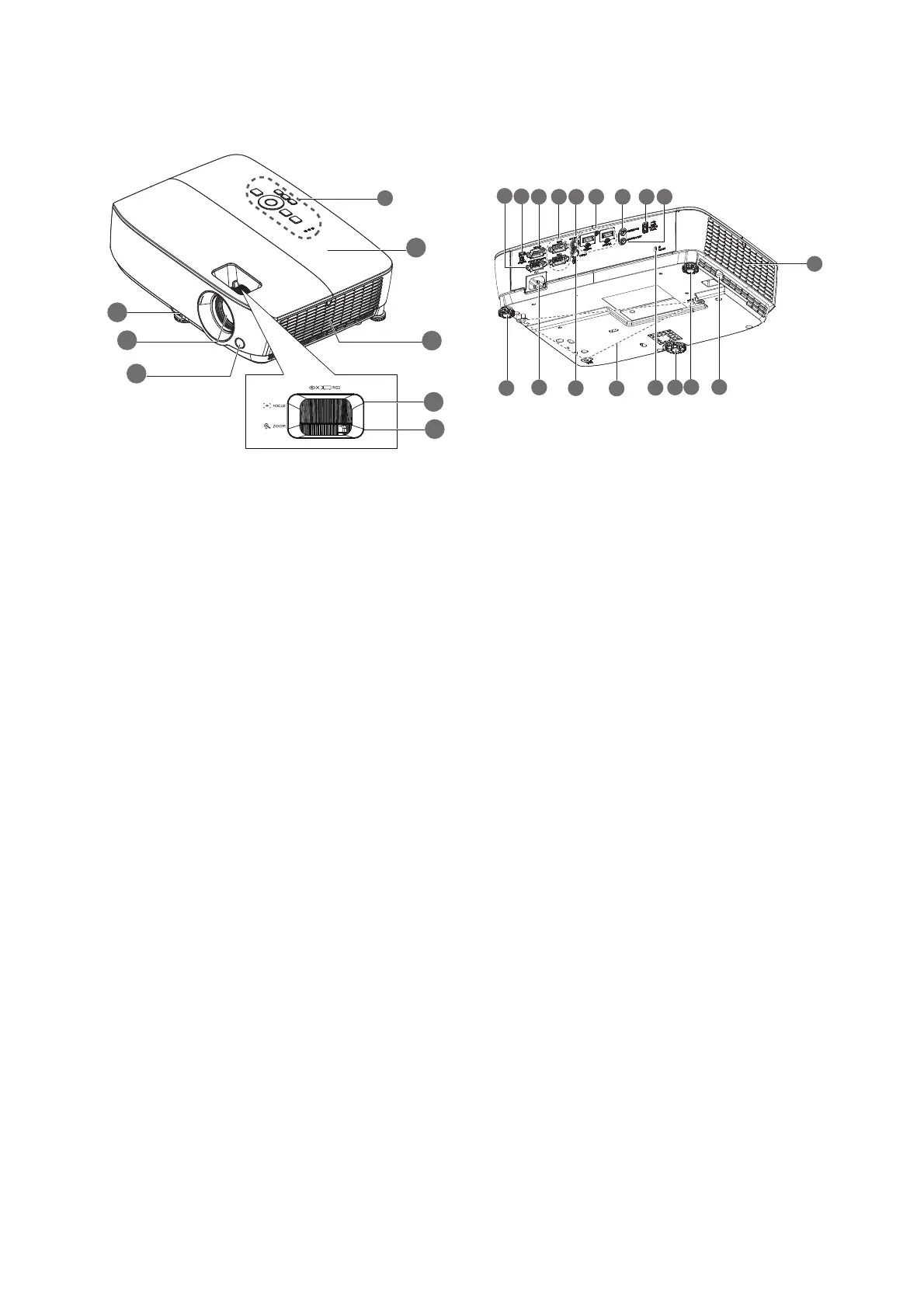

Projector exterior view
1. External control panel
(See Projector & Remote control on page 9
for details.)
2. Lamp cover
3. Vent (air inhale)
4. Focus ring
5. Zoom ring
6. Front IR remote sensor
7. Projection lens
8. Quick-release lever
9. RGB signal output jack
10. USB mini-B input jack
11. RS-232 control port
12. RGB (PC)/Component video (YPbPr/ YCbCr)
signal input jack
13. S-Video input jack
14. HDMI input jack
15. Audio input jack
16. USB Type A port
17. Audio output jack
18. Vent (heated air exhaust)
19. Security bar
20. Rear adjuster foot
21. Front adjuster foot
22. Kensington anti-theft lock slot
23. Ceiling mount holes
24. Video input jack
25. AC power cord inlet
1
2
9
3
4
5
6
7
8
11 12 13 14 15 16 17
10
18
1920
21
20
22
23
24
25
